4-14
(2) Remove the screws (five M4 screws)
holding the receiver in place and remove
the cables connected to the receiver, then
replace the receiver.
(3) Transfer the metal fitting from the removed
receiver to the replacement receiver and fit
the receiver into the casing.
After having replaced the receiver,
reassemble the unit by following the
disassembly procedure in the reverse order.
Do not forget to tighten the bolts and screws,
and do not forget to reconnect the cables.
[Operation check]
After having completed the replacement, follow the procedure below to check the
operation.
(1) Turn on the radar and emit radar waves once the countdown is finished, and
check that the radar image is correctly displayed. Transmit radar signals on a long
range and open the service engineer menu to adjust the tuning. Perform the
adjustment in the service engineer menu until the tuning display bar on the display
unit reaches the eighth calibration mark.

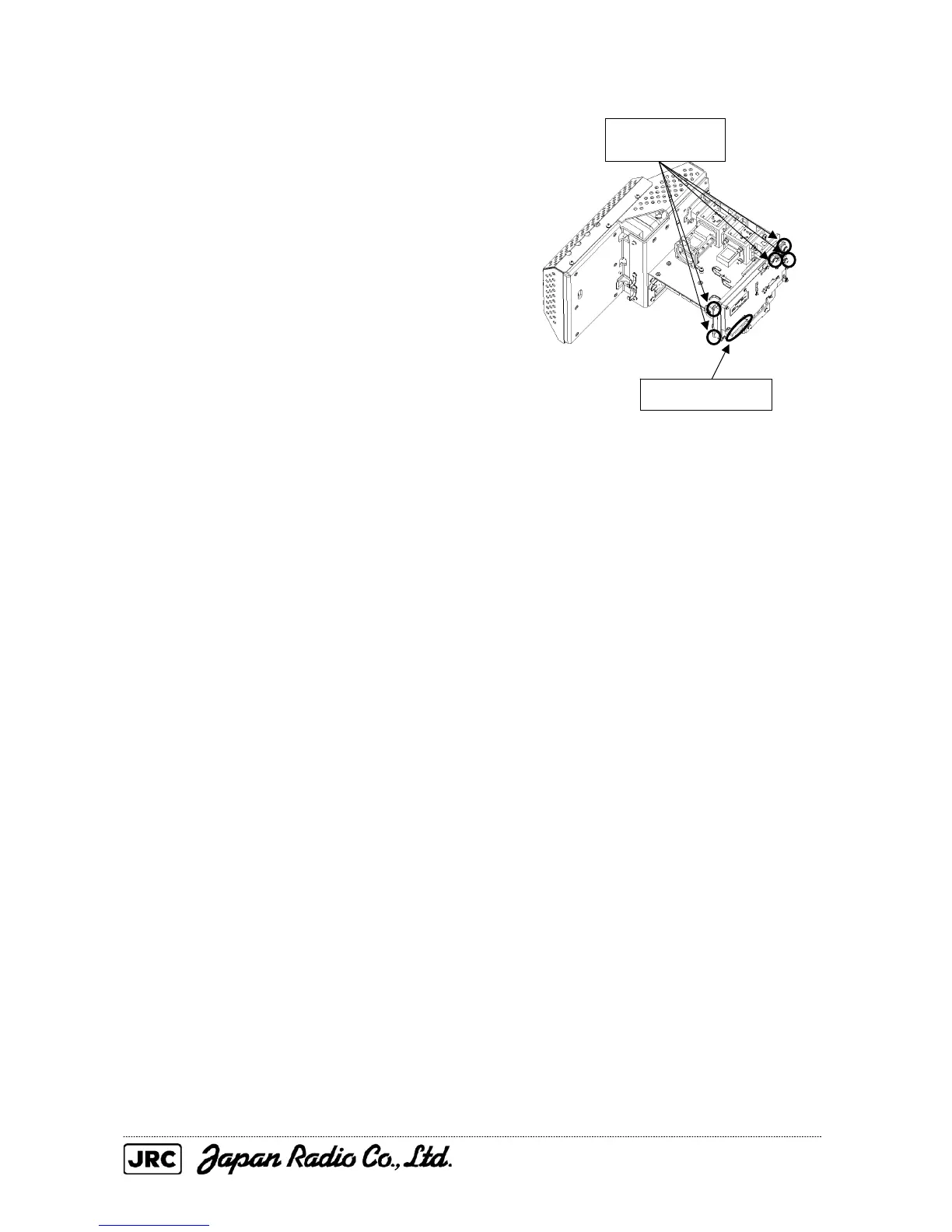

Remove the five
screws.
Remove the cable.
To Next Page
