4-33

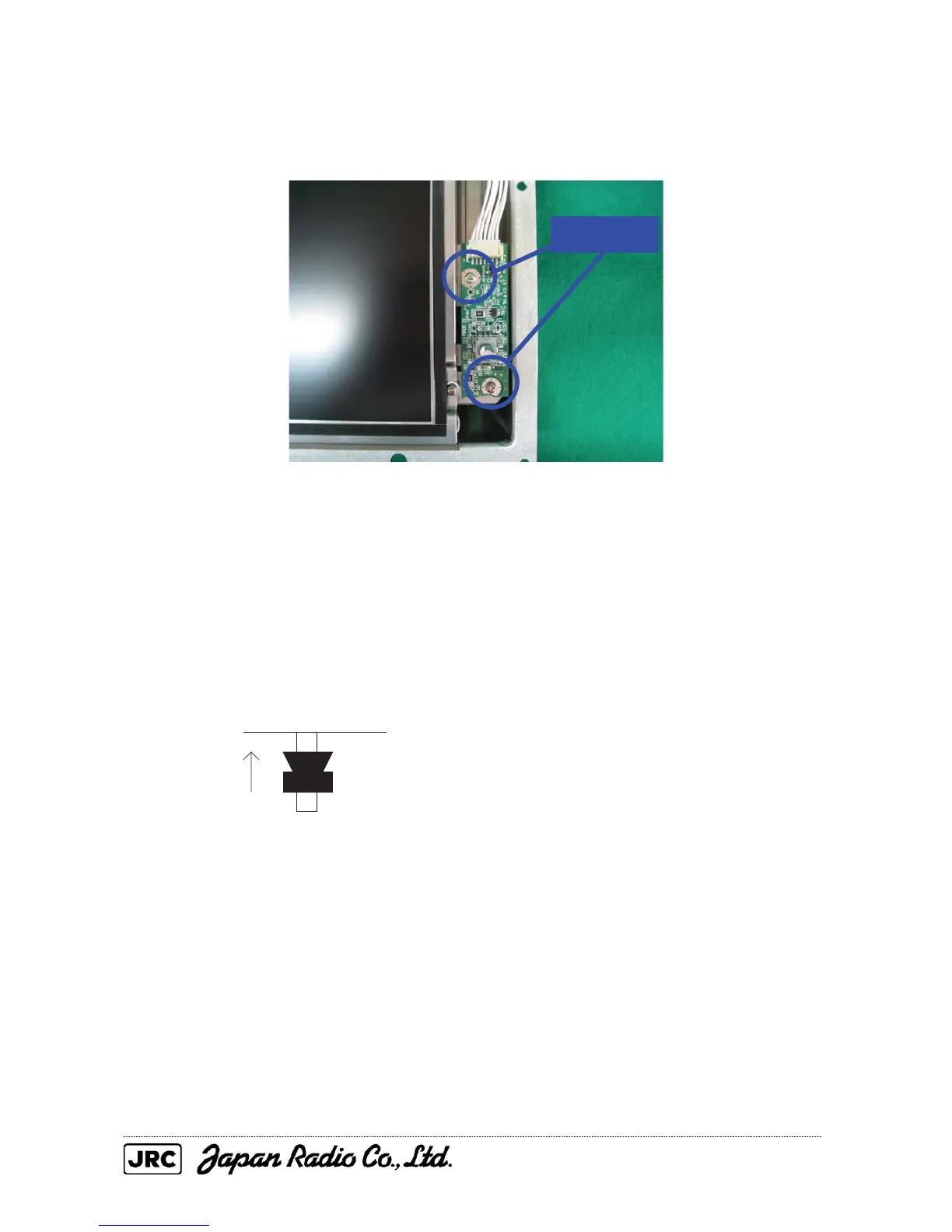

(3) Disconnect the cables, remove the two screws, and remove the brilliance control
circuit CCK-970 (TCH-002R). (Phillips screwdriver for 3 mm screws)
[Mounting]
(1) Mount the circuit.
(2) Connect the cables, and mount the front panel.
(3) Mount the rubber bushing on the shaft of the control.
Mounting direction
(4) Insert and secure the control, checking how it turns and if you can feel the reaction
(clicking) of the control when pressing it.
[Operation check]
(1) Check that the control turns smoothly.
(2) Confirm that you feel the reaction (clicking) of the control when pressing it.
(3) After the replacement, start the equipment, and check that images are displayed
normally.
(4) Brightness can be controlled in the whole range (from the minimum to maximum) by
turning the brilliance control.
Remove
To Next Page
