(3) Remove the metal fitting and gear wheel
from the old encoder, mount them on the
new encoder, and install the encoder in the
chassis.
(4) After the encoder replacement, carry out
the work in reverse order of removal.
Be sure to tighten all the bolts and
screws and connect all the cables.
[Operation check]
After completing the replacement work, check the operation by following the
procedure below.
(1) Turn on the radar, transmit radar signals when the countdown is finished, and check
that radar images are displayed normally. At this time, open the service engineer
menu and adjust the bearing.

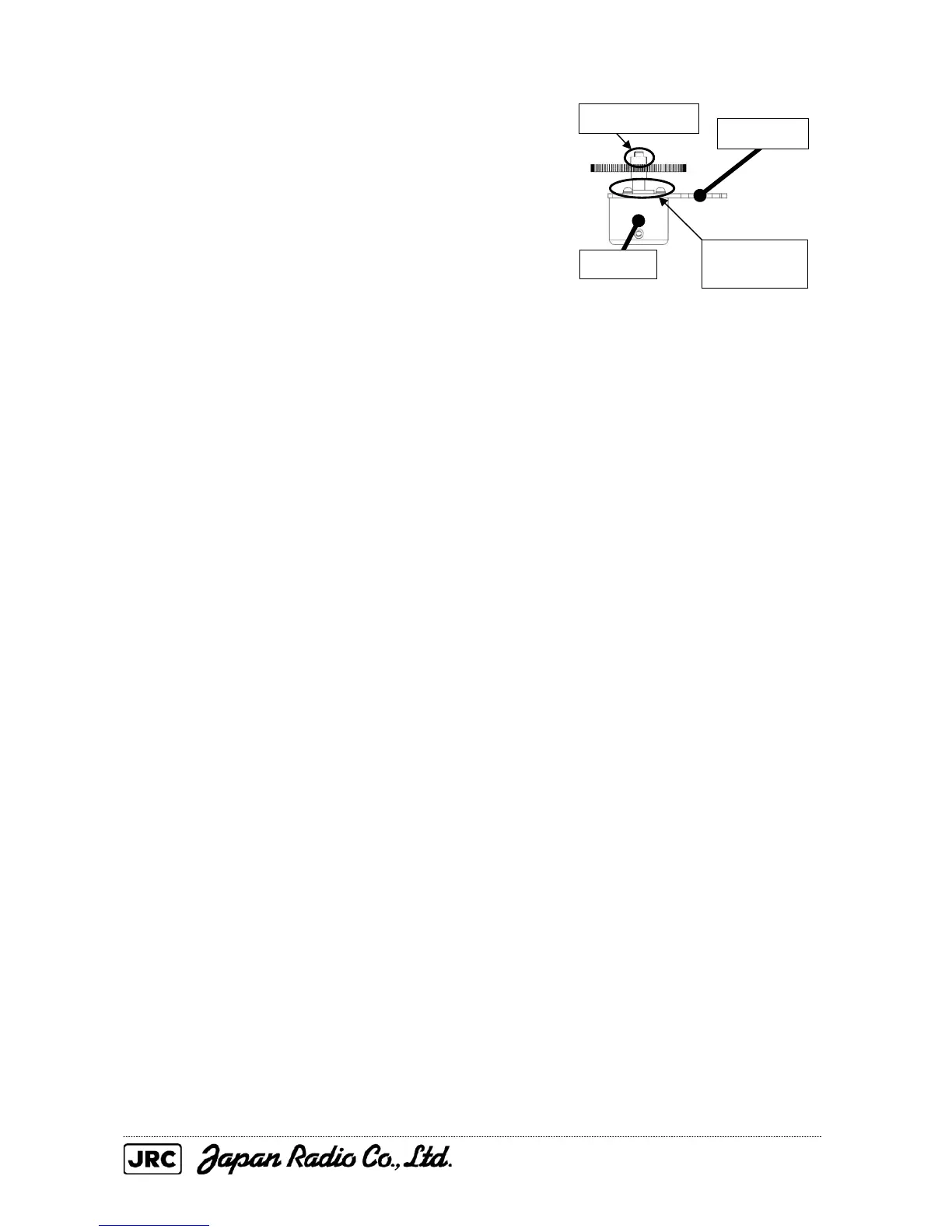

Remove the nut.
Metal fitting
Encoder
Remove the
three screws.
To Next Page
