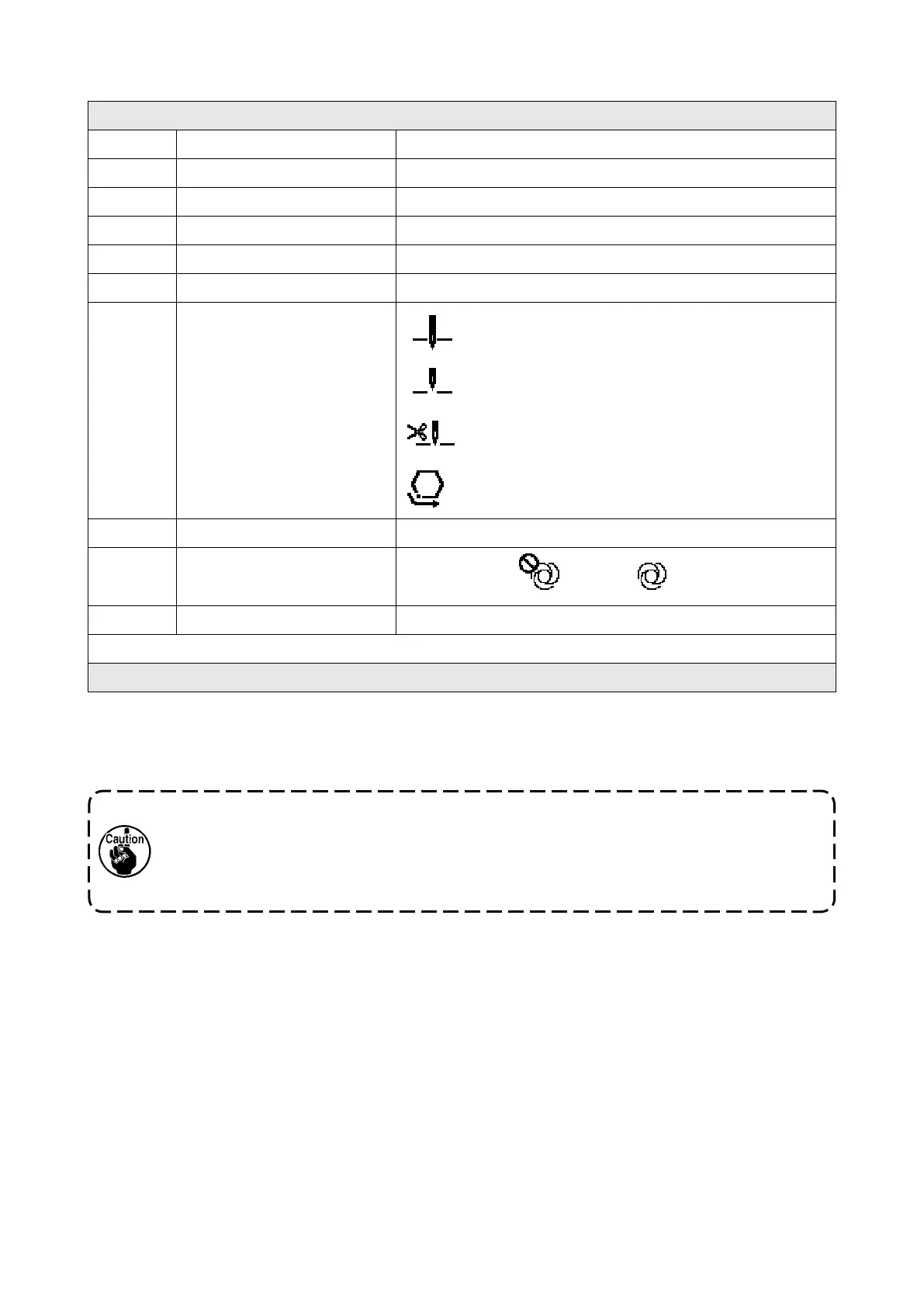

(2) Setting items for the polygonal-shape stitching steps
Step 1
Item name Input range
S071 Number of stitches 1 to 2000
S072 Pitch -5.00 to 5.00 / Custom pitch No.1 to 20
S073 Thread tension 0 to 200
S074 Presser foot pressure -350 to 200
S075 Correction of feed dog height -4 to 8
S076 Stop position of needle bar
: Stop with the needle down
: Stop with the needle up
: Thread trimming
: Continuity
S077 Stop position of presser foot 0 to 15.0 mm
S078 One-shot
: OFF / : ON
S079 Limit on sewing speed 150 to U096
↓
Step 2
* Setting items and the input range are same as those of step 1.
* Step numbers can be set to Step 20.
After you have changed the setting, check to make sure that the feed dog does not come in
contact with the throat plate.
Be aware that the stitch pitch may change if you have changed the locus or the feed dog
height. It is, therefore, necessary to carry out trial stitching rst before using the machine
for production.
