4-1. Explanation of the sewing screen (when selecting a sewing pattern)
On the sewing screen, the shape and set values of the currently-sewn sewing pattern are displayed.
The display and button operation differ according to the selected sewing pattern.
Note that the sewing screen shows two different displays, i.e., the sewing pattern display and the count-
er display.
Refer to "4-3. Counter function" p. 56 for the description of the counter display.
There are two different screen display modes; i.e., <Operator mode> and <Maintenance personnel
mode>.
The mode can be changed over between the operator mode and the maintenance personnel mode by
simultaneously pressing
❶
and
❷
.

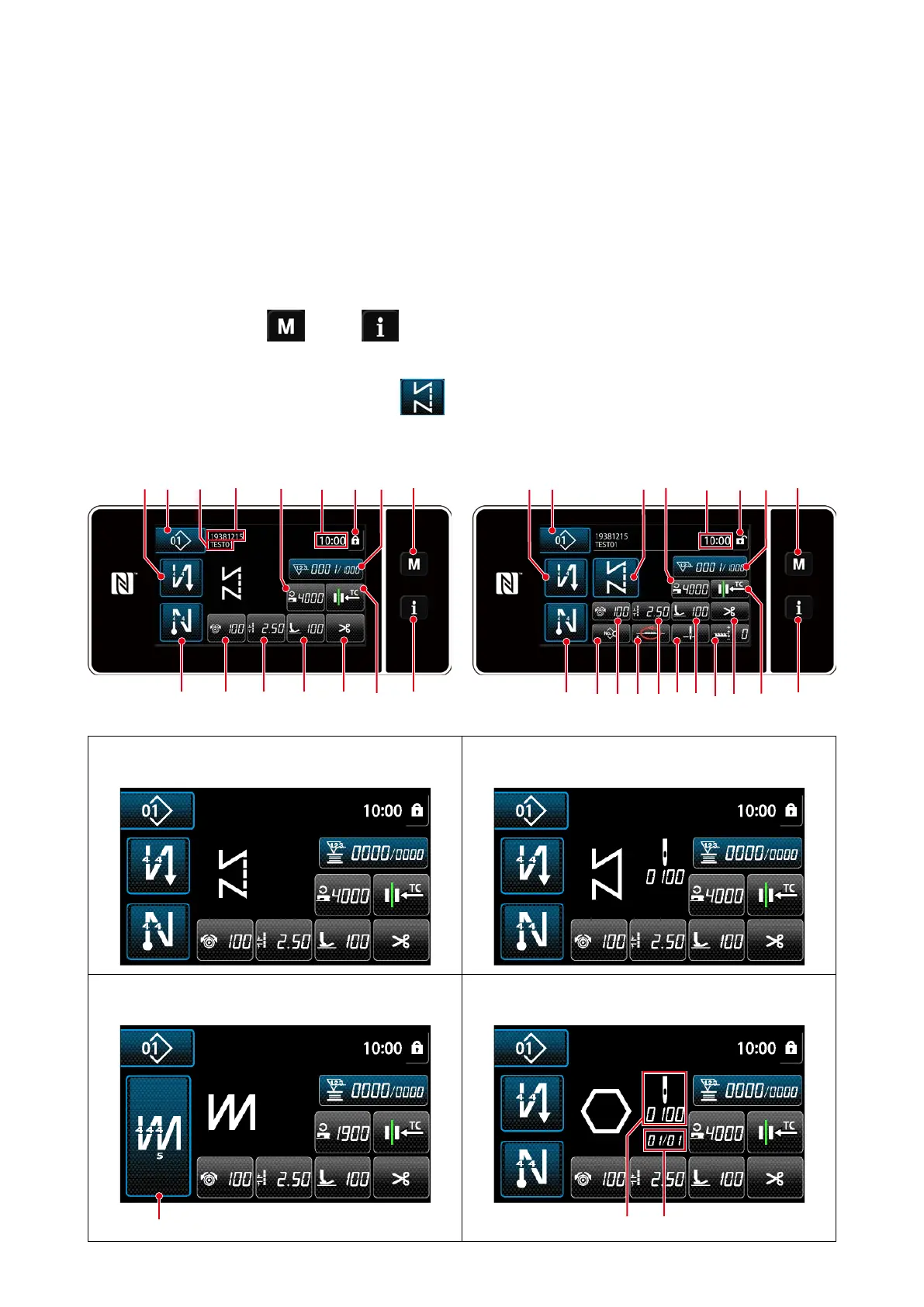

(1) Sewing screen (when selecting a sewing pattern)
A sewing pattern can be selected with
. Four different stitch shapes are available as
shown below.
Free stitching pattern
(Operator mode)
Constant-dimension sewing pattern
(Operator mode)
Multi-layer stitching pattern
(Operator mode)
Polygonal-shape stitching pattern
(Operator mode)
4. HOW TO USE THE OPERATION PANEL
❹ ❶❸
❷❻
❺ ❼❽ ❾
❹ ❶❸
❷❻
❺ ❾
<Operator mode>
<Maintenance personnel mode>
– 29 –
To Next Page
