Switch/display Description
❶
Mode key This switch is used for displaying the menu screen.
Level 1 is displayed by pressing this switch in the normal manner. Level 2 or
Level 3 is displayed by keeping this switch held pressed for three seconds or
more for the former or six seconds or more for the latter.
The mode is changed over between the operator mode and maintenance
personnel mode by pressing the Mode key and the Information key simulta-
neously.
❷
Information key This switch is used for displaying the information screen.
Level 1 or Level 2 is displayed by pressing this switch in the normal manner
for the former or by keeping it held pressed for three seconds or more for the
latter.
The mode is changed over between the operator mode and maintenance
personnel mode by pressing the Information key and the Mode key simulta-
neously.
❸
Sewing pattern No.
button
Sewing pattern list screen is displayed. The currently-selected sewing pattern
number is displayed on this button. (P01 – P99)
❹
Simplied screen
lock button
This is button is used for changing over the operation status of buttons dis-
played on the screen between enable and disable.
This button is used for displaying the simplied lock status of the screen on it.
Locked:
Unlocked:
Once the button operation is locked using the simplied screen lock button,
operation of the buttons displayed on the screen, excluding this button will be
disabled.

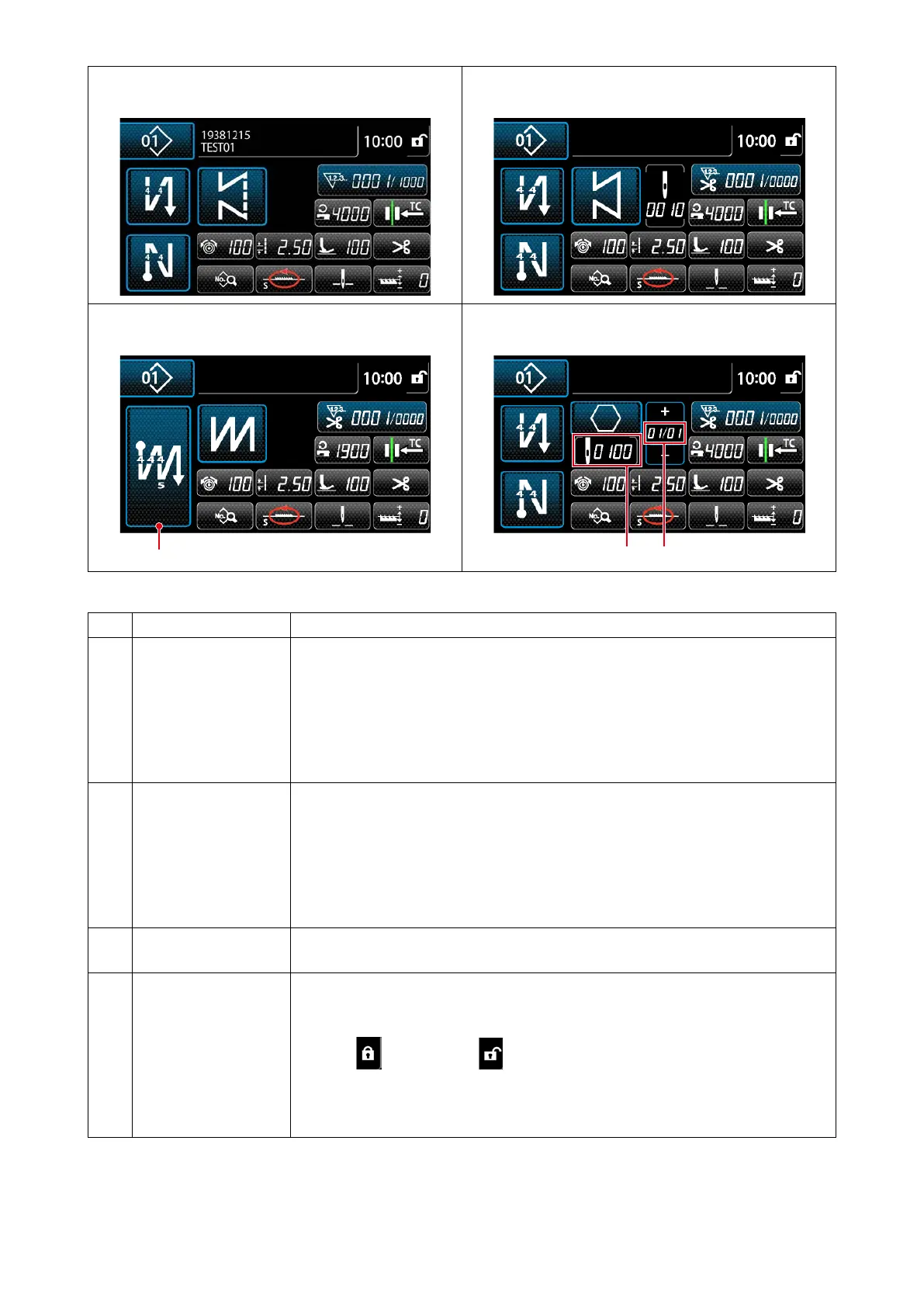

Free stitching pattern
(Maintenance personnel mode)
Constant-dimension sewing pattern
(Maintenance personnel mode)
Multi-layer stitching pattern
(Maintenance personnel mode)
Polygonal-shape stitching pattern
(Maintenance personnel mode)
