– 19 –

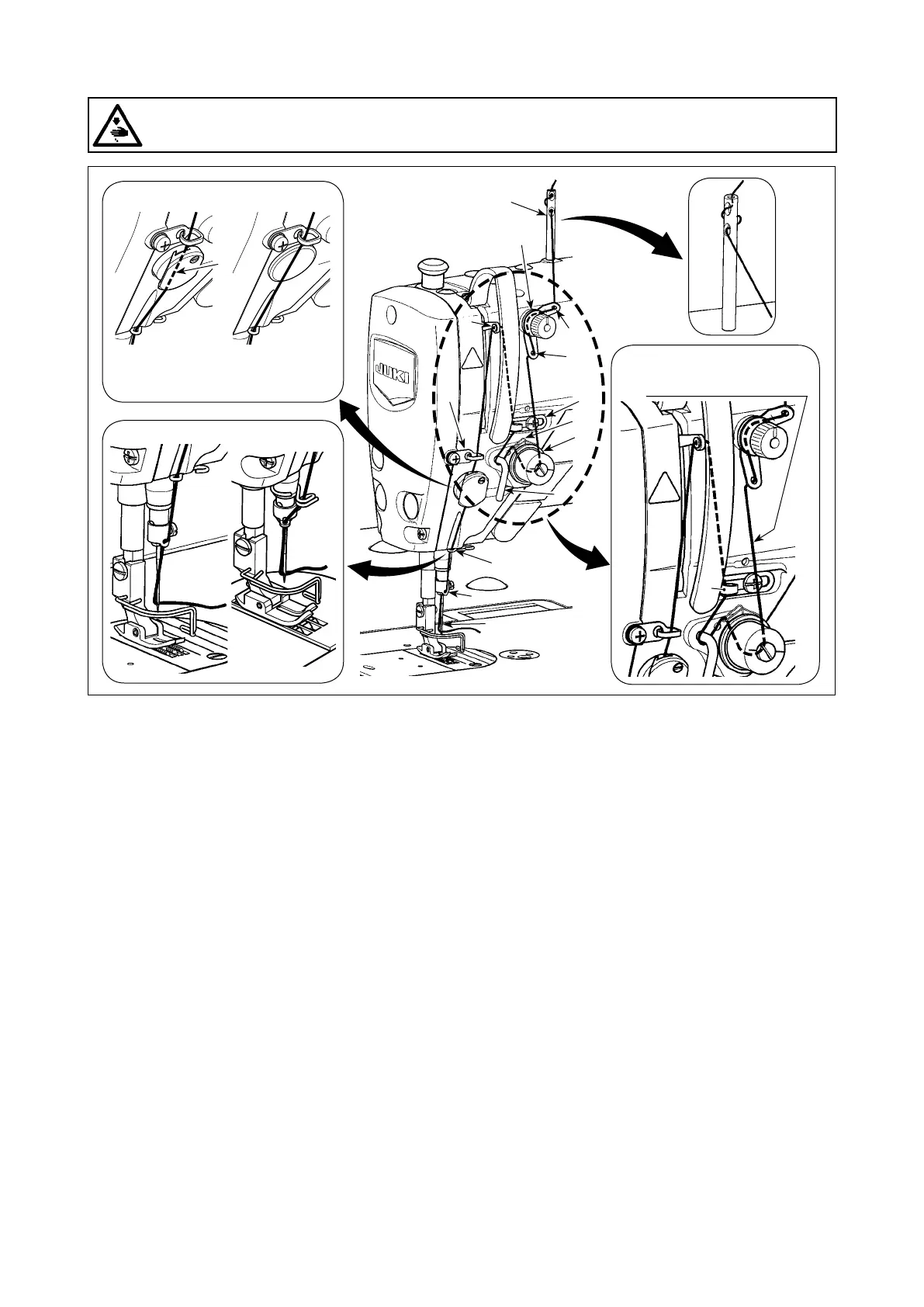

3-4. Threading the machine head
W
ARNING :
T
urn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
❶
❷
❺
❹
❸
❻
❼
❽
❾
(Note)
Do not pass this thread
through section
A
.
A
"S type"
"H type"
"NB type"
"0B type"
(Note)
Be sure to pass the thread
through the section
B
.
B
22
24
