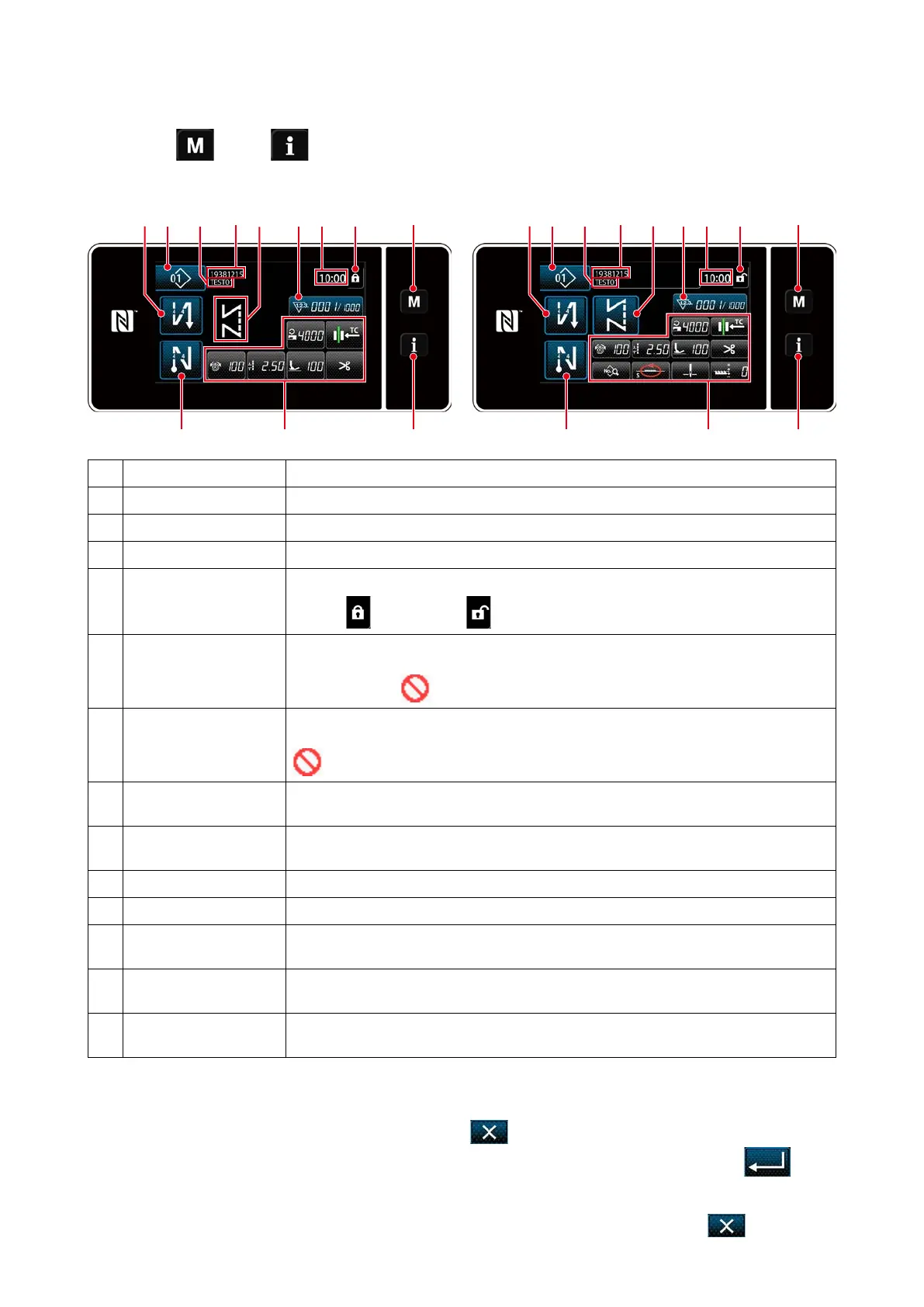

2-13-2. Names and functions of the panel keys
Switch/display Description
❶
Mode key This switch is used for displaying the menu screen.
❷
Information key This switch is used for displaying the information screen.
❸
Sewing pattern No. button This switch is used for displaying the number of the sewing pattern.
❹
Simplied screen lock
button
This button is used for displaying the simplied lock status of the screen on it.
Locked:
Unlocked:
❺
Sewing-start re-
verse-feed stitch button
This switch is used for changing the ON/OFF status of the reverse feed stitching at the
beginning of sewing. When reverse feed stitching at the beginning of sewing is placed
in the OFF state,
mark is displayed at the upper left of the button.
❻
Sewing-end re-
verse-feed stitch button
This switch is used for changing the ON/OFF status of reverse feed stitching at the end
of sewing. When reverse feed stitching at the end of sewing is placed in the OFF state,
mark is displayed at the upper left of the button.
❼
Part number In the case the part number/process display is selected with U404, the part number is
displayed. In the case the comment display is selected, the comment is displayed.
❽
Process/comment In the case the part number/process display is selected with U404, the process is dis-
played. In the case the comment display is selected, the comment is displayed.
❾
Clock display The time set on the sewing machine is displayed in this eld in 24-hour system.
󱢳
Sewing pattern display The selected sewing pattern is displayed in this eld.
󱢴
Customization button 1 A selected function can be allocated to and registered with this button. Initially, the
sewing counter has been factory-allocate and -registered.
󱢵
Customization buttons 2
- 7
A selected function can be allocated to and registered with this button.
󱢶
Customization buttons 2
- 11
A selected function can be allocated to and registered with this button.
* Conrmation of data
To change the pattern number, press Sewing pattern No. button
❸
.
Select the sewing pattern you want to use. Then, press
to conrm your choice.
For the setting items of the Memory switch or sewing pattern, change the target data and press
to
conrm the change.
After the setting data on the number of stitches of reverse-feed stitching or the number of stitches of
multi-layer stitching has been changed, the changed setting data is conrmed by pressing .
<Operator mode> <Maintenance personnel mode>
*
Changeover between the operator mode and the maintenance personnel mode is carried out by
pressing
❶
and
❷
simultaneously.
❹ ❶❸
❷❻
❺ ❼
󱢵
❽ 󱢴 ❾󱢳 ❹ ❶❸
❷❻
❺ ❼
󱢶
❽ 󱢴 ❾󱢳
