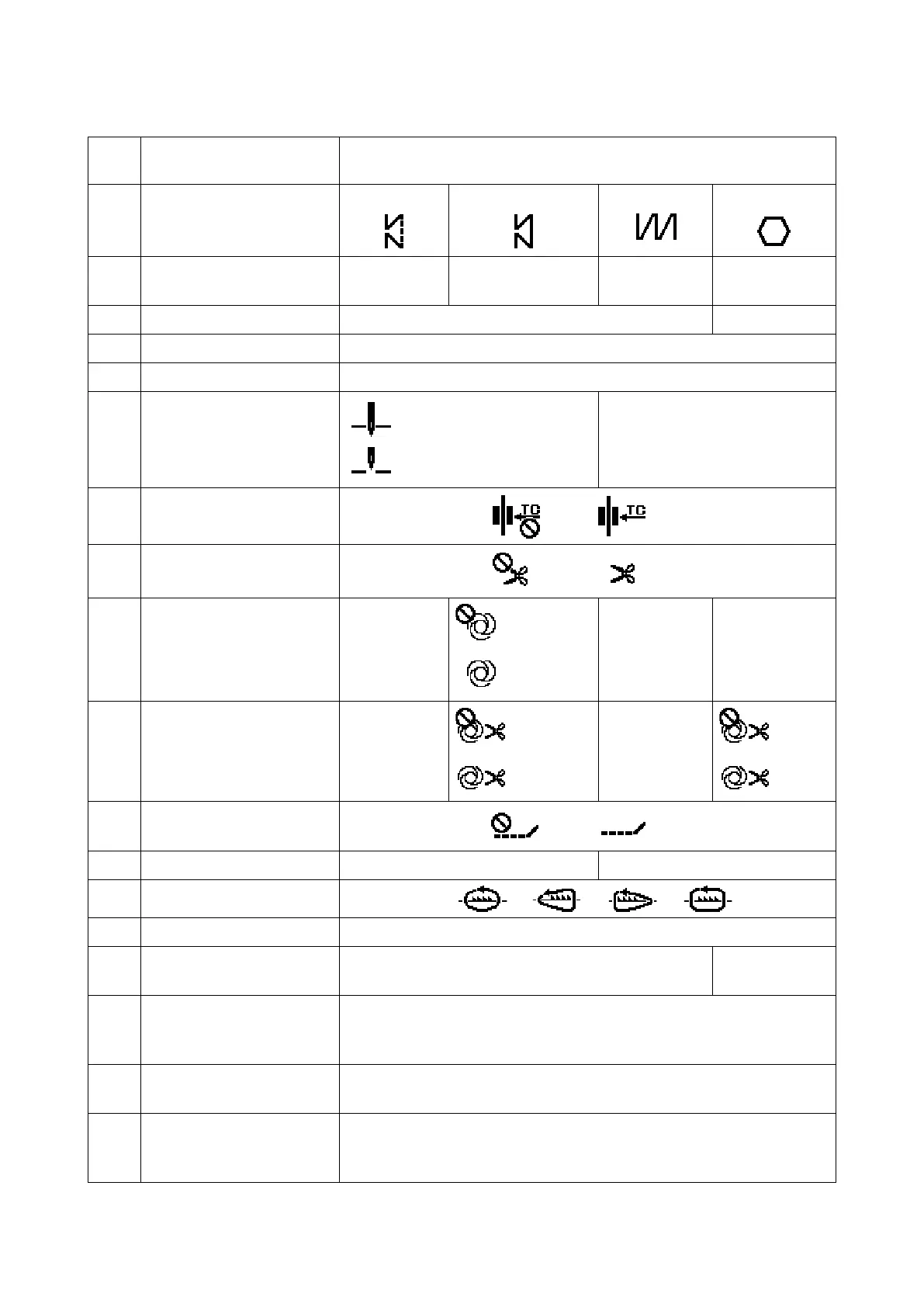

4-2-6. List of pattern functions
(1) Setting items under the pattern sewing mode
Data
No.
Item name Input range
S001 Shape Free
Constant dimension Multi-layered Polygonal shape
S002 Number of stitches/
Number of times
― 1 to 2000 1 to 15 ―
S003 Pitch -5.00 to 5.00 / Custom pitch No.1 to 20 ―
S004 Thread tension 0 to 200
S005 Presser foot pressure -350 to 200
S041 Stop position of needle bar
: Stop with the needle down
: Stop with the needle up
―
S042 Thread presser
: OFF / : ON
S043 Prohibition of thread
trimming
: OFF / : ON
S044 One-shot ―
: OFF
: ON
― ―
S045 Thread trimming after one-
shot
―
: OFF
: ON
―
: OFF
: ON
S046 Shorter-thread remaining
: OFF / : ON
S047 Limit on sewing speed 150 to U096 ―
S048 Feed locus
S
/ A
/ C / B
S049 Feed timing -30 to 30°
S050 Correction of feed dog
height
-4 to 8 ―
S051 Correction value for stitch
pitch of reverse feed
stitching
-5.00 to 5.00
S052 Multi-layered part detection
sensor value
1000 to 3000
S053 Number of stitches to start
sewing after the detection
of multi-layered part
0 to 200
– 44 –
