②
Selecting the new sewing pattern number
③
Conrming the data on the created sewing pattern

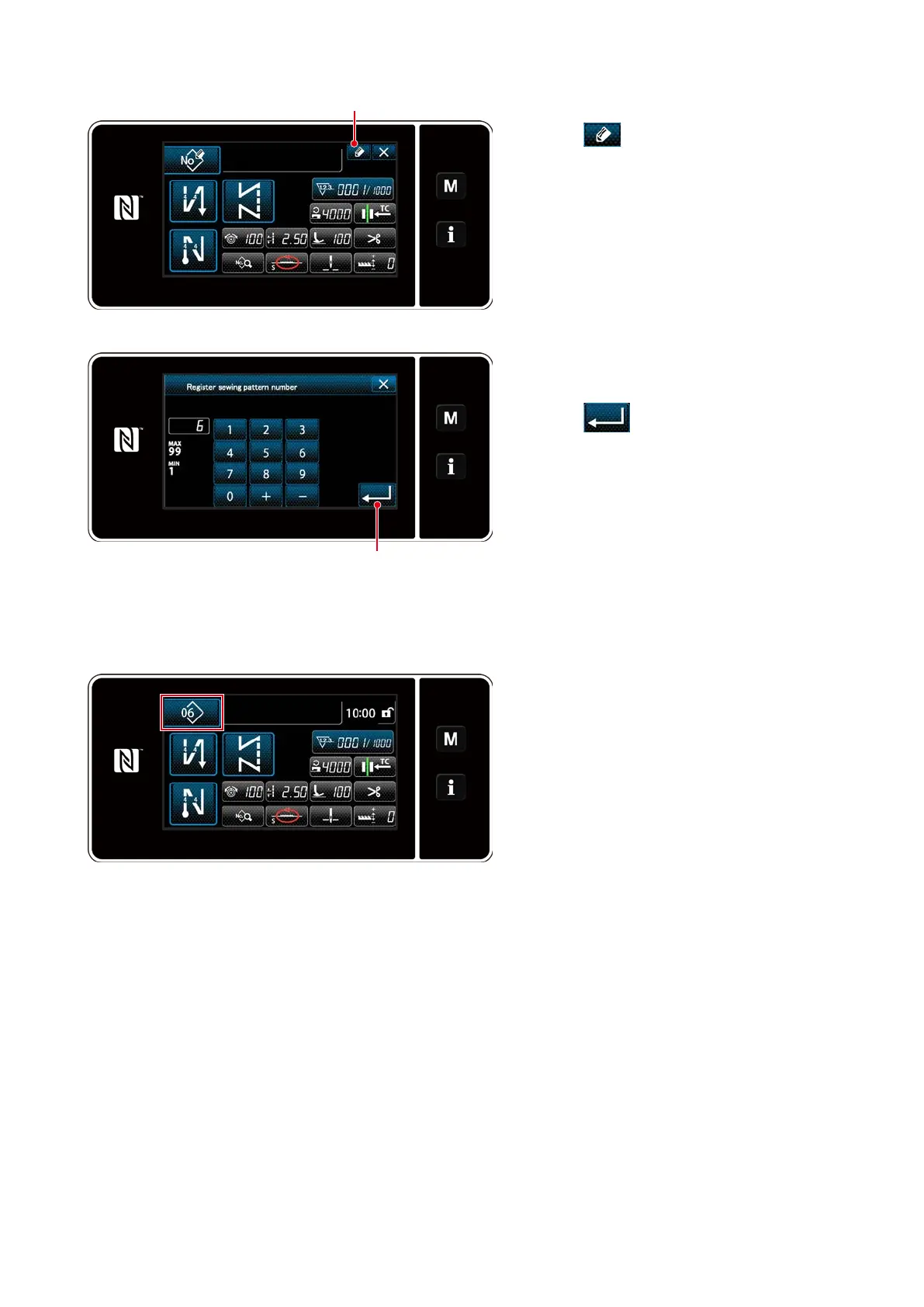

<Sewing screen>
The newly created sewing pattern is dis-
played.
❸
❹
1. Press
❸
to display the sewing pat-
tern No. registration.
2.
Enter the pattern number to be registered
using the numeric keypad.
3. Press
❹
to conrm the pattern
number you have entered.
The sewing pattern management screen
is displayed.
– 52 –
55
57
Table of Contents
Specifications
5
Drawing of Table
6
Cautions When Setting up the Sewing Machine
7
Installing the Thread Stand
8
Installing the Electrical Box
9
Connecting the Power Source Cord
10
Installing the Reactor Box
11
Connecting the Cords
12
Handling the Cords
13
Adjustment of the Pedal
14
Lubrication
15
How to Use the Operation Panel (Basic Explanation)
16
Names and Functions of the Panel Keys
18
Basic Operation
19
Preparation before Sewing
20
Winding the Bobbin Thread
21
Threading the Machine Head
23
Thread Tension
24
Presser Foot (Active Presser Device)
25
Changing the Initial Value of Presser Foot Pressure
26
Adjusting the Stitch Length
27
LED Hand Light
28
Custom Switch
29
Adjusting the Amount of Oil (Oil Splashes) in the Hook
30
How to Confirm the Amount of Oil (Oil Splashes)
31
Adjusting the Thread Take-Up Spring and the Thread Take-Up Stroke
32
How to Use the Operation Panel
33
Sewing Patterns
37
List of Sewing Patterns
38
Reverse Feed Stitching (at Start) Pattern
40
Double Reverse-Feed Stitch
45
Editing the Sewing Patterns
46
List of Pattern Functions
48
Reverse Feed Stitching (at End) Pattern
51
Teaching Function
52
One-Touch Utility Changeover Function
54
Registration of a New Sewing Pattern
55
Copying a Pattern
57
Narrow-Down Function
58
Counter Function
60
How to Set the Counter
61
How to Reset the Count-Completion State
64
Simplified Chart of Panel Displays
65
List of Memory Switch Data
66
List of Errors
71
Memory Switch Data
75
Main New Functions
77
Adjusting the Feed Dog Height
80
Operating Timing of the Feed
81
Changing the Feed Locus
82
Care
83
Cleaning
84
Applying Grease to the Needle Bar Lower Bushing and the Presser Bar Bushing
85
Replacing the Fuse
86
Adjustment of the Machine Head (Application)
87
Adjusting the Needle Thread Presser Device
88
Adjusting the Thread Trimmer
91
Checking of the Knife Unit
92
Adjustment of the Knife Unit
93
Adjustment of Thread Trimming Speed
94
Adjustment of the Picker
95
Active-Presser Multi-Layered Section Detection Function
96
Multi-Layered-Section Detection Number of Stitches Setting Function
98
Grease Shortage Alarm
99
How to Use the Operation Panel (Application)
101
Copying a Pattern
103
Deleting a Pattern
104
Setting up the Polygonal-Shape Stitching
105
Creating a New Polygonal-Shape Stitching Pattern
107
Cycle Pattern
108
Editing Cycle Sewing Data
109
Creating a New Cycle Pattern
110
Setting the Step from Which Cycle Sewing Pattern Is Started
112
Custom Pitch
113
Creating a New Custom Pitch
115
Custom Pitch Edit Function
118
Copying/Deleting a Custom Pitch
119
Condensation Custom Pattern
120
Condensation Custom Edit Function
123
Copying/Deleting a Condensation Custom
124
Simple Lock of the Screen
125
Adjustment of Brightness of the LED Panel
126
Information
127
Production Management
132
Key Customization
136
How to Assign a Function to a Key
137
