JUKI LK-1900B series - X;Y Motor Origin Adjustment

– 86 –
(3) X/Y motor origin adjustment
Inching operation of X/Y motor, origin retrieval operation, and Positioning of X/Y encoder are performed.

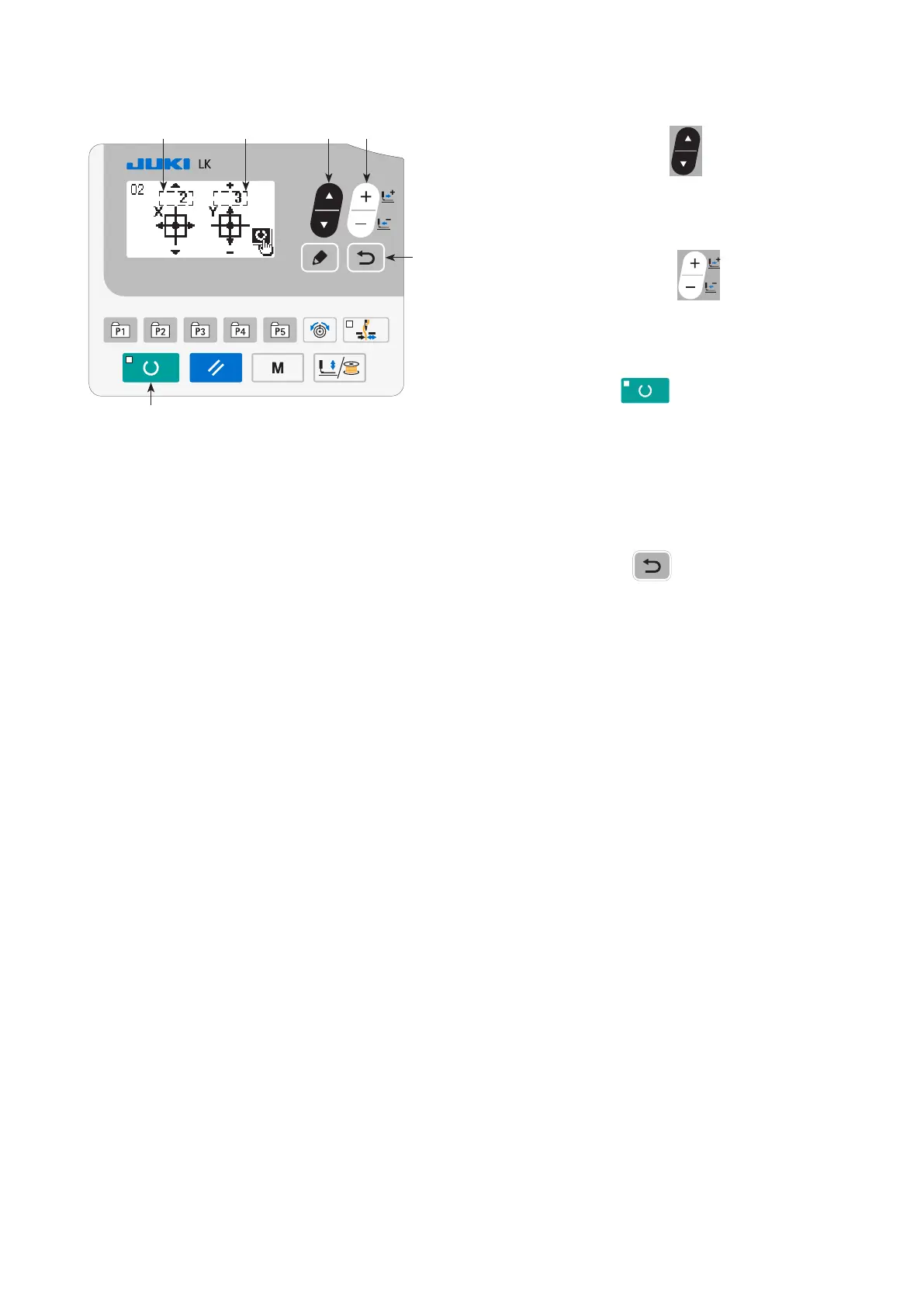

1) When ITEM SELECT key
❻
is pressed,
X-motor is driven in 0.1 mm steps.
Position information of the X-motor encoder is
displayed in section
A
.
When DATA CHANGE key
❼
is pressed,
Y-motor is driven in 0.1 mm steps.
Position information of the Y-motor encoder is
displayed in section
B
.
When READY key
❷
is held pressed for
two seconds, the motor position of current state
will be X/Y origin and position information of the X/
Y motor will be "0".
Perform the origin retrieval of X/Y motor by start
switch.
2) When RETURN key
❾
is pressed, the
screen returns to the check program screen.
❻ ❼
❾
A B
❷
(Remarks) The description only uses the panel
diagram of the standard specication.
