– 153 –

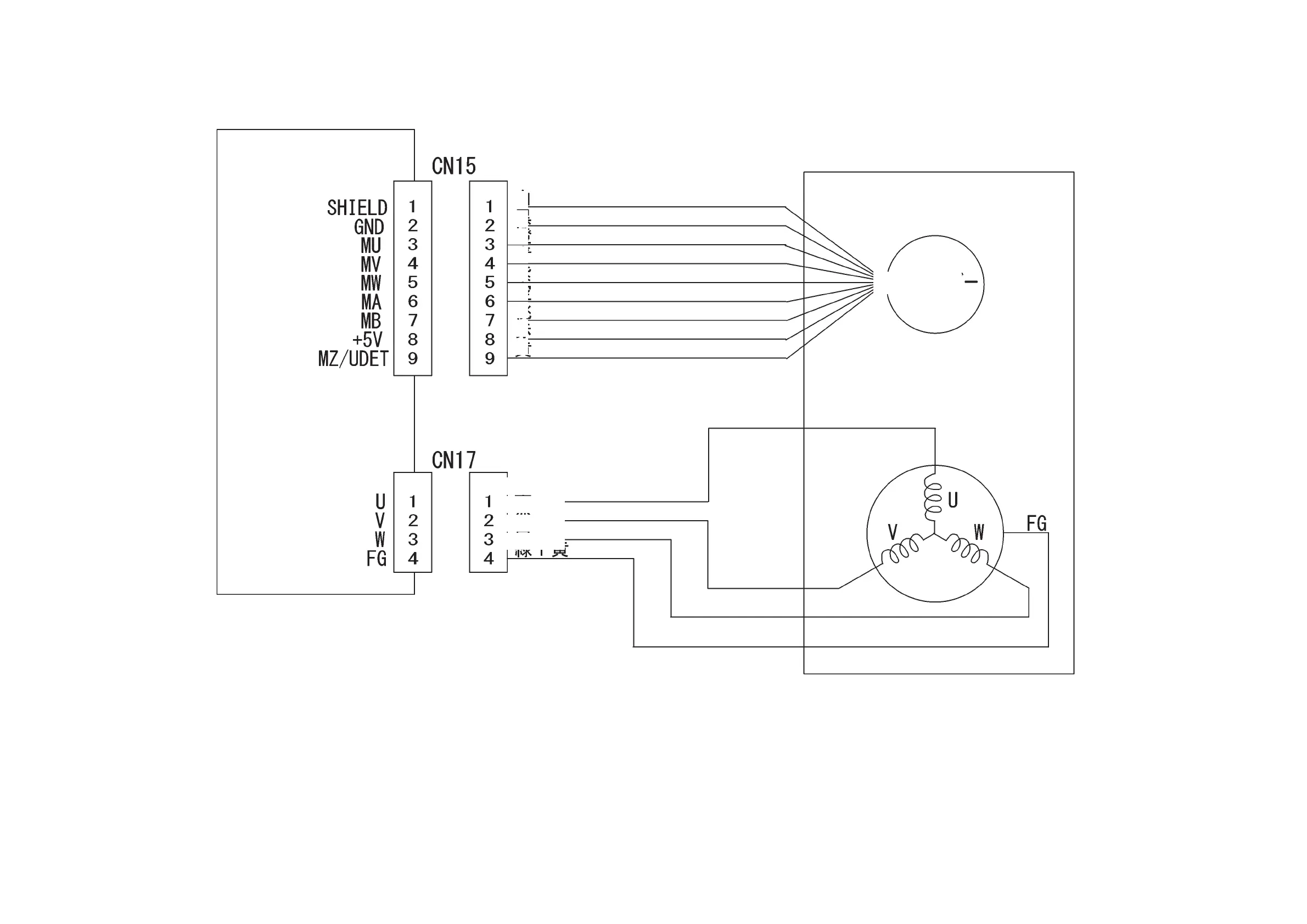

(7)Servomotorcircuitdiagram
SDC board
ACservomotor
Encoder
White
Black
Orange
Blue
Purple
Light blue
Pink
Red
Yellow
White
Black
Red
Green+Yellow
