JUKI LK-1900B series Engineer's Manual

– 56 –
(40) Assembling the suction pipe
WARNING :
As the work is performed while the power is ON, never touch the switches other than the necessary
one so as to prevent accidents caused by the malfunction of switches.

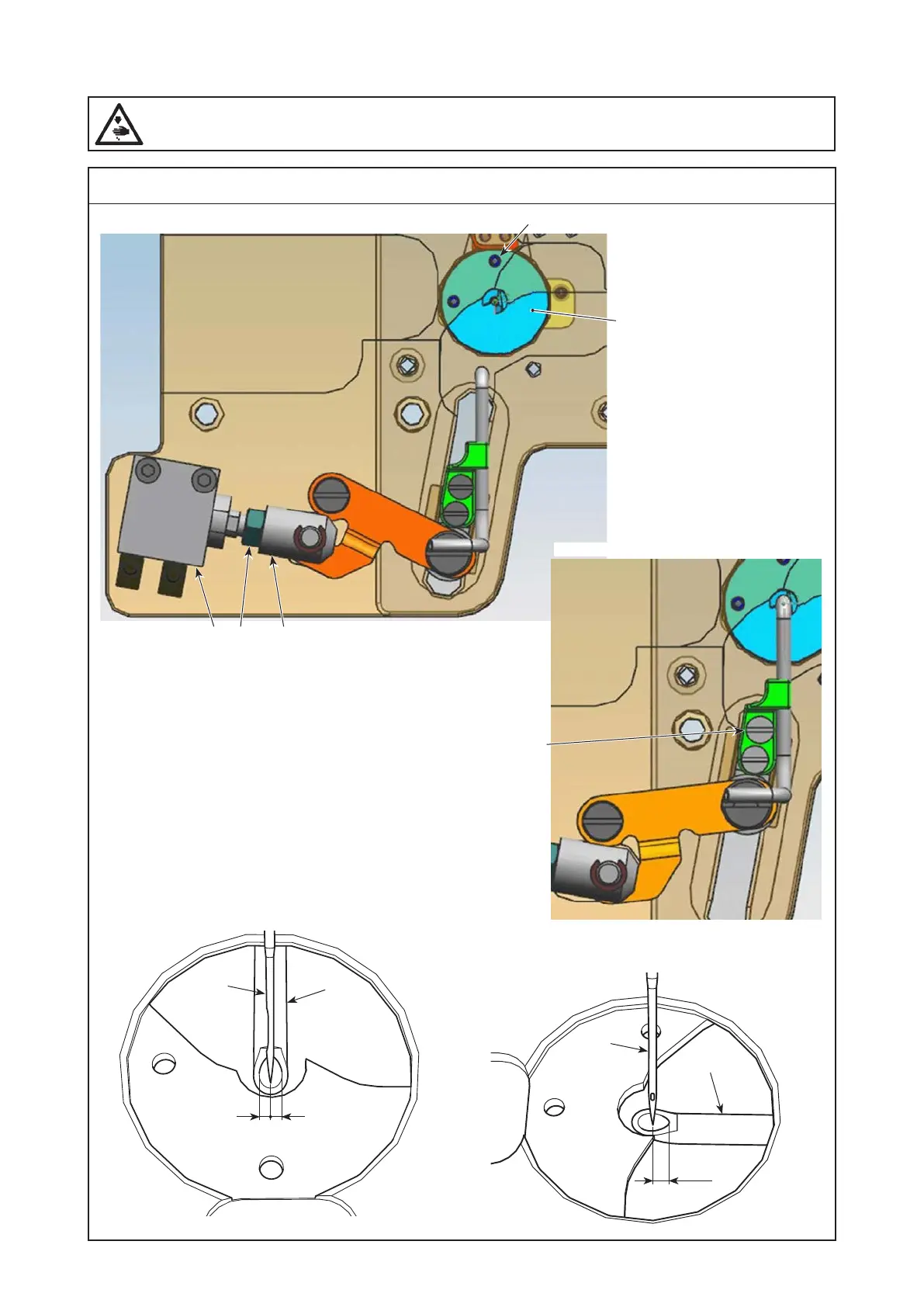

Standard adjustment
Longitudinal direction as viewed
from operator's side
BA
❹
❽
1mm
❹
❽
Lateral direction as viewed
from operator's side
❷
❻ ❼
❸
❶
Waiting (initial) position of cylinder
Most advanced position of cylinder
❺
