(21) Position of the mechanical origin
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
Standard adjustment
(22) Adjustment of the Y origin
WARNING :
As the work is performed while the power is ON, never touch the switches other than the necessary
one so as to prevent accidents caused by the malfunction of switches.
Standard adjustment

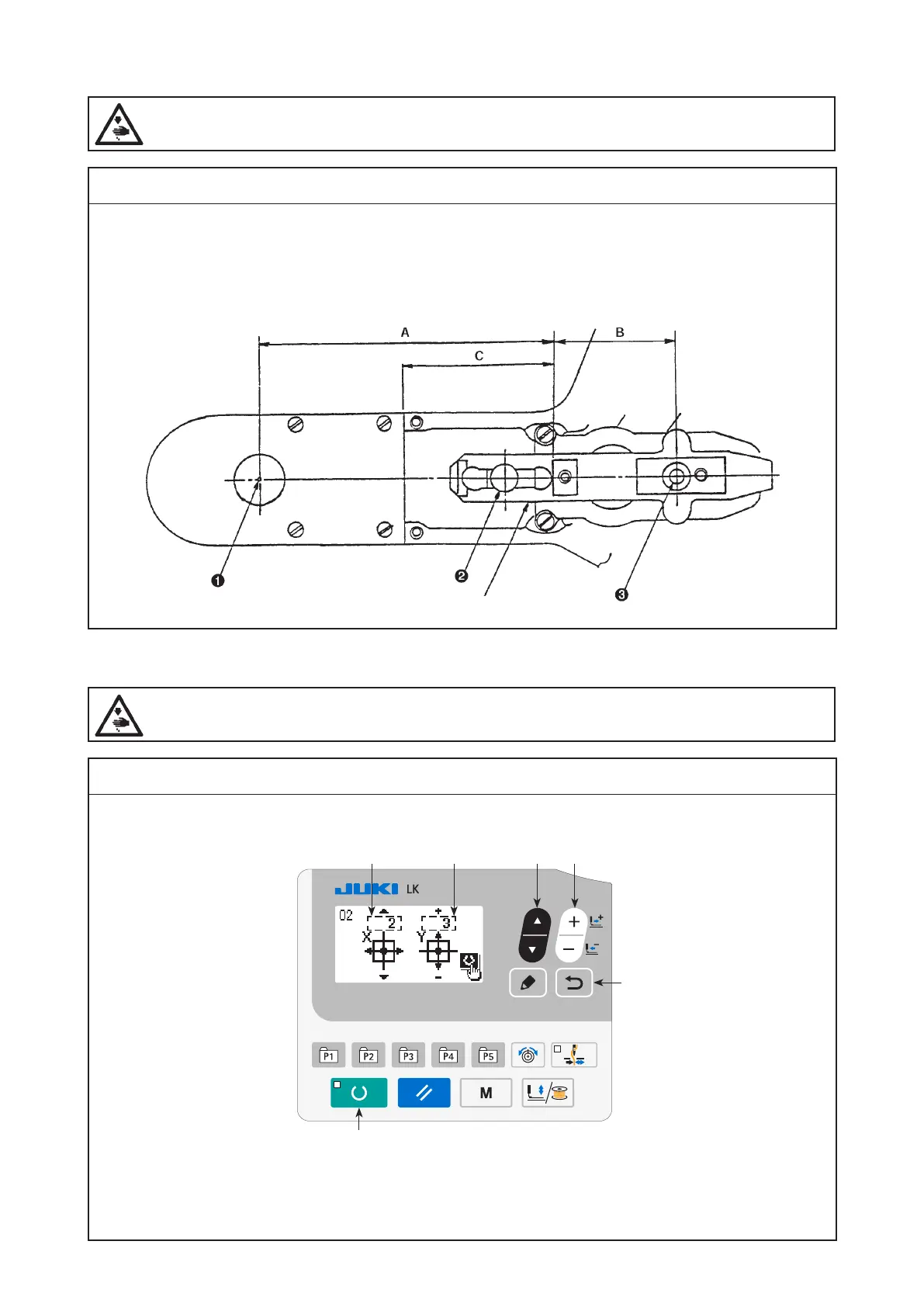

Work feed plate
A : 147mm (LK-1900B, 1902B, 1900BN, 1902BN)
: 146mm (LK-1901B, 1903B, 1901BN, 1903BN)
B : 61mm (LK-1900B, 1902B, 1900BN, 1902BN)
: 62mm (LK-1901B, 1903B, 1901BN, 1903BN)
C : 74mm (LK-1900B, 1902B, 1900BN, 1902BN)
: 73mm (LK-1901B, 1903B, 1901BN, 1903BN)
❻ ❼
❾
A B
A
(Remarks) The description only uses the panel
diagram of the standard specication.
