(4) Key look setting
In the case of setting the key-lock function, operation of the key for changing the data can be disabled.

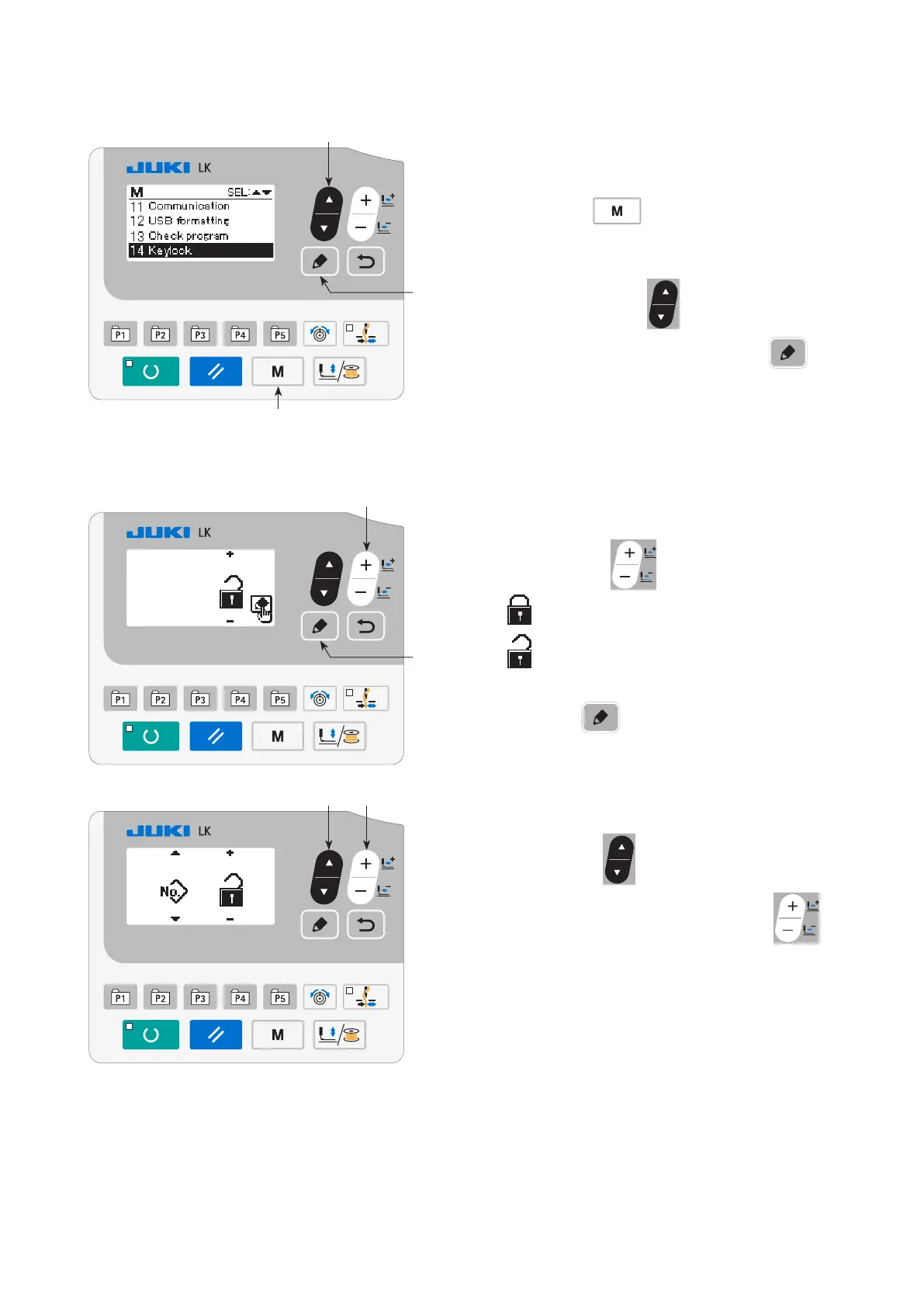

1) Starting the key lock screen
Turn ON the DIPSW1-1 of MAIN board while the
power is OFF, and turn ON the power.
When MODE key
❹
is held pressed for three
seconds, "14 Key lock" is displayed on the mode
screen.
Press ITEM SELECT key
❻
to place "14 Key
lock" in the selected. Then, press EDIT key
❽
to display the key lock function enable/disable
screen.
* When the DIPSW1-1 of MAIN board is OFF, "14 Key
lock setting" is not displayed on the mode screen.
2) Setting the enable/disable of key lock function
Enable/disable of key lock function is selected with
DATA CHANGE key
❼
.
: Key lock is enabled.
: Key lock is disabled.
When EDIT key
❽
is pressed, selection screen
of the item to be key lock is displayed.
3) Selecting the item to be key lock
It is possible to change the item to be key lock with
ITEM SELECT key
❻
and to change enable/
disable of key lock with DATA CHANGE key
❼
.
❼
❽
❻
❽
❹
❻ ❼
(Remarks) The description only uses the panel
diagram of the standard specication.
