– 150 –

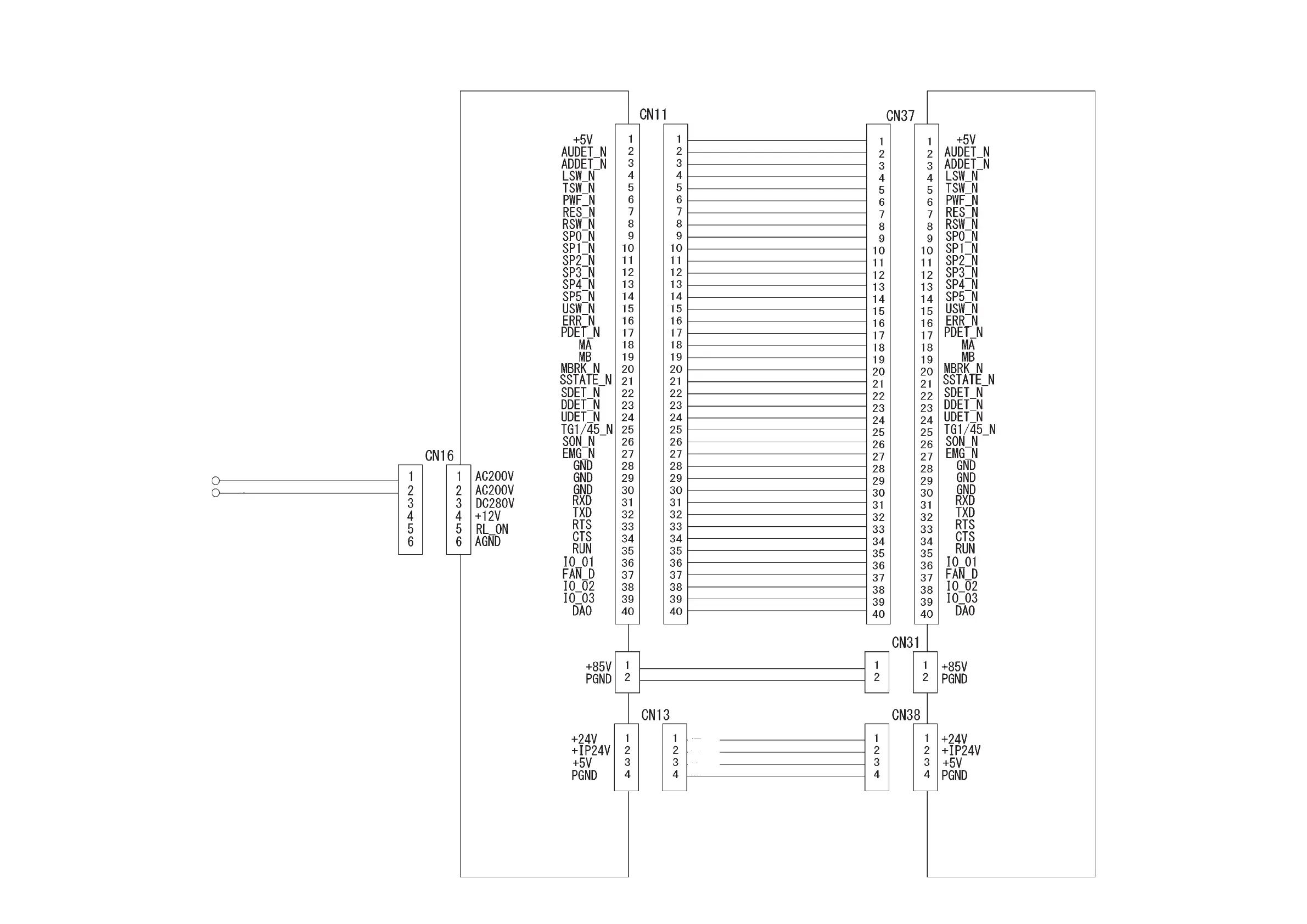

(4)Powersupplycircuitdiagram(Single-phase)
SDC board
MAINboard
Light blue
Orange
Brown
Yellow
Red
Black
