– 108 –
(5) Connection of the marking light
The sewing machine has three output ports to which three 5-v marking lights can be connected.
0.5A at maximum is applicable per marking light, and 2.5 AV at maximum is applicable with 3 marking lights
in total. Connect to CN41. It is a connector for the foot switch (presser, start switch), and therefore, it cannot
be used simultaneously with the optional pedal marking light.
1
）

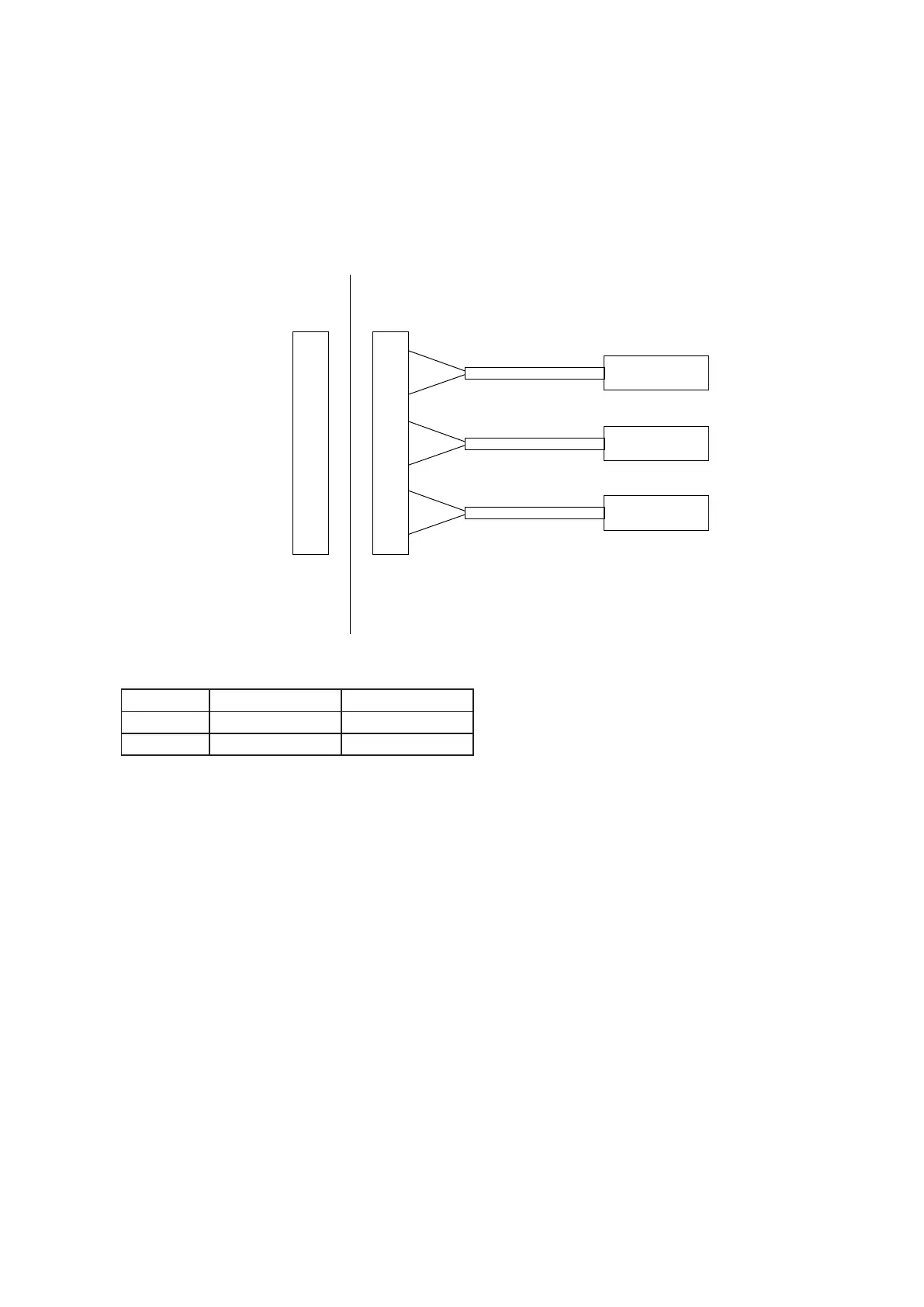

Wiring diagram
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
+5V
PRSR
GND
+5V
START
GND
+5V
PRSL
GND
CN41
MAIN PWB
2) Applicable connector
No. 1 2
Part No. HK016510090 HK016540000
Part name Housing Pin contact
3) Marking light
Recommended/Neoark Corporation: LEM-1GP (green crisscross), LEM-1RP (orange crisscross)
(Caution) Specialized "mounting base" is not supplied with the sewing machine.
