2-2NFCApplication
No.
NAME FUNCTION

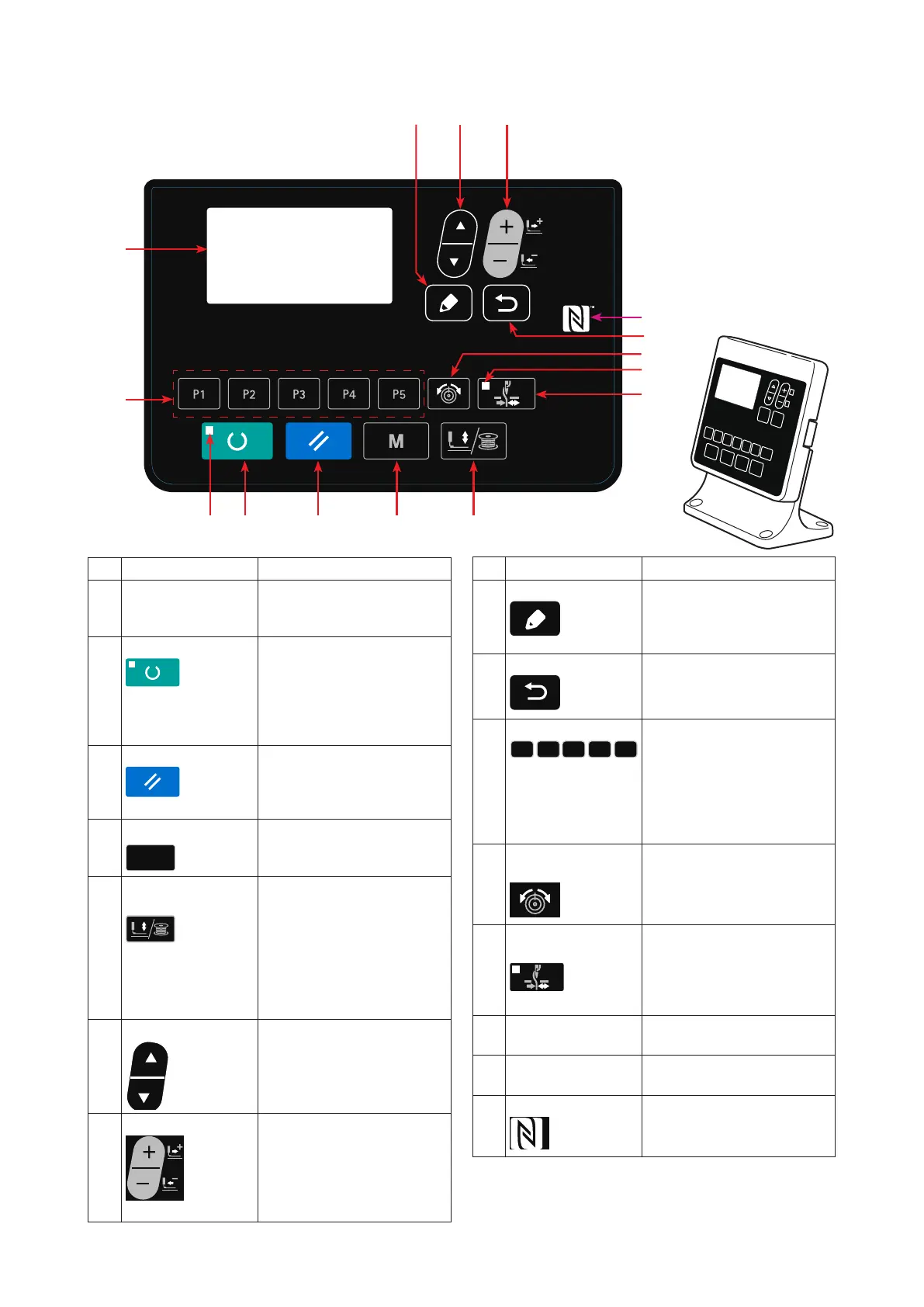

❶
LCD display Various data such as pattern
No., shape, etc. are dis-
played.
❷
READY key Press this key when starting
sewing.
Every time this key is
pressed, change-over of sew-
ing ready set state and data
set state can be performed.
❸
RESET key Press this key when releasing
error, traveling the feed mech-
anism to its initial position,
counter resetting, etc.
❹
MODE key
M
This key is used for display-
ing the mode screen.
❺
PRESSER and
WINDER key
This key lifts or lowers the
presser. When the presser
goes up, the needle bar trav-
els to the origin and when it
comes down, the needle bar
travels to the right.
This key is pressed when per-
forming bobbin winding.
❻
ITEM SELECT key This key is used to select the
data No. and other kinds of
data.
❼
DATA CHANGE key This key is used to change
the pattern No. and other
kinds of data.
This key is used to move the
feed forward on a stitch-by-
stitch basis.
No.
NAME FUNCTION
❽
EDIT key This key is used to display
the edit screen, to select the
item or to display the detail
screen.
❾
RETURN key This key is used to return the
screen to the previous one.
DIRECT PATTERN
P1 P2 P3 P4 P5
This key registers the pattern.
When this key is pressed, the
pattern registered here can
sew immediately.
X/Y scale, sewing position,
etc. can be changed and
registered.
THREAD TENSION
key
The thread tension screen is
displayed.
THREAD CLAMP
key
This key selects enable/dis-
able of needle thread clamp.
When it is enabled, needle
thread clamp display LED
lights up.
(Caution)1.
THREAD CLAMP
LED
When this LED lights up, nee-
dle thread clamp operates.
SET READY LED The LED lights up under the
sewing mode.
⓯
NFC MARK
To communicate, bring a
tablet or smart phone closer
to the mark.
(Caution)1.
LK-1901BN is set toneedlethread clamp
prohibited(nomotion)withmemoryswitch
U035atthetimeofstandarddelivery
.
2.Forthe LK-1901BBNS,thethreadclamp
keyisdisabled.
