CHAPTER 18
Connecting the Router to External Devices
•
Connecting ACX1000 or ACX1100 Routers to Management Devices on page 95
•
Connecting the ACX1000 or ACX1100 Router to an External Alarm-Reporting
Device on page 97
•
Connecting the ACX1000 or ACX1100 Router to External Clocking Devices on page 98
Connecting ACX1000 or ACX1100 Routers to Management Devices
To connect external devices and cables to the router, you need the following tools:
•
RJ-45 Ethernet cable and RJ-45 to DB-9 serial port adapter (provided)
•
Management host, such as a PC, with an Ethernet port (not provided)
•
Connecting the Router to a Network for Out-of-Band Management on page 95
•
Connecting the Router to a Management Console or Auxiliary Device on page 96
Connecting the Router to a Network for Out-of-Band Management
To connect to the MGMT port on the ACX1000 or ACX1100 router:
1. Turn off the power to the management device.
2. Plug one end of the Ethernet cable into the MGMT port on the router.
(Figure 24 on page 95 shows the connector. Figure 25 on page 96 shows the port.)
3. Plug the other end of the cable into the network device.

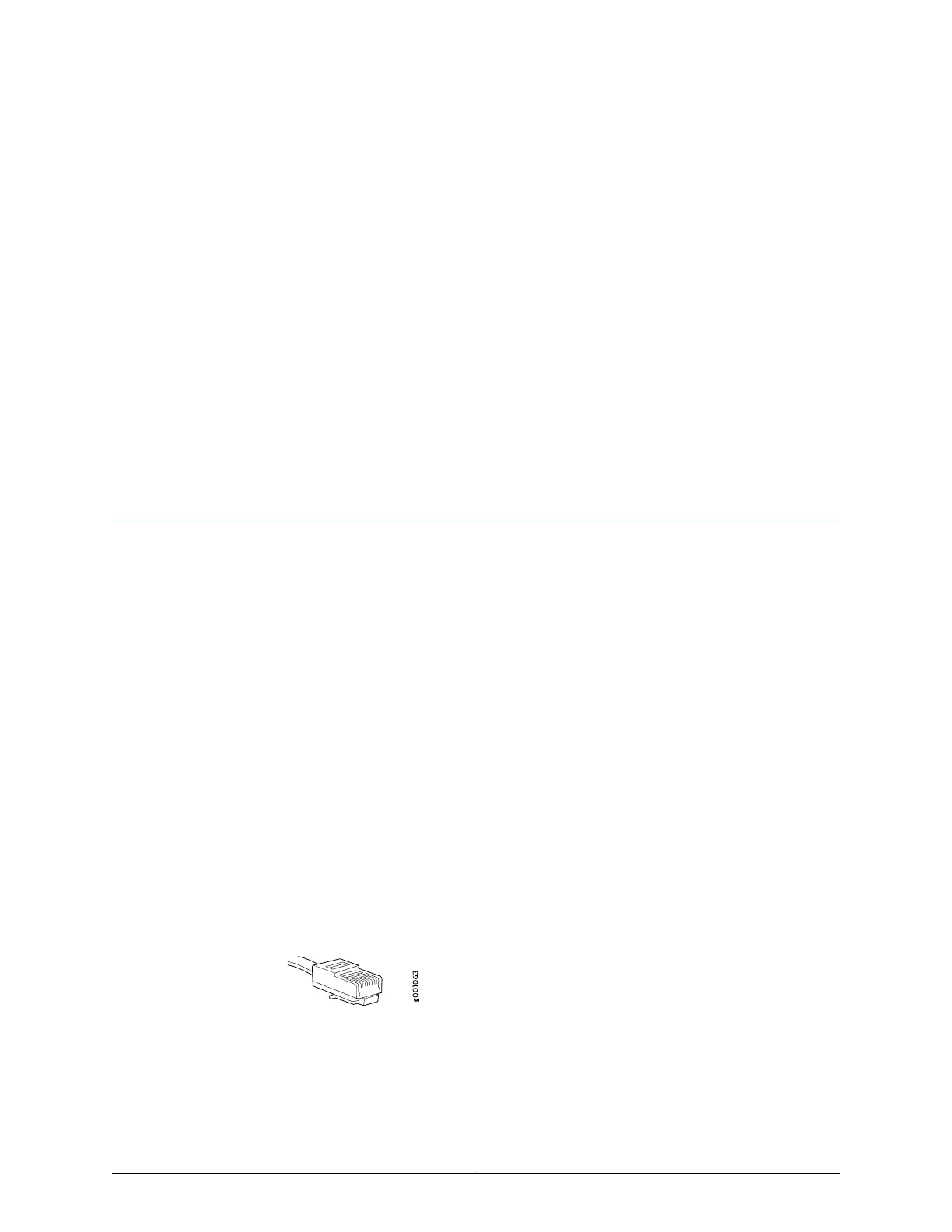

Figure 24: Ethernet Cable Connector
95Copyright © 2017, Juniper Networks, Inc.
