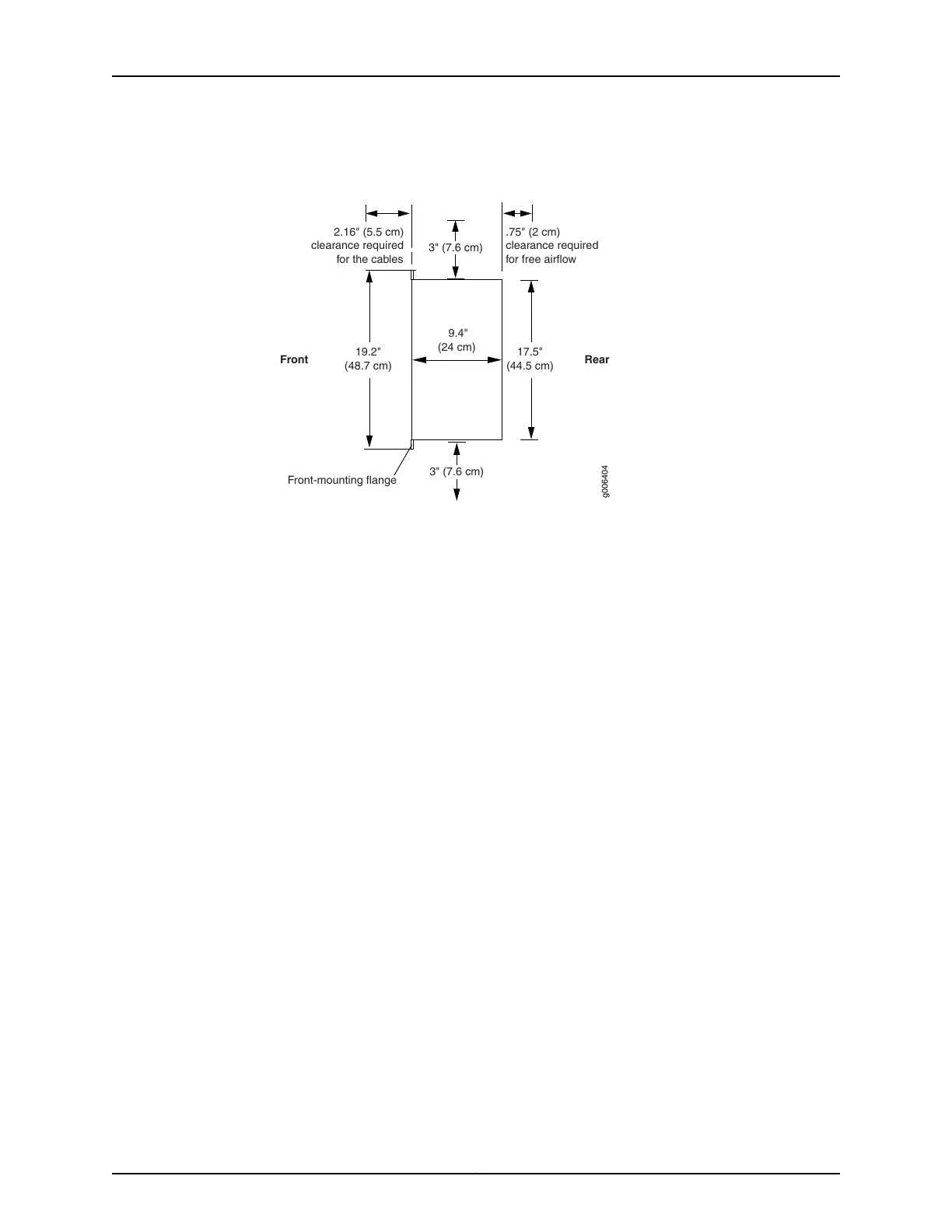

Figure 15: ACX1000 and ACX1100 Chassis Dimensions and Clearance

Requirements

RearFront

17.5"

(44.5 cm)

9.4"

(24 cm)

g006404

Front-mounting flange

19.2"

(48.7 cm)

2.16" (5.5 cm)

clearance required

for the cables

.75" (2 cm)

clearance required

for free airflow

3" (7.6 cm)
