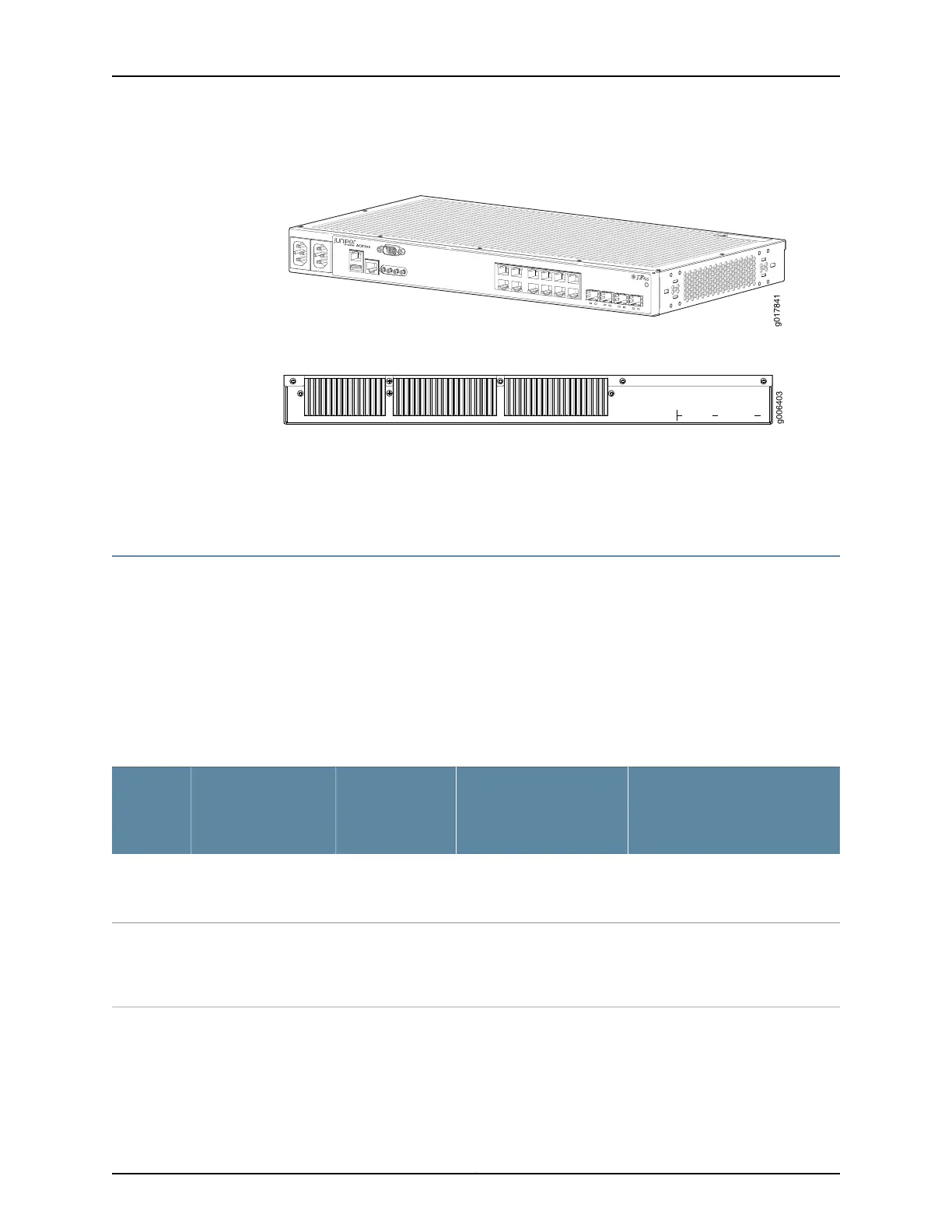

Figure 3: Front View of the ACX1100 Router
g017841
Figure 4: Rear View of the ACX1100 Router
g006403
Related
Documentation
ACX1000 and ACX1100 Routers Hardware and CLI Terminology Mapping on page 5•
• LEDs on ACX1000 and ACX1100 Routers on page 35
ACX1000 and ACX1100 Routers Hardware and CLI Terminology Mapping
•
ACX1000 and ACX1100 Routers Hardware and CLI Terminology Mapping on page 5
•
ACX1100 Routers Hardware and CLI Terminology Mapping on page 6
ACX1000 and ACX1100 Routers Hardware and CLI Terminology Mapping
Table 3 on page 5 describes the hardware terms used in ACX1000 router documentation
and the corresponding terms used in the Junos OS command line interface (CLI).
Figure 5 on page 6 shows the port locations of the interfaces.
Table 3: CLI Equivalents of Terms Used in Documentation for ACX1000 Router
Additional InformationItem in Documentation
Value (as
displayed in the
CLI)
Description (as
displayed in the CLI)
Hardware
Item (as
displayed
in the CLI)
“Chassis Physical Specifications for
ACX1000 and ACX1100 Routers”
on page 55
Router chassis–ACX1000Chassis
Interface Naming Conventions Used
in the Junos OS Operational
Commands
The router does not have
actual FPCs. In this case,
FPC refers to the router
itself.
Value of n is
always 0.
Abbreviated name of
the Flexible PIC
Concentrator (FPC)
FPC (n)
5Copyright © 2017, Juniper Networks, Inc.
Chapter 1: System Overview

Juniper ACX1000 Specifications
