CHAPTER 22
Replacing Chassis Components
•
Replacing an ACX500 or ACX1100 Console or Auxiliary Cable on page 113
•
Replacing an ACX1000 or ACX1100 Management Ethernet Cable on page 114
•
Replacing an ACX1000 or ACX1100 Fiber-Optic Cable on page 115
•
Replacing an ACX1000 or ACX1100 Transceiver on page 117
Replacing an ACX500 or ACX1100 Console or Auxiliary Cable
1.
Removing an ACX500 or ACX1100 Console or Auxiliary Cable on page 113
2.
Installing an ACX1000 or ACX1100 Console or Auxiliary Cable on page 114
Removing an ACX500 or ACX1100 Console or Auxiliary Cable
To remove a serial cable connected to a console or auxiliary device:
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Press the tab on the connector, and pull the connector straight out of the
CONSOLE/AUX port. Figure 28 on page 113 shows the connector.
3. Disconnect the cable from the console or auxiliary device.

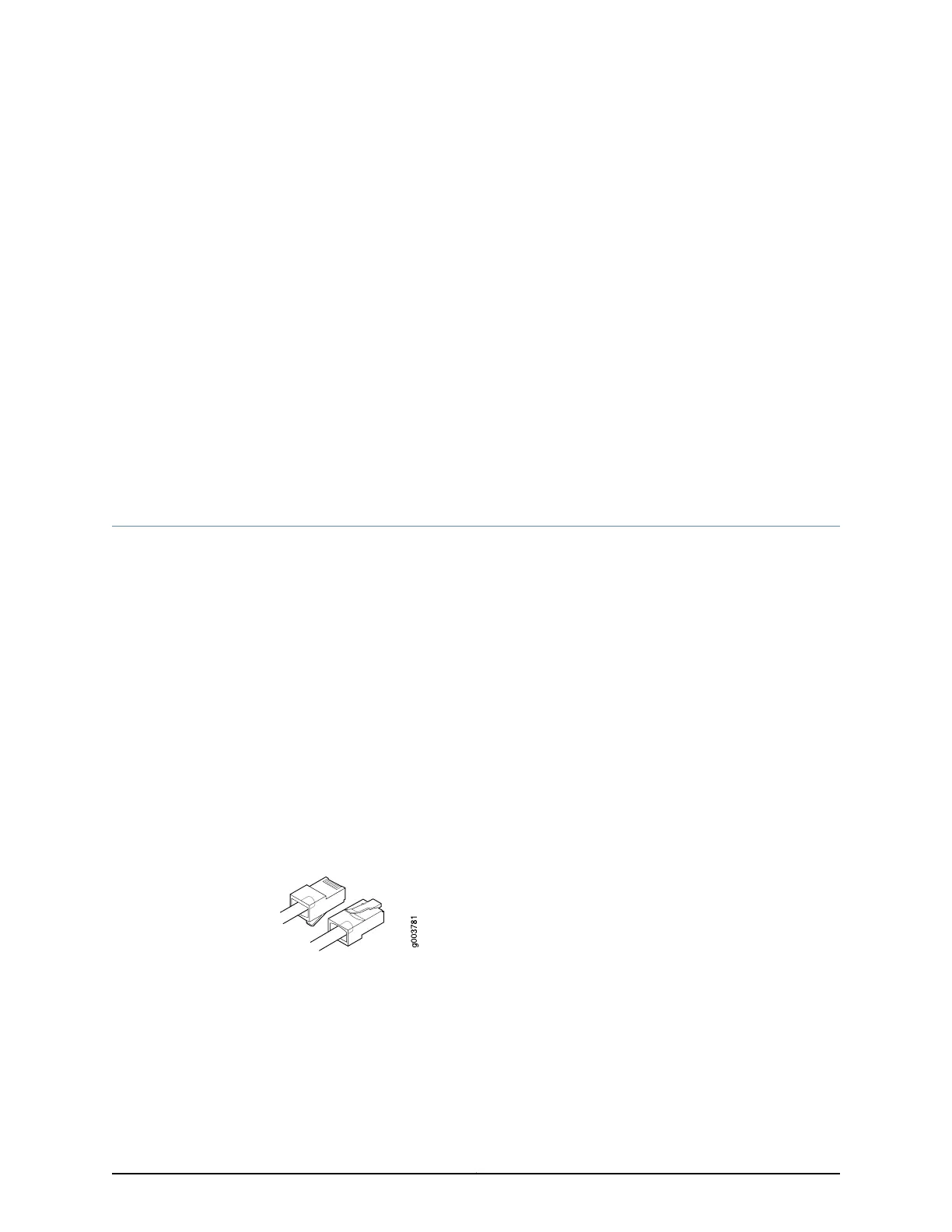

Figure 28: Ethernet Cable Connectors
See Also Console/Auxiliary Port Connector Pinout on ACX Series Routers on page 73•
• Installing an ACX1000 or ACX1100 Console or Auxiliary Cable on page 114
