Installing an ACX1000 or ACX1100 Console or Auxiliary Cable
The CONSOLE/AUX port on the front panel of the router accepts an RS-232 (EIA-232)
serial cable with RJ-45 connectors.
To connect a cable between the router and the console or auxiliary device:
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Connect one end of the replacement cable into the CONSOLE/AUX port.
3. Plug the other end of the cable into the device's serial port.
See Also Console/Auxiliary Port Connector Pinout on ACX Series Routers on page 73•
• Removing an ACX500 or ACX1100 Console or Auxiliary Cable on page 113
Related
Documentation
Console/Auxiliary Port Connector Pinout on ACX Series Routers on page 73•
Replacing an ACX1000 or ACX1100 Management Ethernet Cable
1.
Removing an ACX1000 or ACX1100 Management Ethernet Cable on page 114
2.
Installing an ACX1000 and ACX1100 Management Ethernet Cable on page 115
Removing an ACX1000 or ACX1100 Management Ethernet Cable
To remove a serial cable connected to a management device:
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Press the tab on the connector, and pull the connector straight out of the MGMT port.
Figure 29 on page 114 shows the connector.
3. Disconnect the cable from the network device.

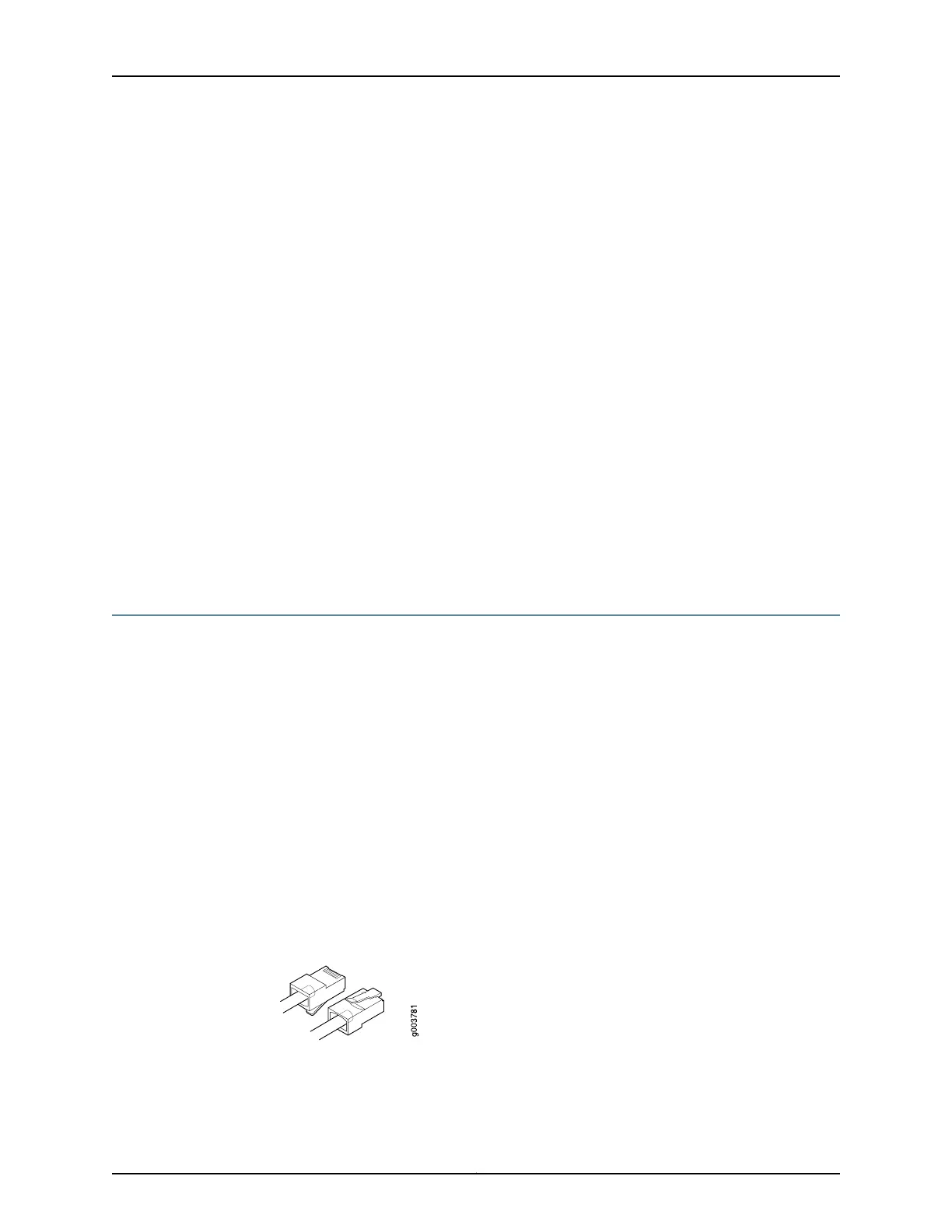

Figure 29: Ethernet Cable Connectors
See Also Installing an ACX1000 and ACX1100 Management Ethernet Cable on page 115•
• Management Port Connector Pinout Information for ACX Series Routers on page 73
Copyright © 2017, Juniper Networks, Inc.114
ACX1000 and ACX1100 Universal Access Router Hardware Guide
