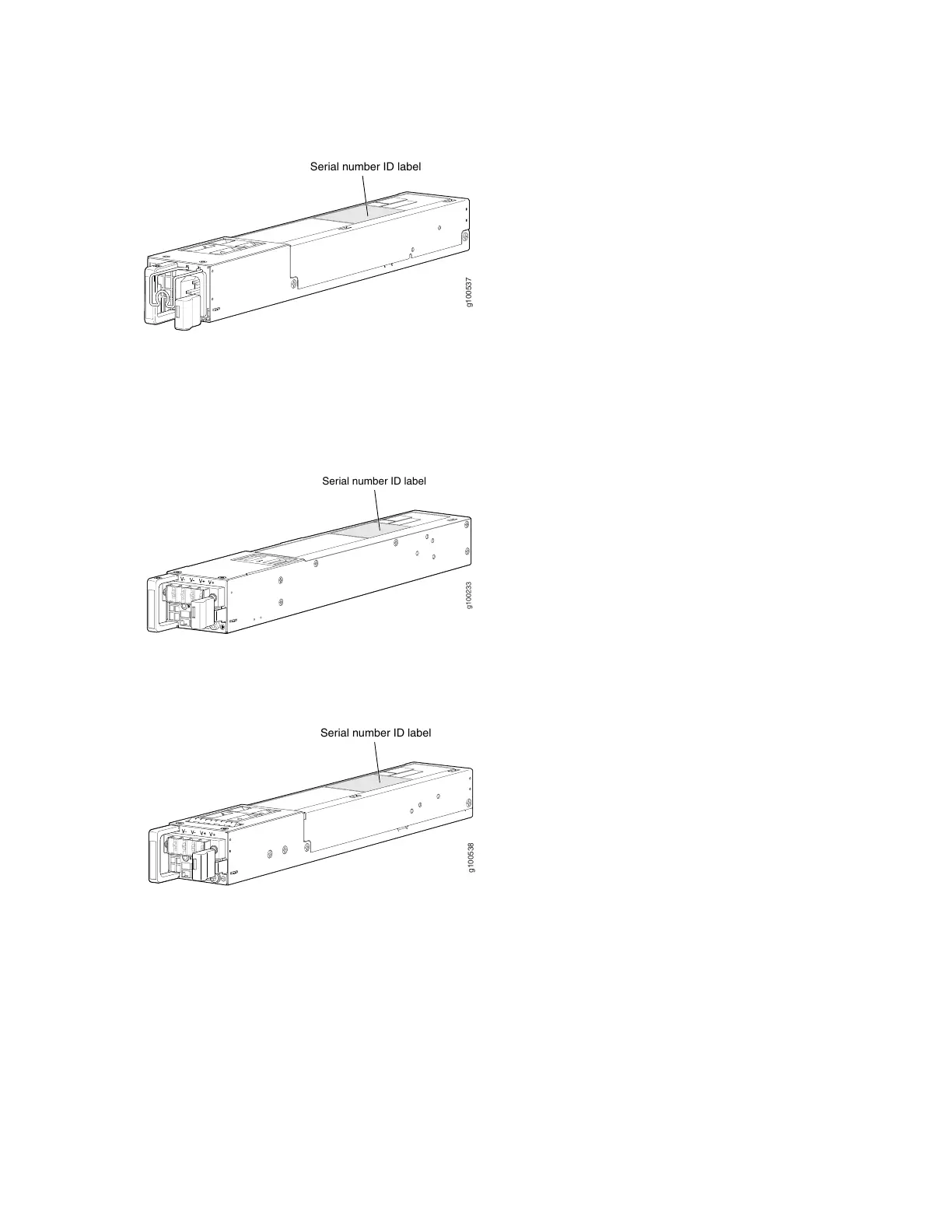

Figure 91: ACX5448-D and ACX5448-M AC PSM Serial Number Location
g100537
g100537
Serial number ID label
•
DC PSM—The serial number ID label is on the top of the DC PSM. See Figure 92 on page 153 and
Figure 93 on page 153.
Figure 92: ACX5448 DC PSM Serial Number Location
g100233
Serial number ID label
Figure 93: DC PSM Serial Number Location for ACX5448-D and ACX5448-M Routers
g100538
Serial number ID label
Locate the Serial Number ID Label on an ACX5400 Fan Module
The fan modules installed in an ACX5400 are field-replaceable units (FRUs). For each FRU, you must
remove the FRU from the router chassis to see the FRU serial number ID label.
Fan module–The serial number ID label is located at the base of the fan module. See Figure 94 on page 154.
