Port Panel of ACX5400 Routers
IN THIS SECTION
Port Panel of an ACX5448 Router | 32
Port Panel of an ACX5448-D Router | 32
Port Panel of an ACX5448-M Router | 36
Port Panel of an ACX5448 Router
The port panel of the ACX5448 router has the following port configurations:
•
Forty-eight 10-Gigabit or 1-Gigabit Ethernet ports (ports 0 through 47) that operate at 10-Gbps speed
with SFP+ transceivers or at 1-Gbps speed when you use SFP optics.
•
Four 100-Gigabit Ethernet ports (ports 48 through 51) that support quad small form-factor pluggable
28 (QSFP28) transceivers. You can channelize these ports into four 25-Gbps interfaces using breakout
cables (and channelization configuration). These ports also support 40-Gbps speed, when you use QSFP+
optics. You can channelize these 40-Gbps ports into four 10-Gbps interfaces using breakout cables (and
channelization configuration).
Figure 19 on page 32 shows the port panel of an ACX5448 router.

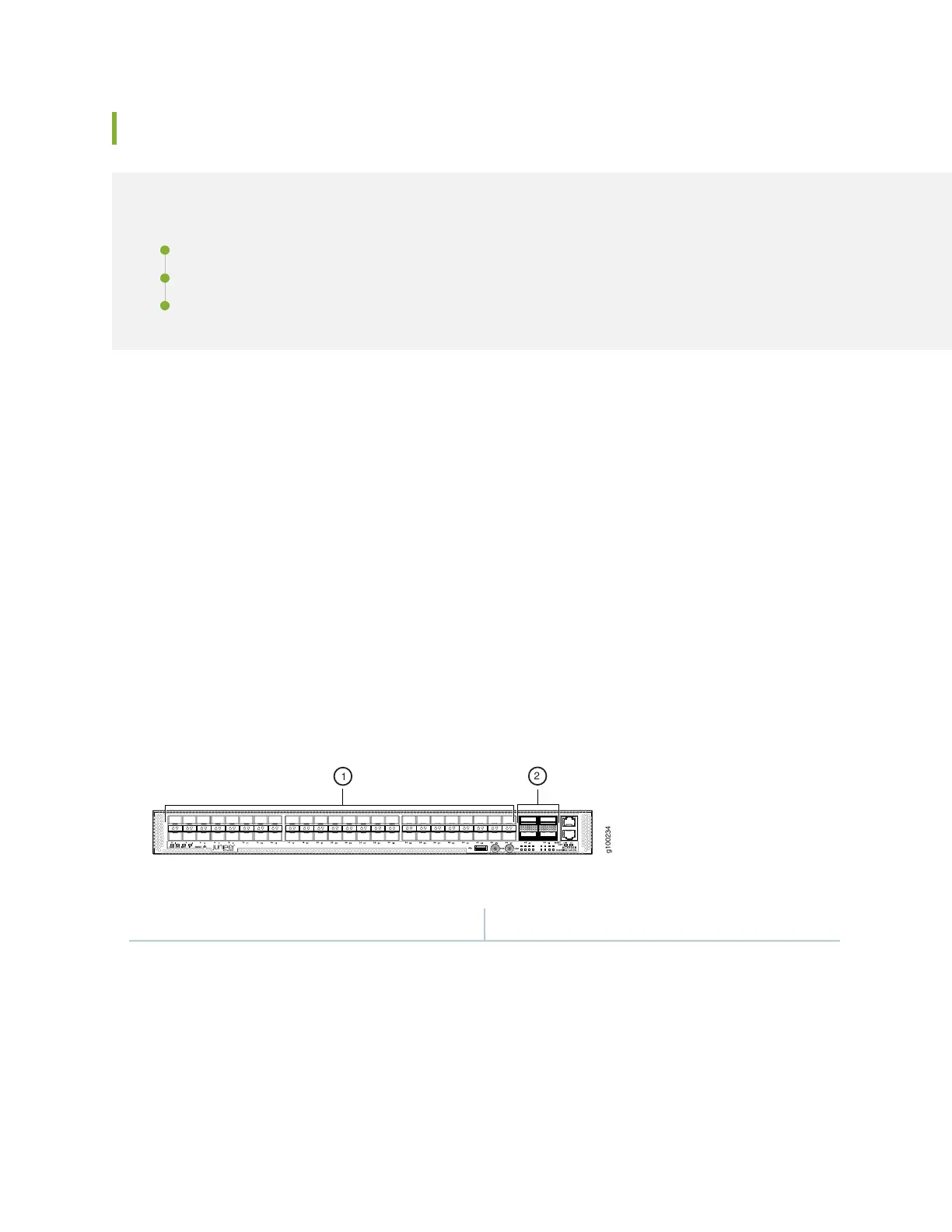

Figure 19: ACX5448 Router Port Panel
g100234
2
1
2—1— 100–Gigabit Ethernet ports (4 QSFP28 ports)10–Gigabit Ethernet ports (48 SFP+ ports)
Port Panel of an ACX5448-D Router
The port panel of the ACX5448-D router has the following port configurations:
•
Thirty-six 10-Gigabit or 1-Gigabit Ethernet ports (0 through 35, mapped to CLI PIC 0) that operate at
10-Gbps speed with SFP+ transceivers or at 1-Gbps speed when you use SFP optics.
