Six 100-Gigabit Ethernet ports (44 through 49) that support quad small form-factor pluggable 28 (QSFP28)
transceivers. You can channelize these ports into four 25-Gbps interfaces using breakout cables (and
channelization configuration). These ports also support 40-Gbps speed, when you use QSFP+ optics.
You can channelize these 40-Gbps ports into four 10-Gbps interfaces using breakout cables (and
channelization configuration).
NOTE: The ACX5448-M routers support advanced security capabilities such as Media Access
Control Security (MACsec). MACsec is supported only on the forty-four 10-Gigabit or
1-Gigabit Ethernet ports.

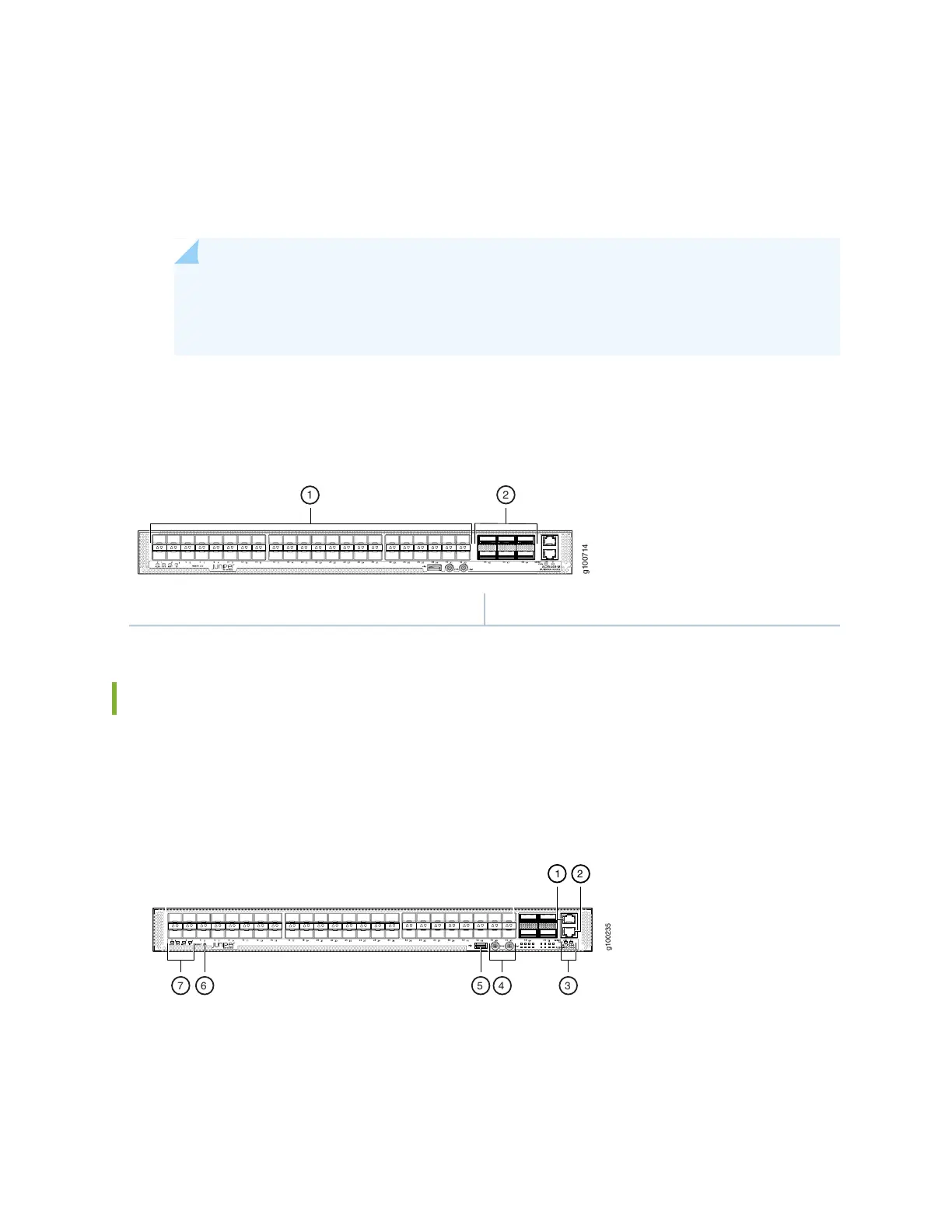

Figure 21 on page 37 shows the port panel of an ACX5448-M router.
Figure 21: ACX5448-M Router Port Panel
g100714
2
1
2—1— 100–Gigabit Ethernet ports (6 QSFP28 ports)10–Gigabit Ethernet ports (44 SFP+ ports)
Chassis Status LEDs on ACX5400 Routers
The ACX5400 routers have four status LEDs on the front side of the chassis (see callout 7 in
Figure 22 on page 37).
Figure 22: Chassis Status LEDs on an ACX5448 Router
g100235
1
7 6 5 4 3
