The horizontal position is the standard installation position. To install the device in a
horizontal position:
1. Make sure that the rubber feet are attached to the chassis.
2. Place the device on a desk with the Juniper Networks logo, which is embossed on the
top cover, facing up.
NOTE: For information on installing Mini-Physical Interface Modules
(Mini-PIMs), see the SRX300 Series and SRX550 High Memory Services
Gateway Interface Modules Reference.
Related
Documentation
Installing the SRX320 Services Gateway in a Rack on page 53•
• Installing the SRX320 Services Gateway on a Wall on page 57
Installing the SRX320 Services Gateway on a Wall
You can install the SRX320 Services Gateway on a wall.
NOTE: The wall-mounting kit is not shipped with the device and must be
ordered separately.
To install the device on a wall:
1. Place the device on a flat, level surface with the Juniper Networks logo, which is
embossed on the top cover, facing up. Ensure that the rubber feet are attached to the
bottom of the chassis.
2. Position a mounting bracket on each side of the chassis as shown in
Figure 11 on page 57.

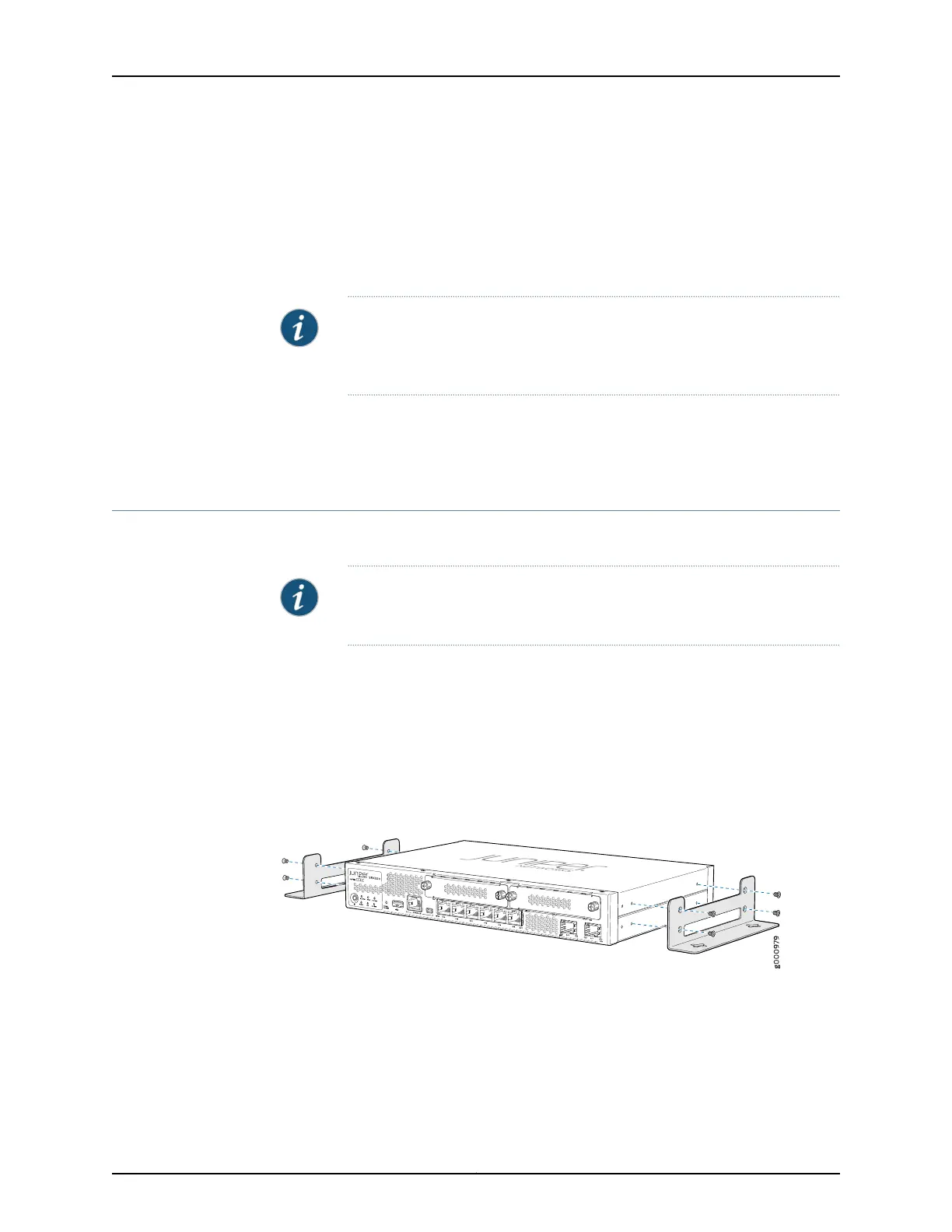

Figure 11: Attaching Wall-Mount Brackets
3. Use a number-1 Phillips screwdriver to install the screws that secure the mounting
brackets to the chassis.
4. If you are using wall anchors to support the chassis, install two pairs of anchors on
the wall with the mounting brackets attached.
5. Have one person grasp the sides of the device, lift it, and position it on the wall.
57Copyright © 2016, Juniper Networks, Inc.
Chapter 14: Installing the SRX320 Services Gateway
