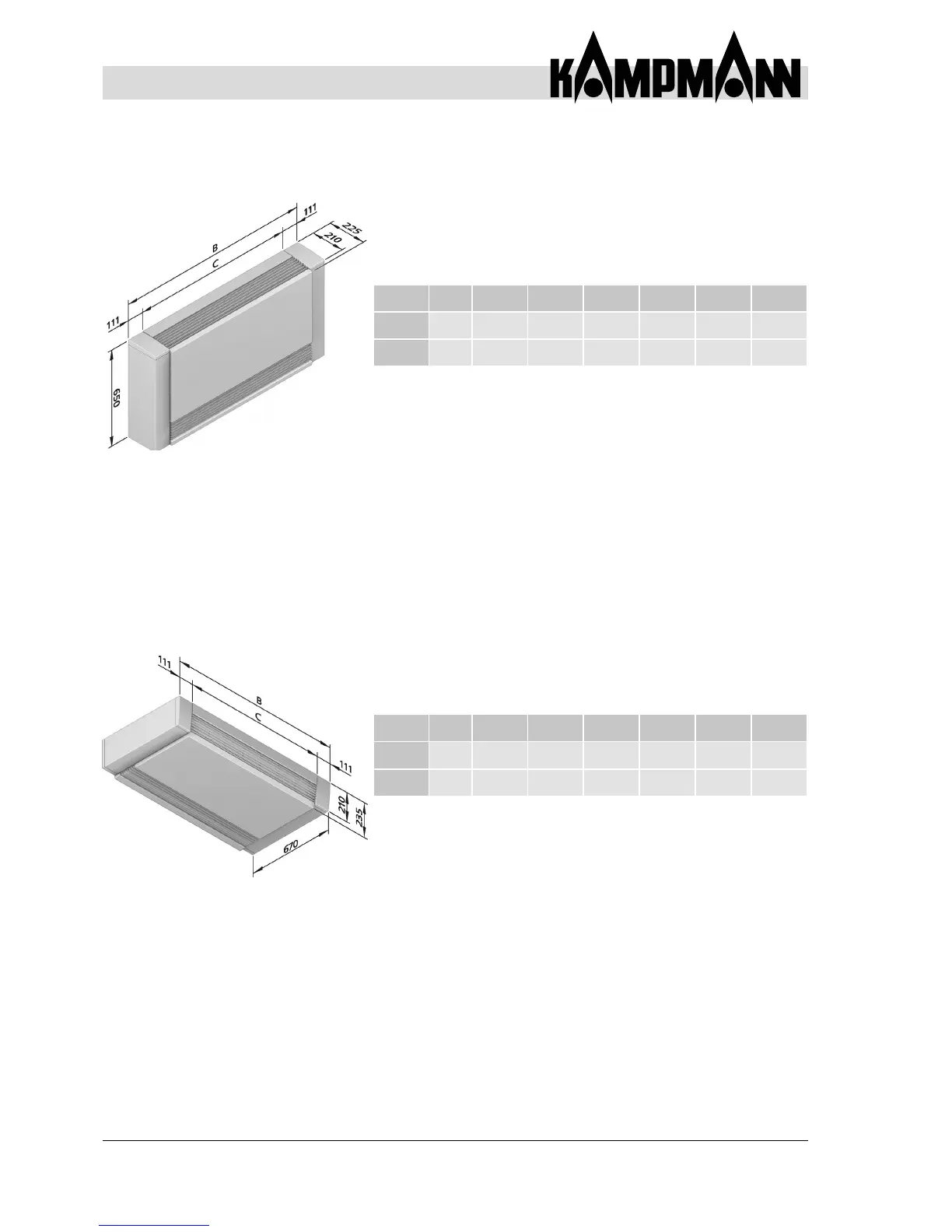

Main Dimensions
Fig. 3: Casing, wall-standing
Casing, wall-mounted with intake
grille
Technical Data
Fig. 4: Ceiling casing
Ceiling panel with air intake grille
and end panel
Mod 1 Mod 2 Mod 3 Mod 5 Mod 5 Mod 6 Mod 7
B [mm] 850 1000 1150 1300 1450 1600 2000
C [mm] 628 778 928 1078 1228 1378 1778
Mod 1 Mod 2 Mod 3 Mod 4 Mod 5 Mod 6 Mod 7
B [mm] 850 1000 1150 1300 1450 1600 2000
C [mm] 628 778 928 1078 1228 1378 1778
