Installing the Casing
6.5 Installing the Casing
The following instructions apply to all casings (wall, ceiling,
free-standing):
Fit the side mullions (only with units with optional casing) after
assembly and installation of the fan coil. The screws (one per side)
arefactory-ttedonthebasicunitcasing(Fig.22).
-Loosenfactory-ttedscrewsfromthecasing
- Suspend side mullions by their guides into the brackets on the
basic unit (Fig. 23).
- Screw side mullions to the basic unit casing (Fig. 24).

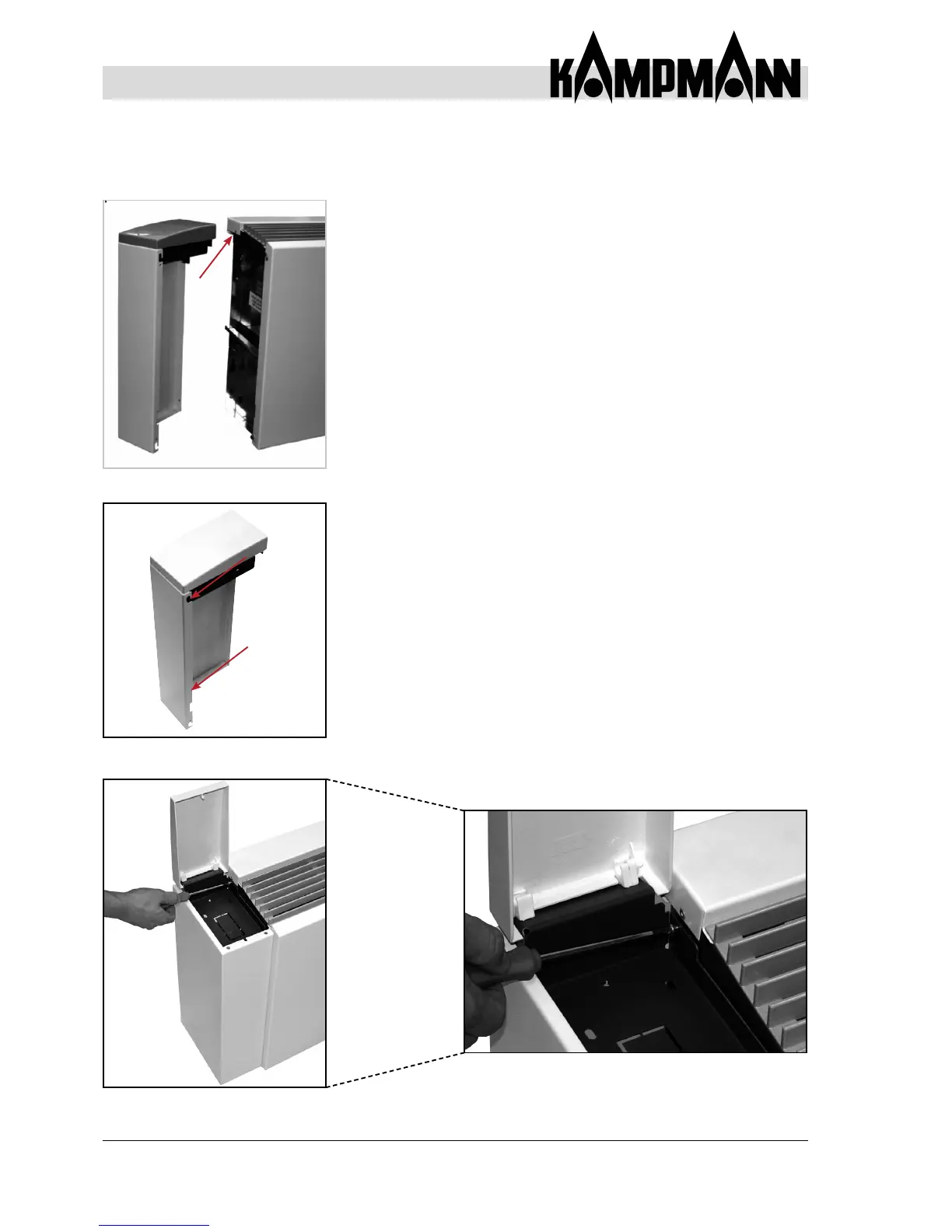

Fig. 22: Loosen screw
Fig. 23: Suspend side mullions
Fig. 24: Screw on side mullions
Fig. 25: Detail: Tighten screw
