15
Technical Data
Main Dimensions

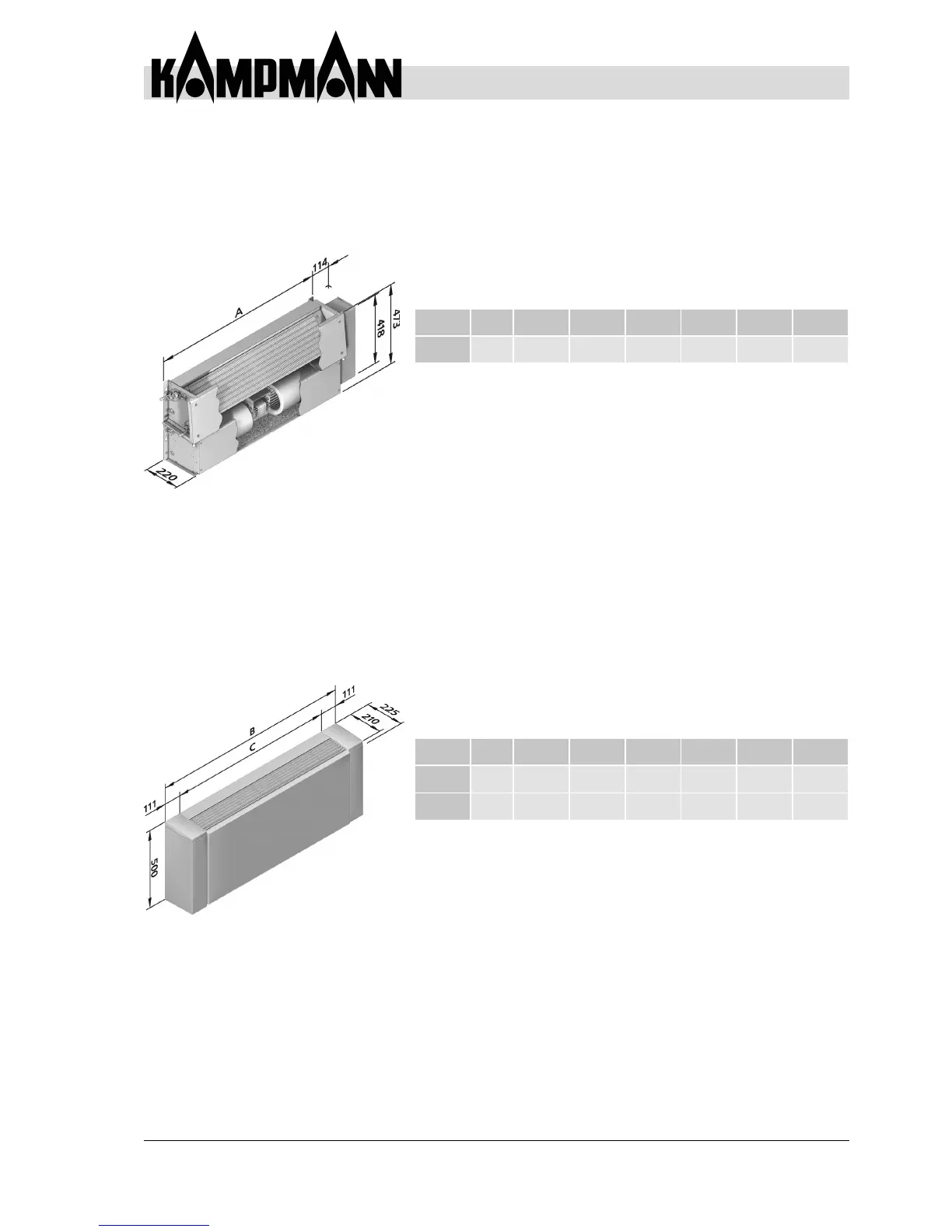

Fig. 1: Basic unit
Fig. 2: Casing, wall-mounted
Basic unit
Casing, wall-mounted without
intake grille
3 Technical data
3.1 Main Dimensions
Mod 1 Mod 2 Mod 3 Mod 4 Mod 5 Mod 6 Mod 7
A [mm] 620 770 920 1070 1220 1370 1770
The basic wall-mounted and ceiling unit is identical. The
different versions of heat exchanger do not affect the main
dimensions.
Mod 1 Mod 2 Mod 3 Mod 4 Mod 5 Mod 6 Mod 7
B [mm] 850 1000 1150 1300 1450 1600 2000
C [mm] 628 778 928 1078 1228 1378 1778
