Installation and Connection
Changing the Air Outlet Direction

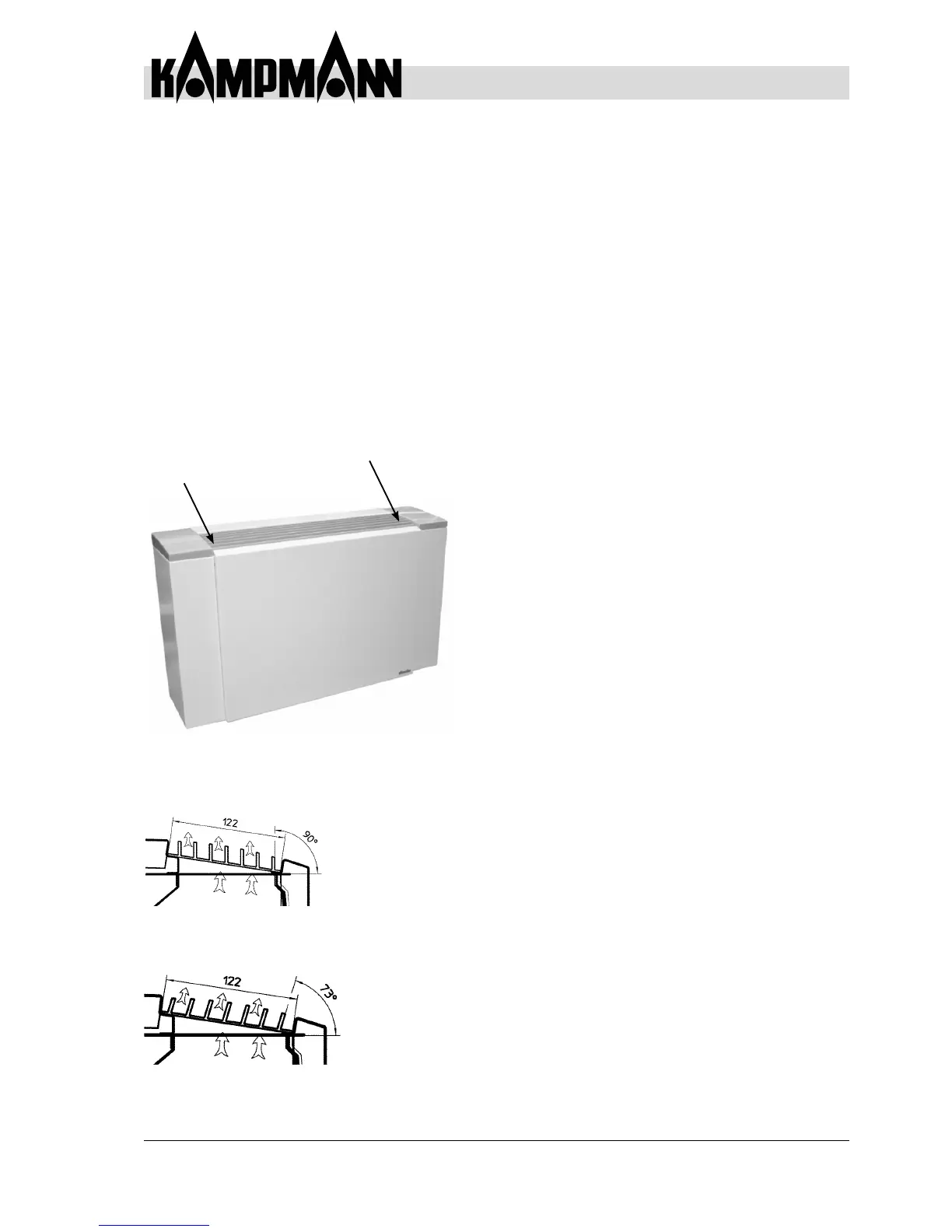

Fig. 26: Loosen bolts
The air outlet direction can be changed, although the unit is
factory-conguredtoblowairintotheroom.Theoutletairgrille
can be moved around 180 degrees if a vertical air outlet is required.
- Use a Philips screwdriver to loosen and remove the screws
(Fig. 26).
- Turn the air outlet grille by 180 degrees so that the discharge
direction points vertically upwards (Fig. 27).
- Fit the two screws into the drill holes provided.
Fig. 28 Room-side air discharge
direction
Fig. 27: Vertical air discharge
direction
6.6 Changing the Air Outlet Direction
