Installation and Connection
Installing Accessories
Caution: Reduced air volume and thus also reduced heating and/
or cooling output is possible with the use of air-side ductwork
accessories!
6.7 Installing Accessories

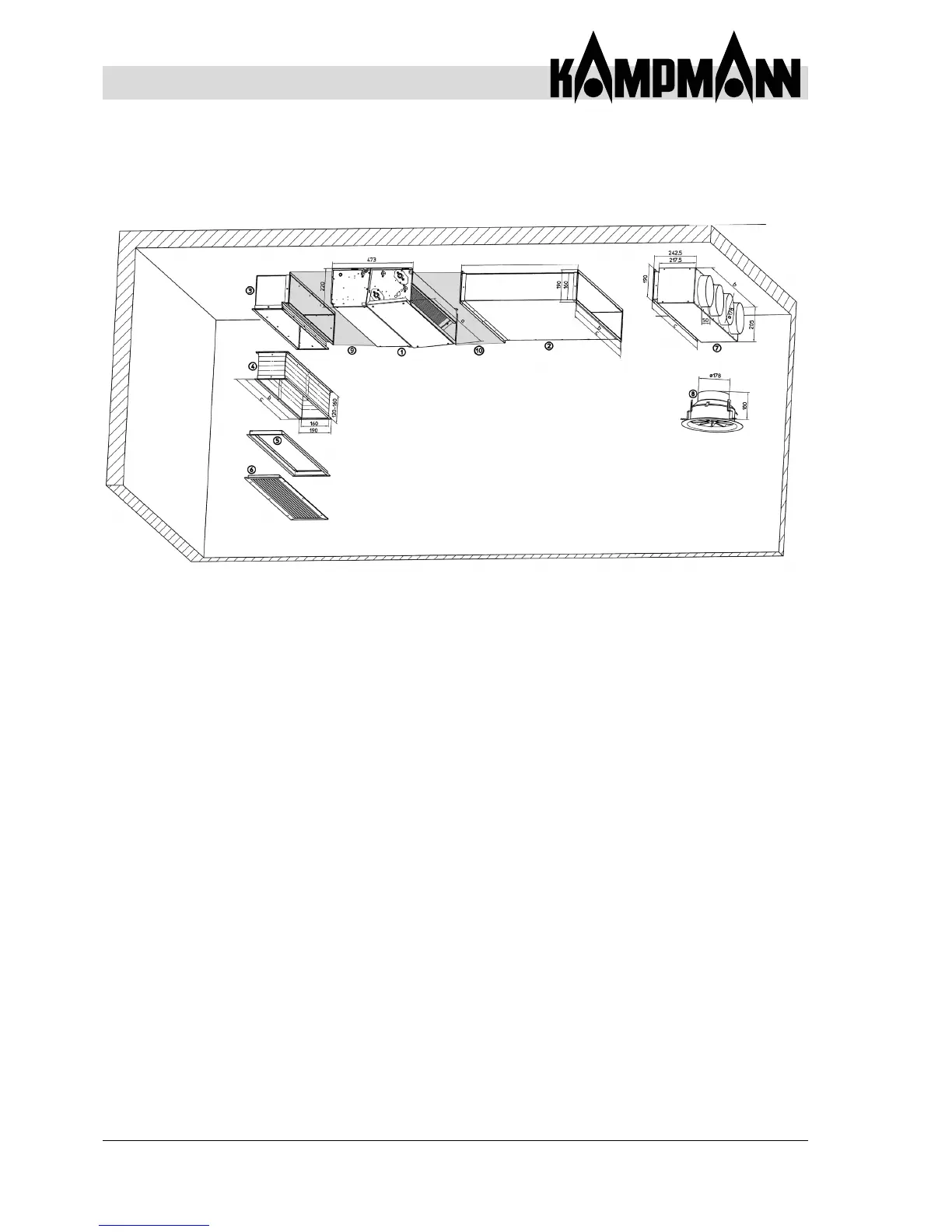

Fig. 29: Sheet steel accessories
Description of parts
1
Venkon fan coil recirculation air basic unit
2
Air duct, long, type 14835BB0B*01
3
Air duct angled section 90°, type 14835BB0B*03
Short bend, e.g. with ceiling arrangement as a transition from horizontal to vertical ductwork
4
Flexible connection, type 14835BB0B*04
Withframeonbothsidesandexiblecanvasconnectionforstructure-bornenoisedecouplingandlength
compensation of on-site dimensional inaccuracies. Installed length varies from 120 - 160 mm.
5
Intermediate frame (contained in the air intake / outlet frame)
6
Air inlet and outlet grille, type 14837BB0B*02
Lineargrilleforinstallationinasuspendedceilingorcasing,dropletprole,naturalaluminiumanodised,
airow-optimised,withZU-frame,freeareaapprox.68%withintermediateframe
7
Round pipe connection unit, type 14835BB0B*05
Flexible pipe connections for 180 mm
8
Ceiling swirl diffuser, type 14837BB0B001
Round,white,forconnectiontoa180mmexibletube
9
Air intake box with primary air connector, type 14835BB0B*07, (position shown in grey)
bl
Air outlet box with primary air connector, type 14835BB0B*08, (position shown in grey)
L = 1000 (non-standard length on request)
