Installation and Connection
Installation in customer casing
Installation in customer casing
Models 1 2 3 4 5 6 7
A 620 770 920 1070 1220 1370 1770
B 590 740 890 1040 1190 1340 1740
Fitting dimension
of outlet air grilles
553 703 853 1003 1153 1303 1703
C 590 740 890 1040 1190 1340 1740
Caution: Provide adequate inspection
openings and air openings needed for
operation when using customer‘s
own casings.

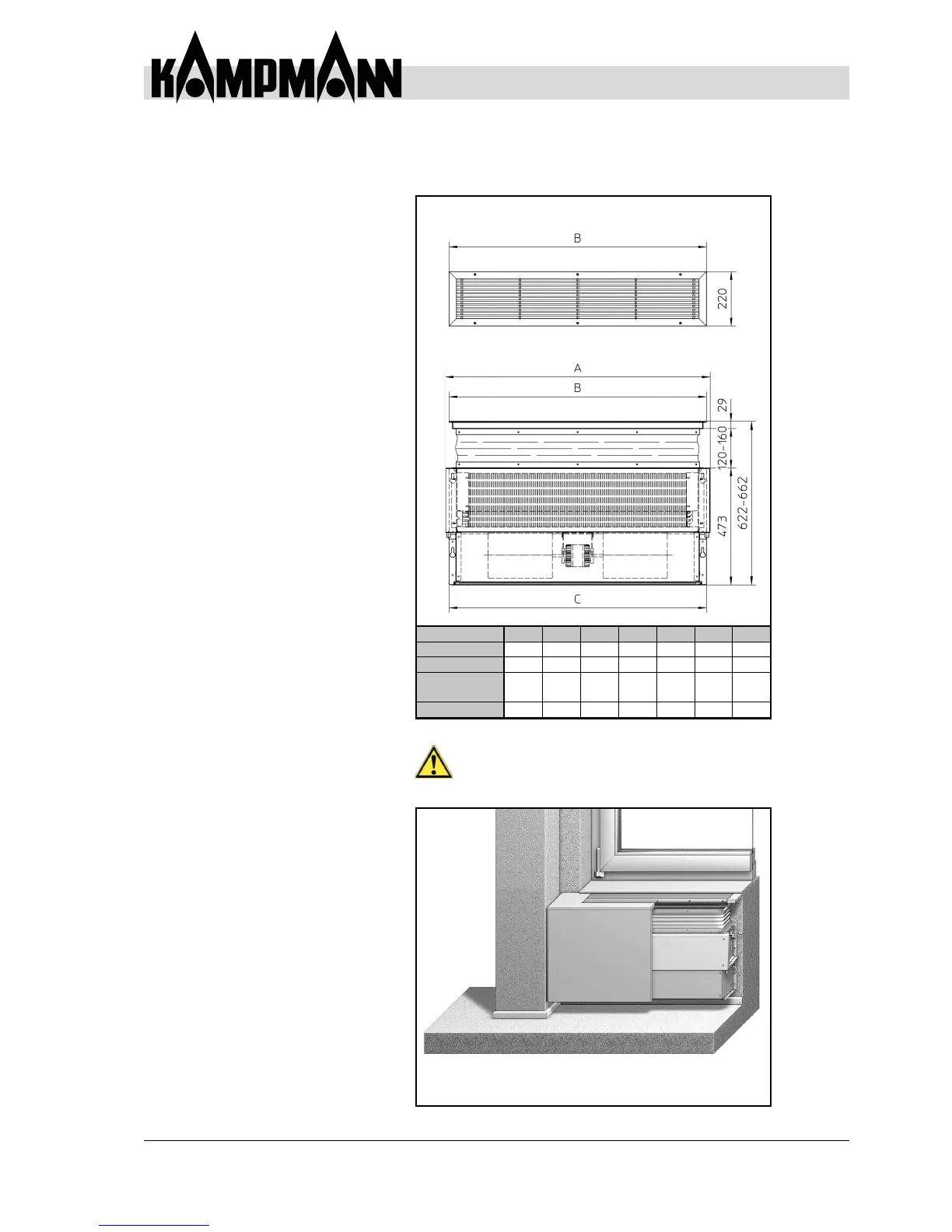

Fig. 31: Example of basic fan coil unit (recirculation
air) with customer‘s casing
Fig. 30: View of air intake / air outlet grille
