Installation and Connection
Valve kit dimensions

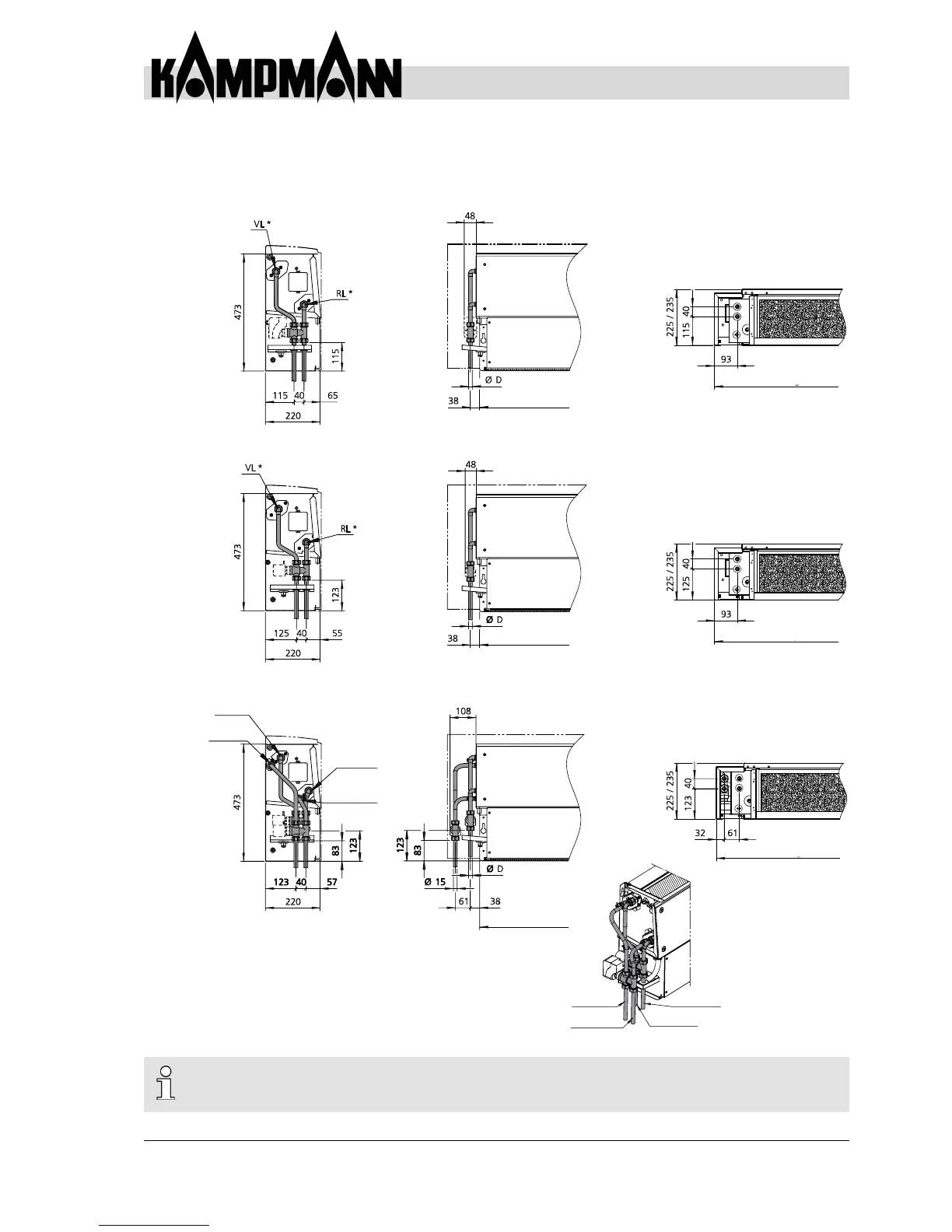

6.10 Valve Kit Dimensions
Valve kit 422/442
The valve kits are factory-tted and checked for leak-tightness. The pipes are
pre-assembled above the side condensate tray (optional accessory) and can be connected
by the contractor. Suitable connecting pipes are provided separately.
*
*
*
*
2-pipe, 3-row
2-pipe, 4-row
4-pipe, 4-row
Side view
Side view
Side view
Rear wall
Front view
Rear wall
Rear wall
Flow*
Return*
Return 1/2“
cooling
heating
Flow 1/2”
cooling
heating
Front view
Front view
Casing
View from below
(with casing)
Casing
View from below
(with casing)
Casing
View from below
(with casing)
General view
(without casing)
All dimensions in mm
*Model1-4:1/2”
*Model5-7:3/4”
ØD:Model1-415mm
ØD:Model5-718mm
Flow,
heating
Return,
heating
Return,
cooling
Flow,
cooling
