Venkon EC 115 V
52
52
Installation and Connection
Valve kit dimensions
Seitenansicht links
Ansicht von unten
(mit Verkleidung)
Vorderansicht
Seitenansicht links
Ansicht von unten
(mit Verkleidung)
Vorderansicht
Seitenansicht links
Ansicht von unten
(mit Verkleidung)
Vorderansicht
Ventilkit 222
Ventilkit 222
Ventilkit 242

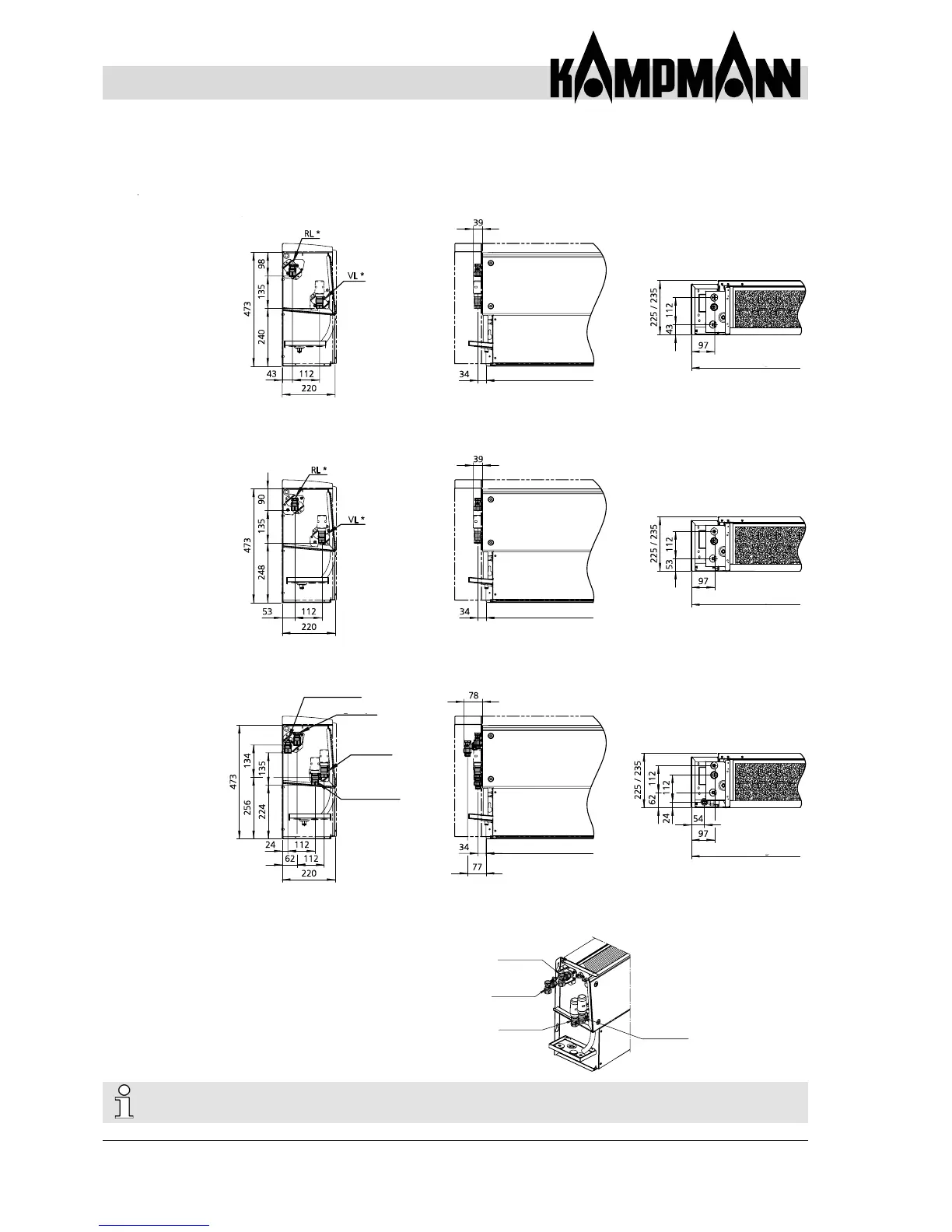

6.10 Valve Kit Dimensions
Valve kit 222/242
The valve kits are factory-tted and checked for leak-tightness.
Left side view
Left side view
Left side view
2-pipe, 3-row
2-pipe, 4-row
4-pipe, 4-row
Valve kit 222
Valve kit 222
Valve kit 242
Rear wall
Rear wall
Rear wall
Front view
Front view
Front view
Casing
View from below
(with casing)
Casing
View from below
(with casing)
Casing
View from below
(with casing)
Return heating 1/2“
Flow
cooling*
Flow
heating 1/2“
Return cooling*
All dimensions in mm
*Model1-4:1/2”
*Model5-7:3/4”
General view
Flow,
heating
Return,
heating
Return,
cooling
Flow,
cooling
