Operation
Connecting the Condensate Pump
l

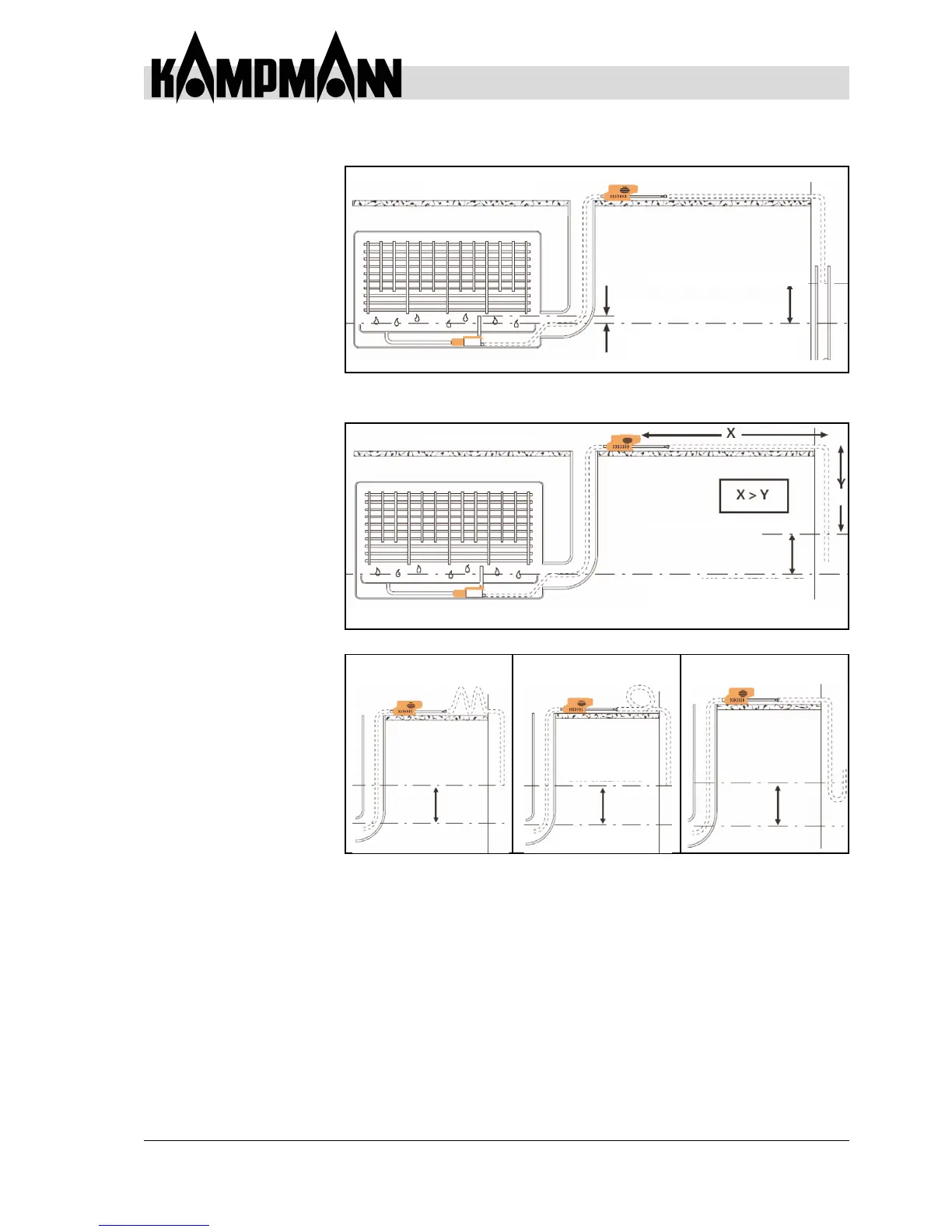

More horizontal than vertical line length in the pressure pipe
Refer to chapter 8 „Maintenance“ for maintenance instructions for the condensate pump.
Generation of additional
resistance in the pressure line
Add a bend Install a trap at the end of the
pressure line
SUSPENDED CEILING
END OF THE PRESSURE LINE
END OF VENT HOSE
WATER LEVEL IN THE
CONDENSATE TRAY
SUSPENDED CEILING
END OF THE PRESSURE LINE
END OF THE
PRESSURE LINE
WATER LEVEL IN THE
CONDENSATE TRAY
WATER LEVEL IN THE
CONDENSATE TRAY
