Operation
Overview of Components
1
Casingextension,powdercoated,trafcwhite,RAL9016
2
Air outlet, powder coated, RAL 9006
3 Air intake grille, powder coated, RAL 9006
4
Side mullions for the casing, powder coated, RAL 9016
5
Radial fans
6
Copper/aluminium heat exchanger
7
G2(EU2)drylayerlter(designforstandardunit)
8
Fan unit
9
Electrical junction box
bl
Supply air temperature sensor (mixed air only)
bm
Condensatepumpwithoatswitch(accessory)
bn
Flow and return connections with vent/drain in each case
bo
Terminal box for actuator
bp
Main condensation tray with a drain connector on both sides
bq
Valve kit with pipe connection, valve, actuator (accessories)
br
Side condensate tray (accessories)
2
1
4
5
6
7
8
9
3
br
bl
bm
bn
bn
bo
bp
bq

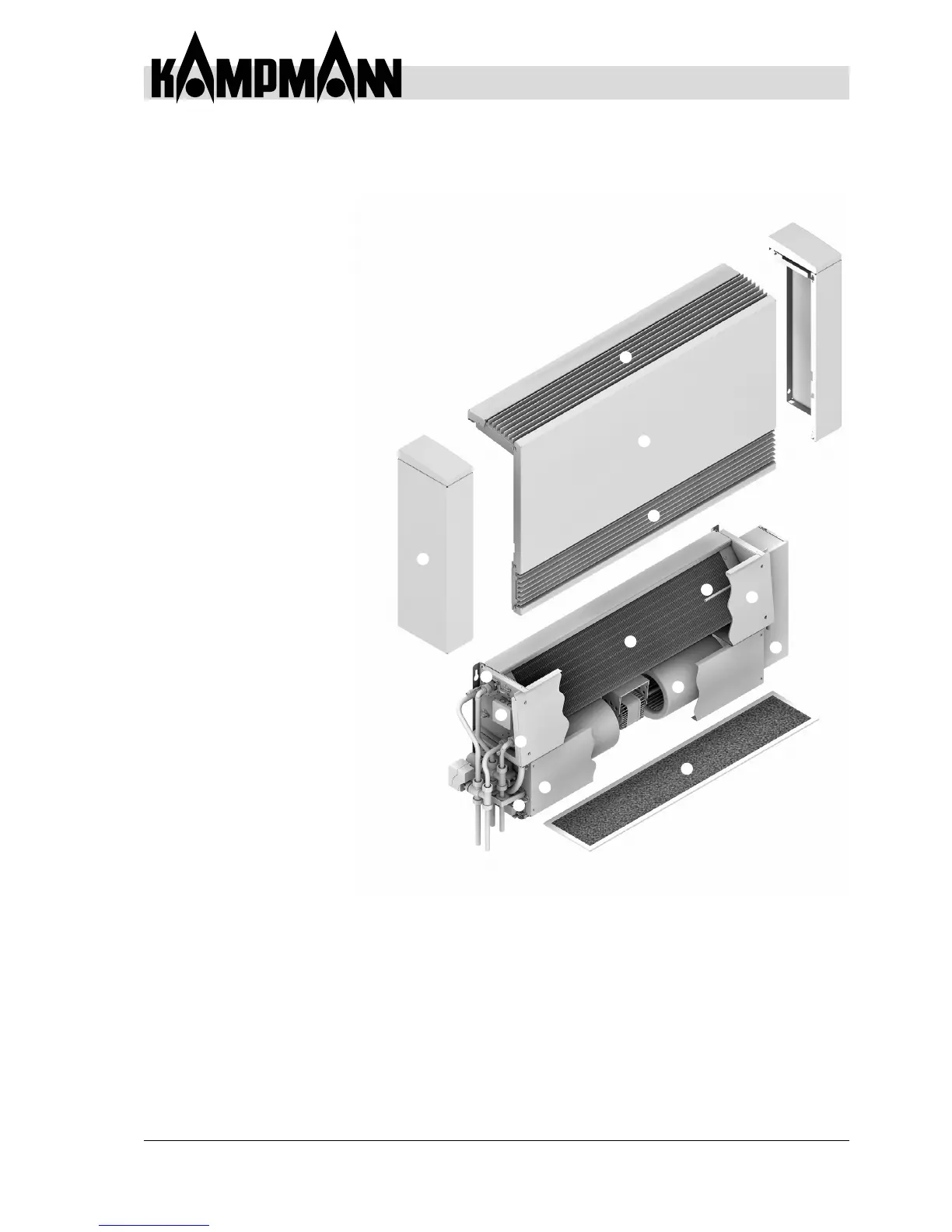

Fig. 50: Overview of Components
