Model 6220/6221 Reference Manual Calibration 17-9
Return to Section 17 topics

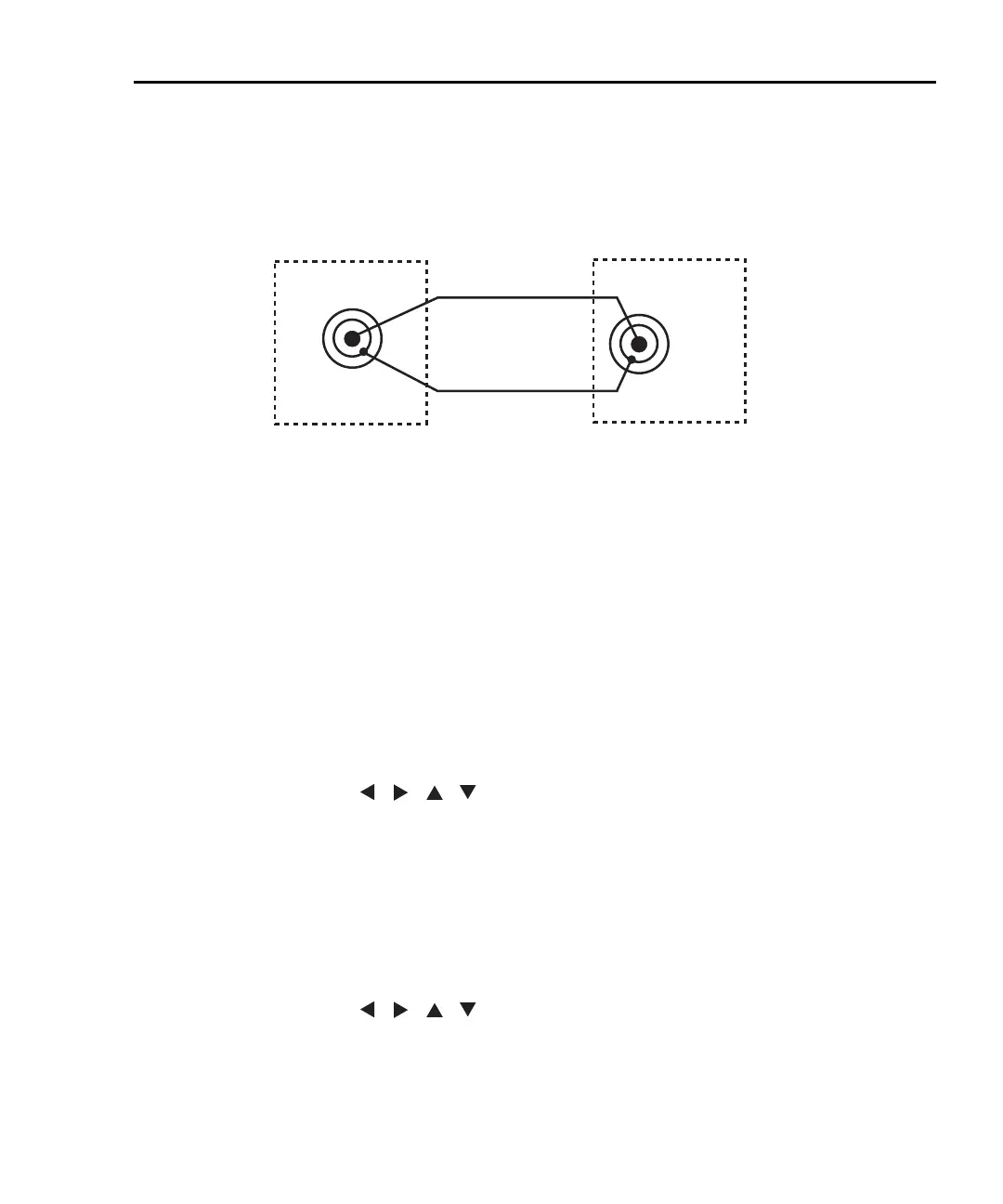

Figure 17-2
Connections for current source calibration (2nA and 20nA ranges)
Step 3: Calibrate compliance
1. Connect the digital multimeter (DMM) to the Model 6220/6221 as shown in
Figure 17-3 and select the DMM DC volts function with auto range enabled.
2. From the main calibration menu, select EXECUTE, and press ENTER. The
unit will display:
CALIBRATION
SOURCE COMPLIANCE GUARD WAVE (WAVE displayed only for 6221)
3. Select COMPLIANCE, then press ENTER. The unit will display:
20V COMPLIANCE CAL
Press ENTER to Output +2.0000mA
4. Press ENTER to output +2mA for 20V compliance calibration. The instru-
ment will prompt as follows:
DMM RDG=+020.0000V
Use , , , , ENTER, or EXIT
5. Note the DMM reading, then adjust the Model 6220/6221 display to agree
with that value.
6. Press ENTER. The display will prompt:
.1V COMPLIANCE CAL
Press ENTER to Output +2.0000mA
7. Press ENTER to output +2mA for 0.1V compliance calibration. The instru-
ment will prompt as follows:
DMM RDG=+0.100000V
Use , , , , ENTER, or EXIT
8. Note the DMM reading, then adjust the Model 6220/6221 display to agree
with that value.
High
Low
Output
6220/6221
Picoammeter
(Measure DC Current)
Input
Low
High
