Data Acquisition / Multimeter System User's Manual Section 2: Front-
panel overview
DAQ6510-900-01Rev. A / April 2018 2-9
FUNCTIONS swipe screen
The FUNCTIONS swipe screen highlights the selected measure function and allows you to select a
different function.

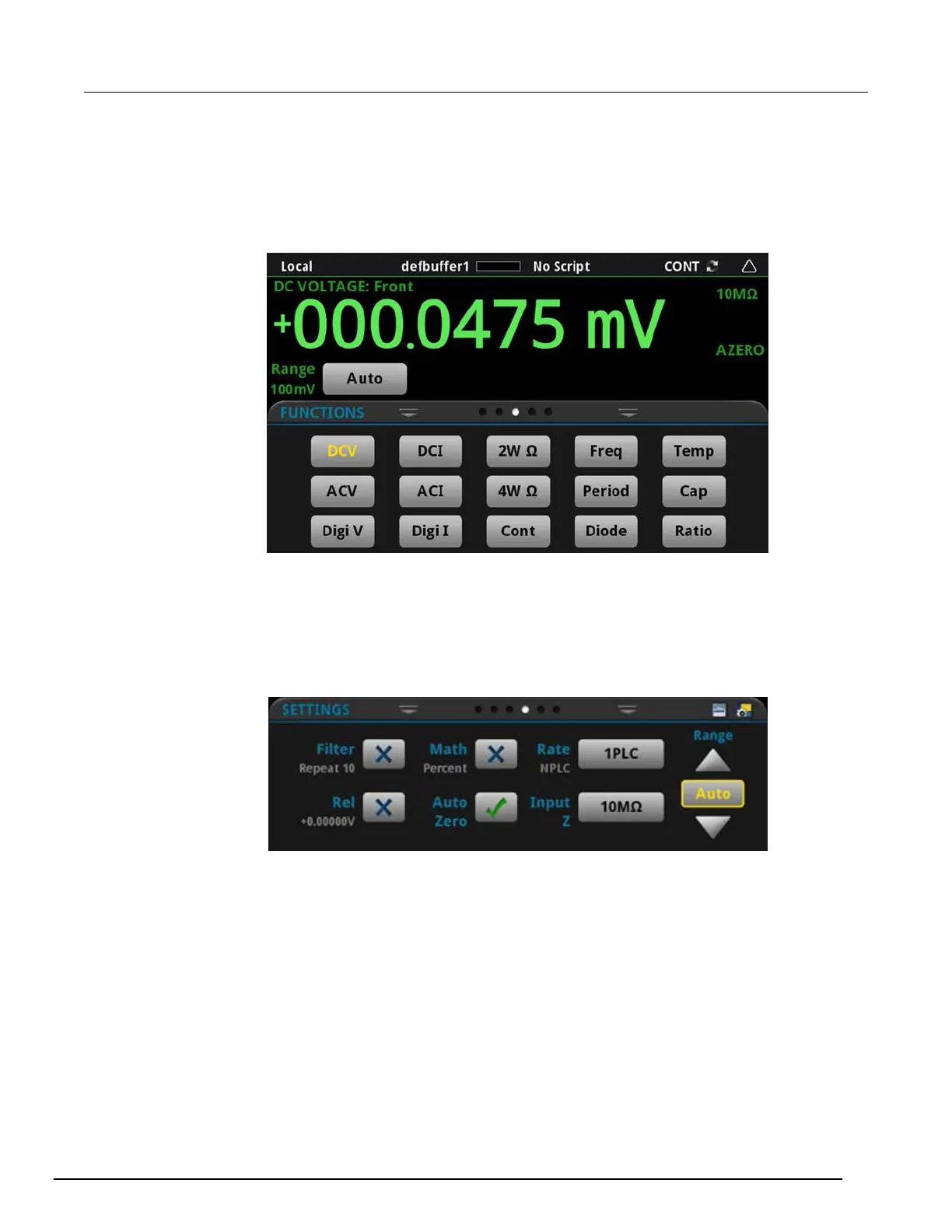

Figure 6: FUNCTIONS swipe screen
SETTINGS swipe screen
The SETTINGS swipe screen gives you front-panel access to some instrument settings for the
selected measure function. It shows you the present settings and allows you to change them. The
available settings depend on which measure function is active.
Figure 7: SETTINGS swipe screen
To disable or enable a setting, select the box next to the setting so that it shows an X (disabled) or a
check mark (enabled).

Keithley DAQ6510 Specifications

General

Measurement Functions	DC Voltage, AC Voltage, DC Current, AC Current, Frequency, Temperature, Capacitance
Frequency Range	3 Hz to 300 kHz
Temperature Range	-200°C to 1820°C
Connectivity	USB, Ethernet, GPIB
Digit Display	6.5 digits
Channels	Up to 80 channels
Memory	Internal non-volatile memory for data storage
Power Supply	100 V to 240 V, 50 Hz to 60 Hz
Dimensions	213 mm x 297 mm x 88 mm (8.4 in x 11.7 in x 3.5 in)
Weight	3.6 kg
