Making connections
Connect the TSP-Link connector to one of the TSP-Link connectors on the rear panel of the
instrument.
The TSP-Link expansion interface uses CAT5 and RJ-45 connectors to connect up to 32 devices.

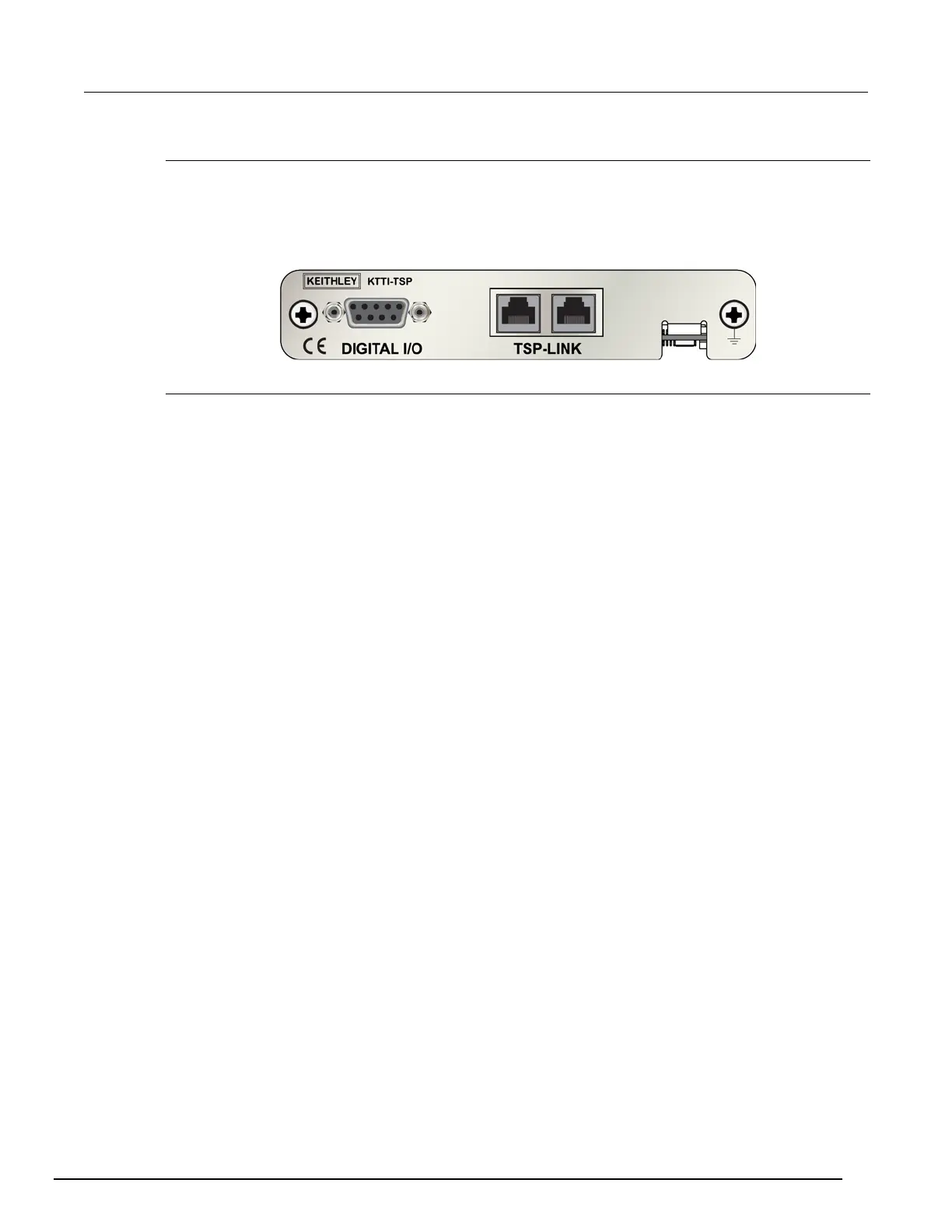

Figure 27: KTTI-TSP panel view
Additional information
Additional information is available in the KTTI-TSP Accessory Installation Sheet.
Using the web interface
The DAQ6510 web interface allows you to make settings and control your instrument through a web
page. The web page includes:
• Instrument status.
• The instrument model, serial number, firmware revision, and the last LXI message.
• An ID button to help you locate the instrument.
• A virtual front panel and command interface that you can use to control the instrument.
• Download access to a CSV file that contains reading buffer data.
• Administrative options and LXI information.
The instrument web page resides in the firmware of the instrument. Changes you make through the
web interface are immediately made in the instrument.
Connect to the instrument web interface
When the LAN and instrument establish a connection, you can open the web page for the instrument.
To access the web interface:
1. Open a web browser on the host computer.
2. Enter the IP address of the instrument in the address box of the web browser. For example, if the
instrument IP address is 192.168.1.101, enter 192.168.1.101 in the browser address box.
3. Press Enter on the computer keyboard to open the instrument web page.
4. If prompted, enter a user name and password. The default is admin for both.
