Keithley DAQ6510 User Manual

DAQ6510
Data Acquisition / Multimeter System User's Manual Section 7: Scanning resistors us
ing 4W measurement
DAQ6510-900-01Rev. A / April 2018 7-3
Device connections
This example application uses the DAQ6510 to perform a 4-wire measurement using multiple
channels on a 7700 multiplexer module.
For this example you will:
• Configure channels 101, 102, 103, 104, 105, and 106 to measure resistors (in this case, 100 Ω,
68 Ω, 10 Ω, 2.2 Ω, 0.5 Ω, and 0.2 Ω).
• Pair channels 111 to 116 with channels 101 to 106, respectively, to provide the SENSE
connections needed for 4-wire measurement.
• Select fixed ranges and apply offset compensation to each channel.
• Execute 100 scans for all selected channels.

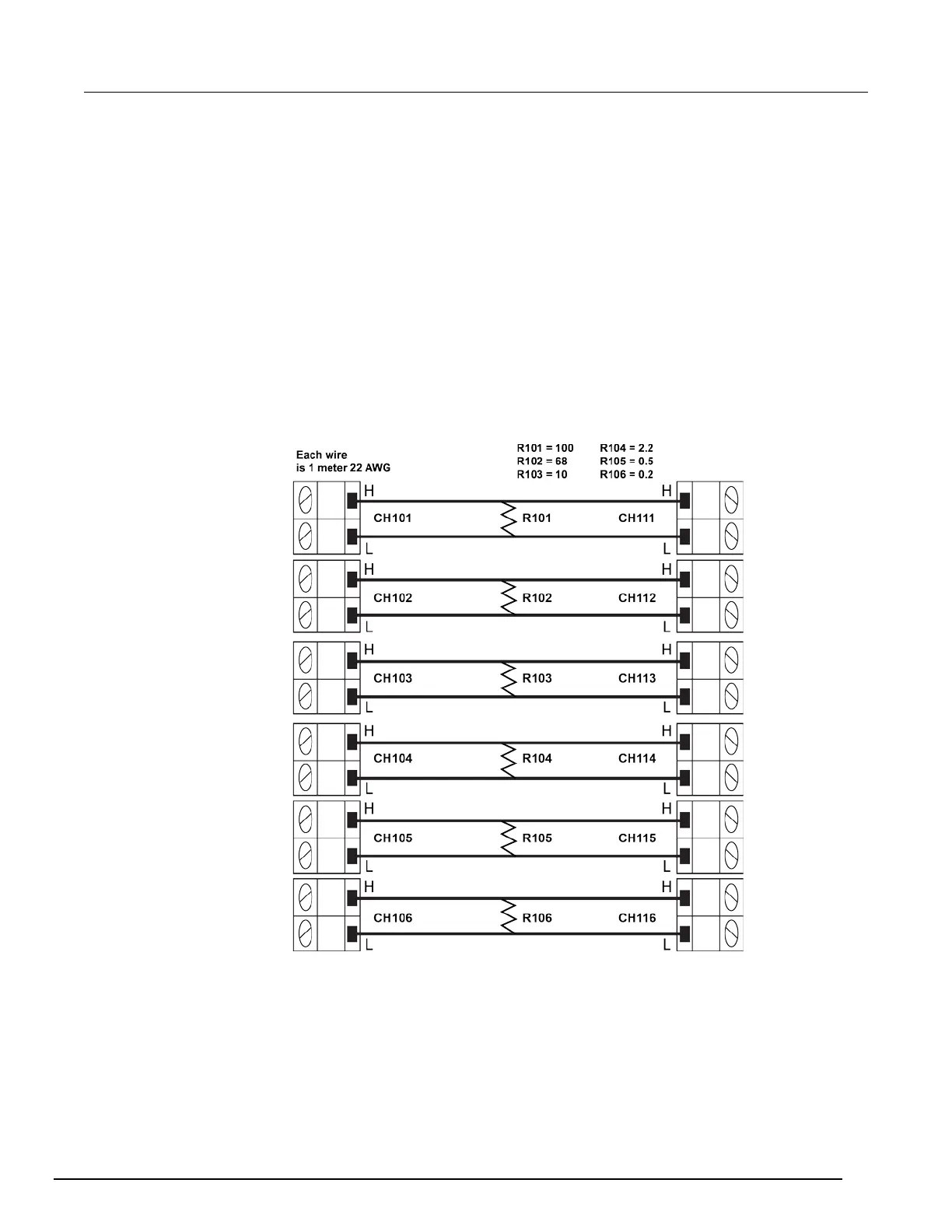

Figure 40: Schematic of 4W measurement

Keithley DAQ6510 Specifications

General

Measurement Functions	DC Voltage, AC Voltage, DC Current, AC Current, Frequency, Temperature, Capacitance
Frequency Range	3 Hz to 300 kHz
Temperature Range	-200°C to 1820°C
Connectivity	USB, Ethernet, GPIB
Digit Display	6.5 digits
Channels	Up to 80 channels
Memory	Internal non-volatile memory for data storage
Power Supply	100 V to 240 V, 50 Hz to 60 Hz
Dimensions	213 mm x 297 mm x 88 mm (8.4 in x 11.7 in x 3.5 in)
Weight	3.6 kg
