Data Acquisition / Multimeter System User's Manual Section 5:
Scanning temperature using thermocouples
DAQ6510-900-01Rev. A / April 2018 5-7
Test results
The following figures show sample results and final test measurements for this application.
1. The horizontal progress bar is completely green when the connections at the screw terminals and
at the DUT are secure. The SCAN swipe screen provides the time remaining (in seconds) and the
scan countdown.

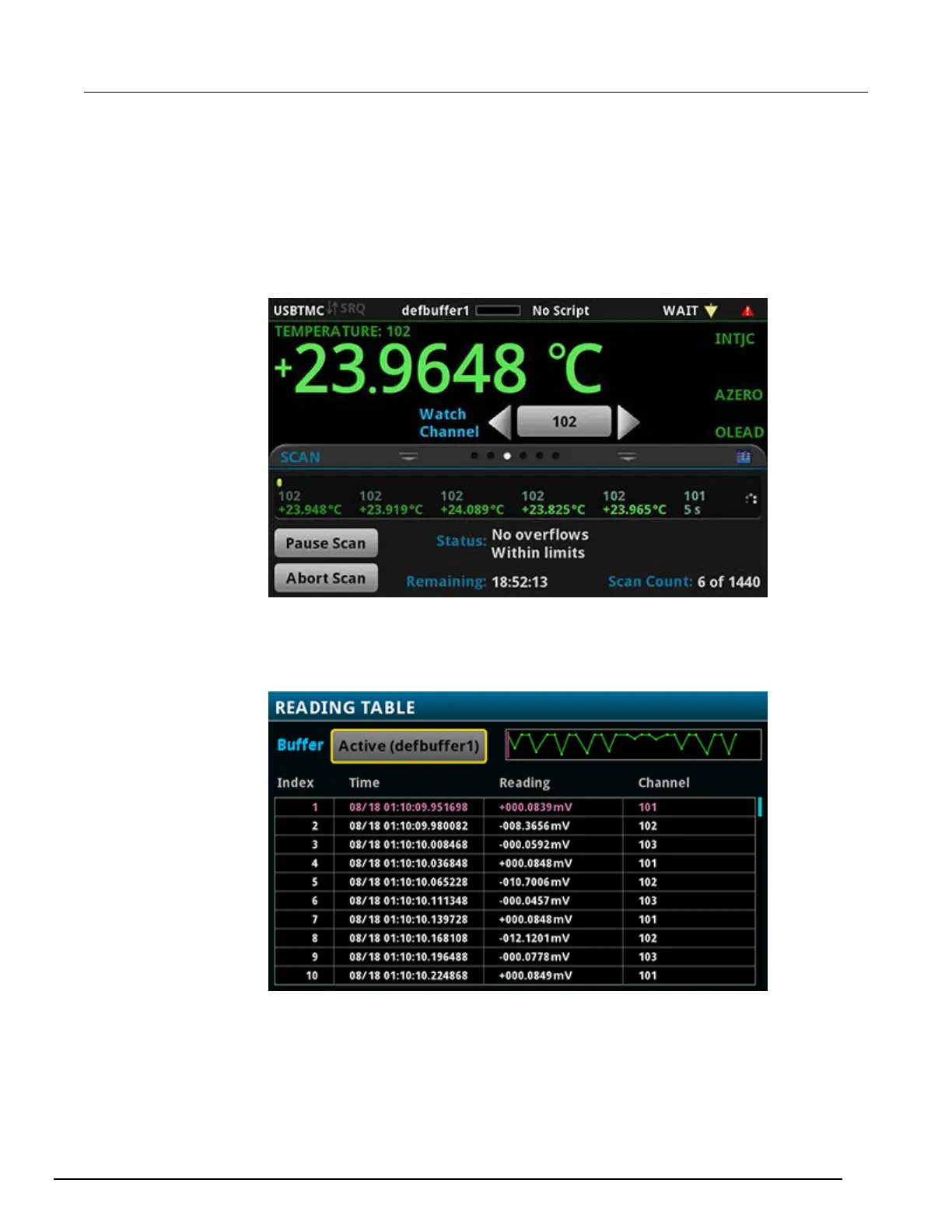

Figure 35: DAQ6510 scan start screen
2. If you have data on the USB flash drive and want to review it prior to completion, pause the scan,
remove the drive, copy the data file to your PC, return the drive to the DAQ6510, and resume the
scan.
Figure 36: Temperature scan results

Keithley DAQ6510 Specifications

General

Measurement Functions	DC Voltage, AC Voltage, DC Current, AC Current, Frequency, Temperature, Capacitance
Frequency Range	3 Hz to 300 kHz
Temperature Range	-200°C to 1820°C
Connectivity	USB, Ethernet, GPIB
Digit Display	6.5 digits
Channels	Up to 80 channels
Memory	Internal non-volatile memory for data storage
Power Supply	100 V to 240 V, 50 Hz to 60 Hz
Dimensions	213 mm x 297 mm x 88 mm (8.4 in x 11.7 in x 3.5 in)
Weight	3.6 kg
