Keithley DAQ6510

Section
5: Scanning temperature using thermocouples DAQ6510 Data Acquisition / Multimeter System
User's Manual
5-8 DAQ6510-900-01Rev. A / April 2018

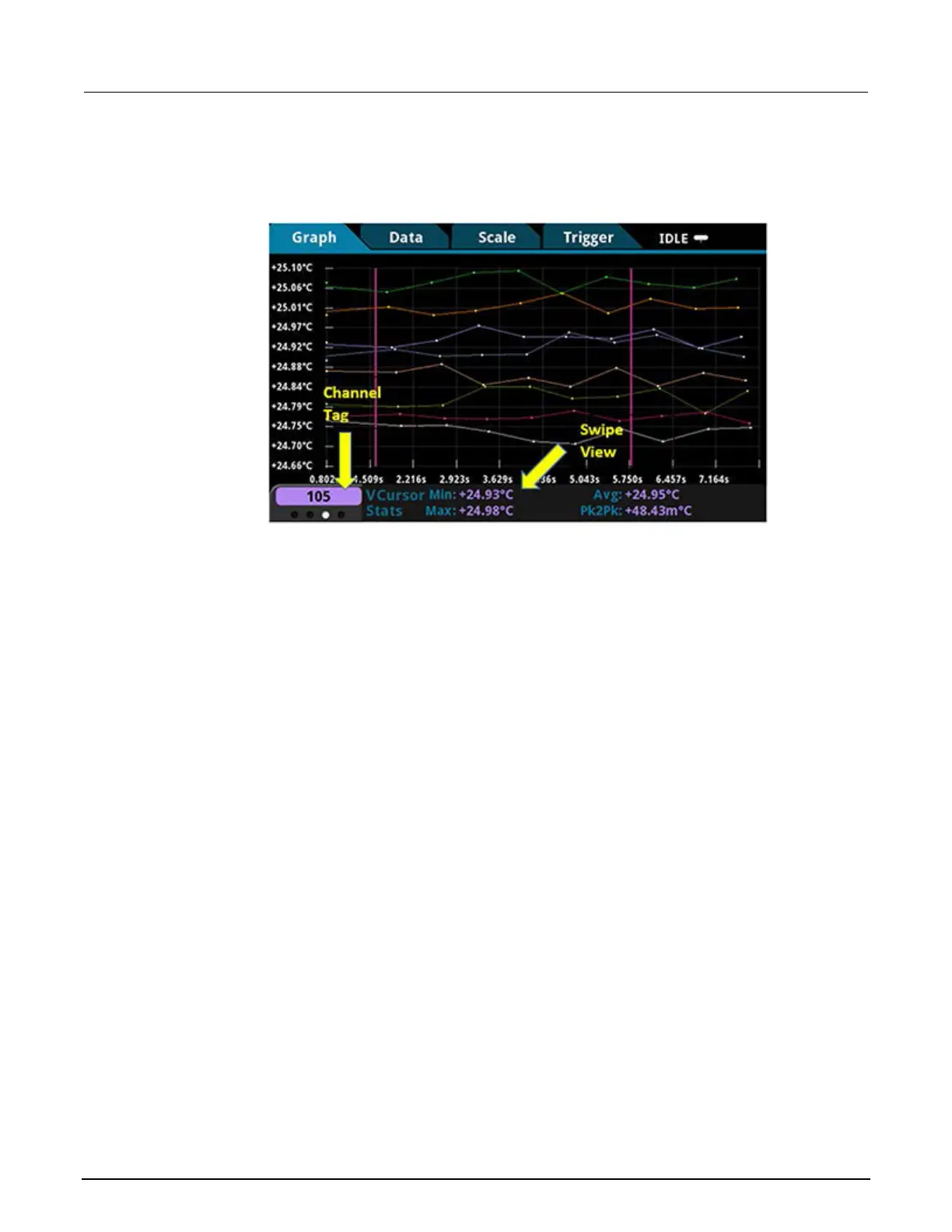

3. Once the scan is complete, the SCAN swipe screen provides you with additional options. You can
select different tabs that provide graphical data analysis options. The following figure shows a
sample graph for this application.
Figure 37: DAQ6510 graph UI four views.png
