10-10 Sweep Operation 2400 Series SourceMeter
®
User’s Manual
Sweep branching
When using a Source Memory Sweep while performing limit tests, the normal sequence of
sweep memory points can be changed. This is useful when, based on the results of an ini-
tial test, a different set of tests are needed.
The sweep can branch to a specified memory location point, or proceed to the next mem-
ory location in the list. When a memory location is specified, the sweep will branch to that
memory location if the test is successful (PASS condition). If not successful (FAIL condi-
tion), the sweep proceeds to the next memory location in the list. With NEXT selected (the
default), the sweep proceeds to the next memory location in the list regardless of the out-
come of the test (PASS or FAIL condition).

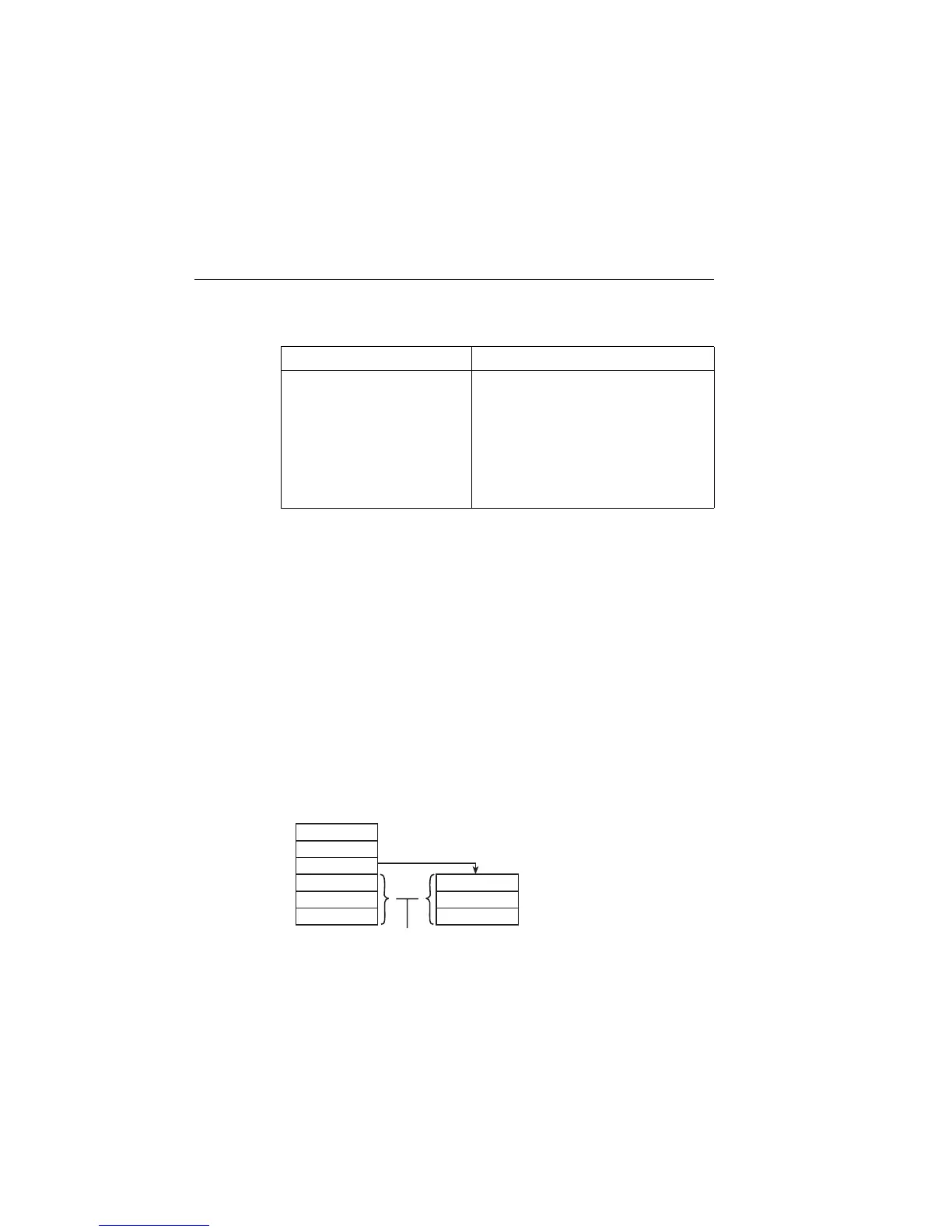

Figure 10-5 shows a six-point sweep branching example. In this case, the unit is pro-
grammed to branch to location 7 when a pass conditions occurs at location 3.
Figure 10-5
Six-point test branching example
Mode Remote command
Limit 1 bit pattern
Enable/disable Limit X**
Limit X upper limit
Limit X upper bit pattern
Limit X lower limit
Limit X lower bit pattern
Composite limits bit pattern
Next pass memory location
Trigger delay†
CALCulate2:LIMit[1]:COMPliance:SOURce2
CALCulate2:LIMitX:STATe
CALCulate2:LIMitX:UPPer[:DATA]
CALCulate2:LIMitX:UPPer:SOURce2
CALCulate2:LIMitX:LOWer[:DATA]
CALCulate2:LIMitX:LOWer:SOURce2
CALCulate2:CLIMits:PASS:SOURce2
CALCulate2:CLIMits:PASS:SMLocation
TRIGger:DELay
*X = CURRent or VOLTage.
** Limit X = Limit 2, 3, 5-12.
† Not available when the Model 2430 is in the Pulse Mode.
Table 10-2 (continued)
Source memory saved configurations
Source Memory Locations
Pass
Should be the same to
maintain triggering sequence.
1
2
3
4
5
6
7
8
9
