18-114 SCPI Command Reference 2400 Series SourceMeter
®
User’s Manual
The parameter listing provides the key-press code in numeric order. Fig-
ure 18-3 also illustrates the key-press codes.
The queue for the :KEY? query command can only hold one key-press.
When :KEY? is sent over the bus, and the SourceMeter is addressed to
talk, the key-press code number for the last key pressed (either physi-
cally or with :KEY) is sent to the computer.
The key-press code number for the last key pressed (either physically or
with :key) is sent to the computer.

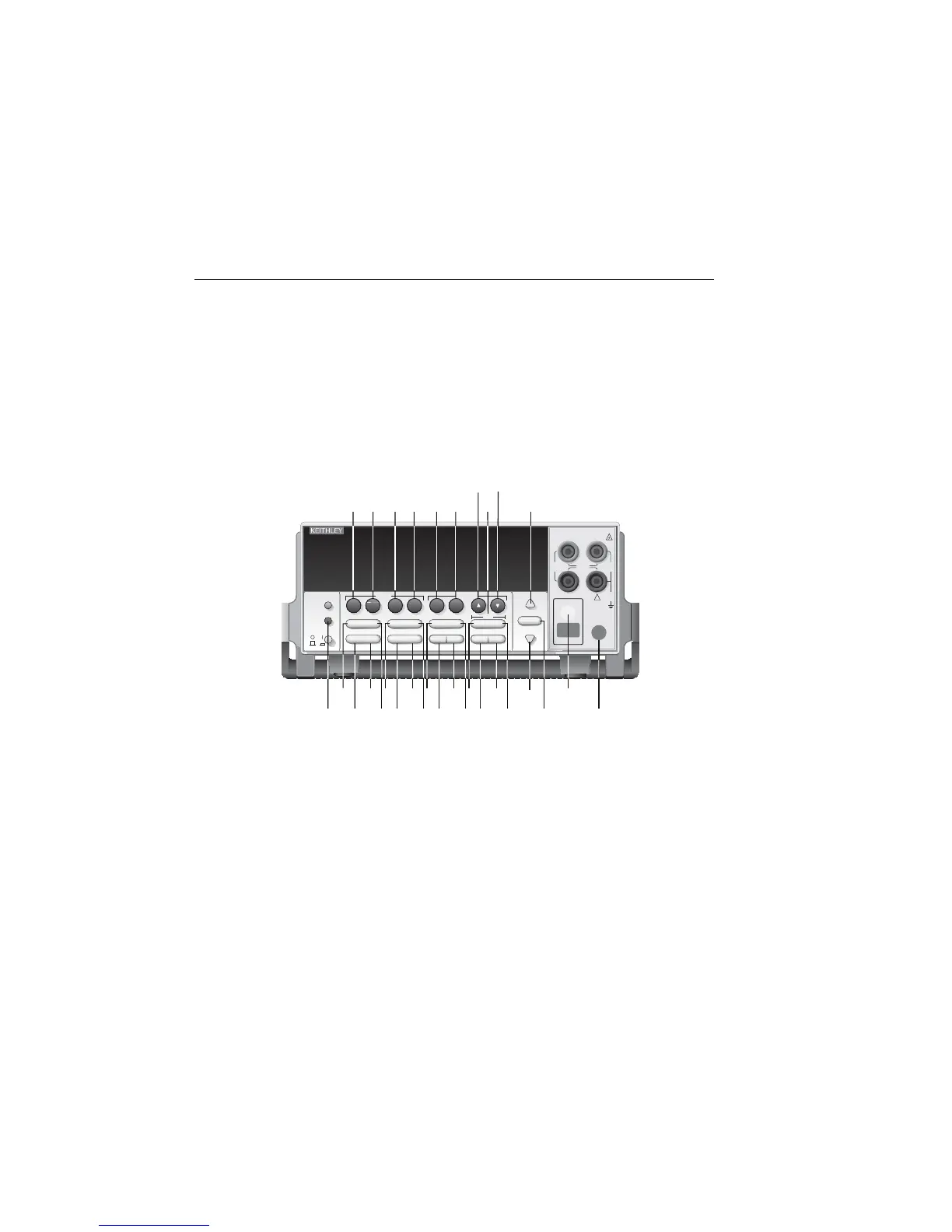

Figure 18-3
Key-press codes
2410 1100V SourceMeter
250V
PEAK
5V
PEAK
HI
LO
OUTPUT
1100V
PEAK
1100V
PEAK
EDIT
TOGGLE
POWER
RANGE
INPUT/
OUTPUT
4-WIRE
SENSE
DISPLAY
ON/OFF
TERMINALS
FRONT/
REAR
AUTO
RANGE
1
2
8
26
19125292215
16
23
31
7
30
6
14
21
13
20
28
4
27
3
11
18
10
17
9
32
24
Parameters
<NRf> = 1 RANGE up arrow key
2 SOURCE down arrow key
3 Left arrow key
4 MENU key
5 FCTN key
6 FILTER key
7 SPEED key
8 EDIT key
9 AUTO key
10 Right arrow key
11 EXIT key
12 V (SOURCE) key
13 LIMITS key
14 STORE key
15 V (MEAS) key
16 TOGGLE key
!
17 RANGE down arrow key
18 ENTER key
19 I (SOURCE) key
20 TRIG key
21 RECALL key
22 I (MEAS) key
23 LOCAL key
24 ON/OFF key
25 - (not used)
26 SOURCE up arrow key
27 SWEEP key
28 CONFIG key
29 Ω key
30 REL key
31 DIGITS key
32 FRONT/REAR key
EXIT ENTER
CONFIG MENU
SWEEP
TRIG
REL
LOCAL
FILTER
LIMIT
DIGITS SPEED
V
Ω
MEAS
I
FCTN
V
I
SOURCE
230
1
67
89
4
+/-
5
STORE
RECALL
EDIT
