C-2 Data Flow 2400 Series SourceMeter

User’s Manual

Introduction

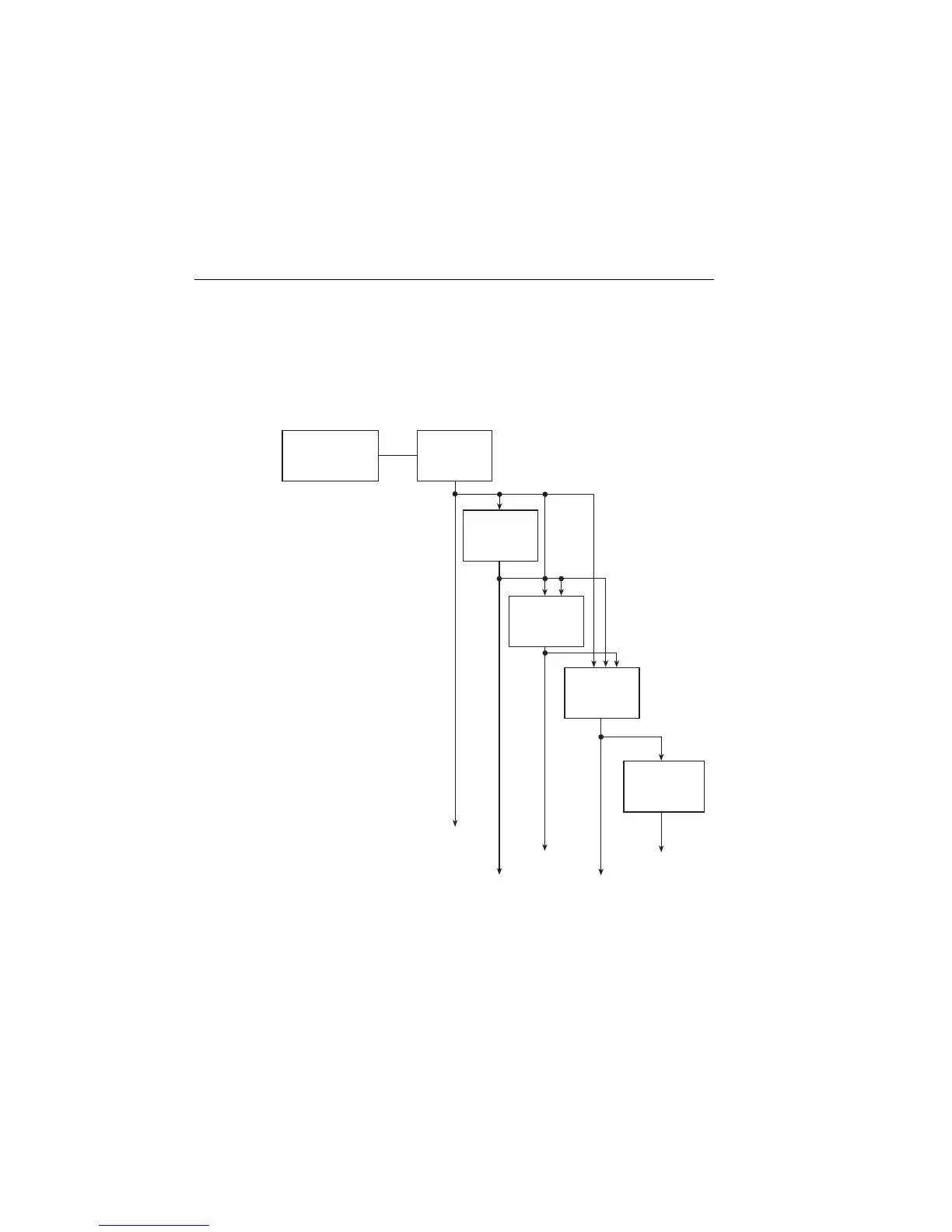

Data ﬂow for remote operation is summarized by the block diagram shown in Figure C-1.

Refer to this block diagram for the following discussion.

Figure C-1

Data ﬂow block diagram

SENSE

(Measurements)

Volts, Amps, Ohms,

Timestamp, Filter

Sample

Buffer

CALC1

Math

Expression

CALC2

Limit Tests

NULL (Rel)

Trace

(Data Store)

CALC3

Min, Max, Sdev

Mean, Pk-Pk

FETCh?

READ?

MEAS?

CALC1:DATA?

CALC2:DATA?

TRACe:DATA?

CALC3:DATA?
