KERN DHS User Manual

KLMC & DSP Controllers

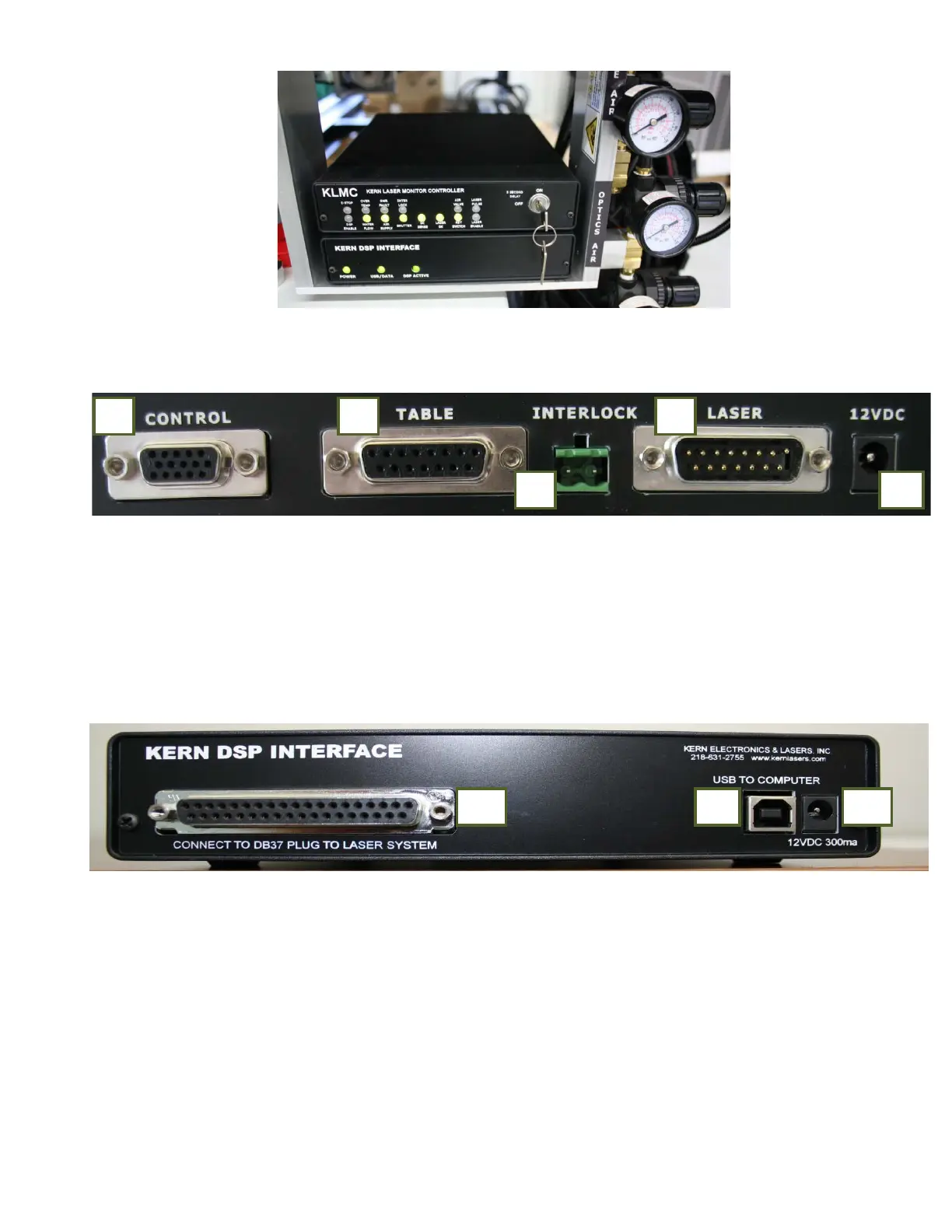

Kern Laser Monitor Controller (KLMC)
KLMC Back
1. Connect the HD15 male to the KLCM box.
2. Connect the DB15 male to the KLMC box.
3. Connect the green interlock plug to the KLMC box.
4. Connect the DB15 female to the KLMC box.
5. Connect the 12VDC power cord to the KLMC box.
6. Place key into the front of the KLMC box.
Digital Signal Processor (DSP)
DSP Back
1. Connect the DB37 male to the back of the DSP box.
2. Connect the USB cable to the DSP box.
3. Connect the 12VDC power cord to the DSP box.
1
2
1
2
3
4
5
3
12
