KERN DHS User Manual

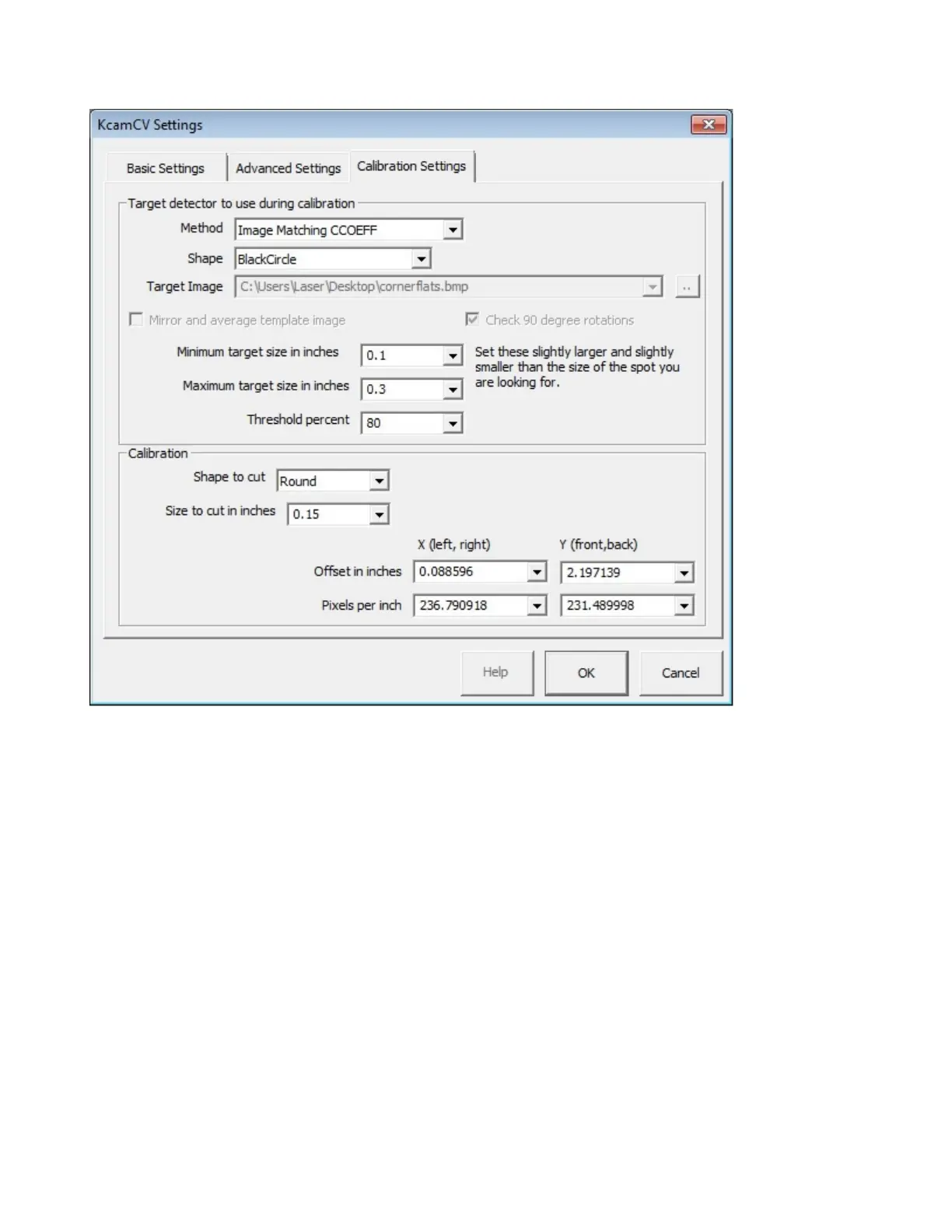

CALIBRATION SETTINGS TAB
Target Detector Method: Matching algorithm used for calibration tests.
Target Detector Shape: Preloaded image files for calibration tests. Default is BlackCircle.
Target Detector Image: Custom .BMP file used for calibration tests.
Mirror and average template image:
Check 90 degree rotations:
Minimum Target Size: Sets the smallest target size the camera will accept. Set this slightly smaller than
the actual printed target size.
Maximum Target Size: Sets the largest target size the camera will accept. Set this slightly larger than the
actual printed target size.
Threshold Percent: Accuracy percentage at which the camera picks up targets.
Calibration Cut Shape: Sets the targets shape when using the offset calibration. Default is round.
Calibration Shape Size: Sets the size of the target shape to cut when using the offset calibration.
Offset X,Y: Automatically set after the offset calibration is completed.
Pixels per inch X,Y: Automatically set after the resolution calibration is completed.
