CorelDRAW is a graphics software that offers the ability to print over vector and raster files directly
to KCAM through the Kern EMF Printer Driver. Files may also be saved as a .TIF or .PLT file and
opened directly into the KCAM software.
Important Notice Regarding Color Fills: When using CorelDRAW X5 and X6 please set the preset
for the default color management setting to “Simulate Color Management Off”.
Initial Setup
CorelDRAW will be setup correctly when you receive your laser system. If a fresh copy of CorelDRAW
is installed on your computer please use the below steps to get your default settings back.
1. Open CorelDRAW
2. Uncheck both boxes at bottom of the Quick Start screen. Close the Quick Start screen.
3. Click New Document, check do not show again in lower left. Click OK
4. Set Table size. (Width and Height will vary by machine)

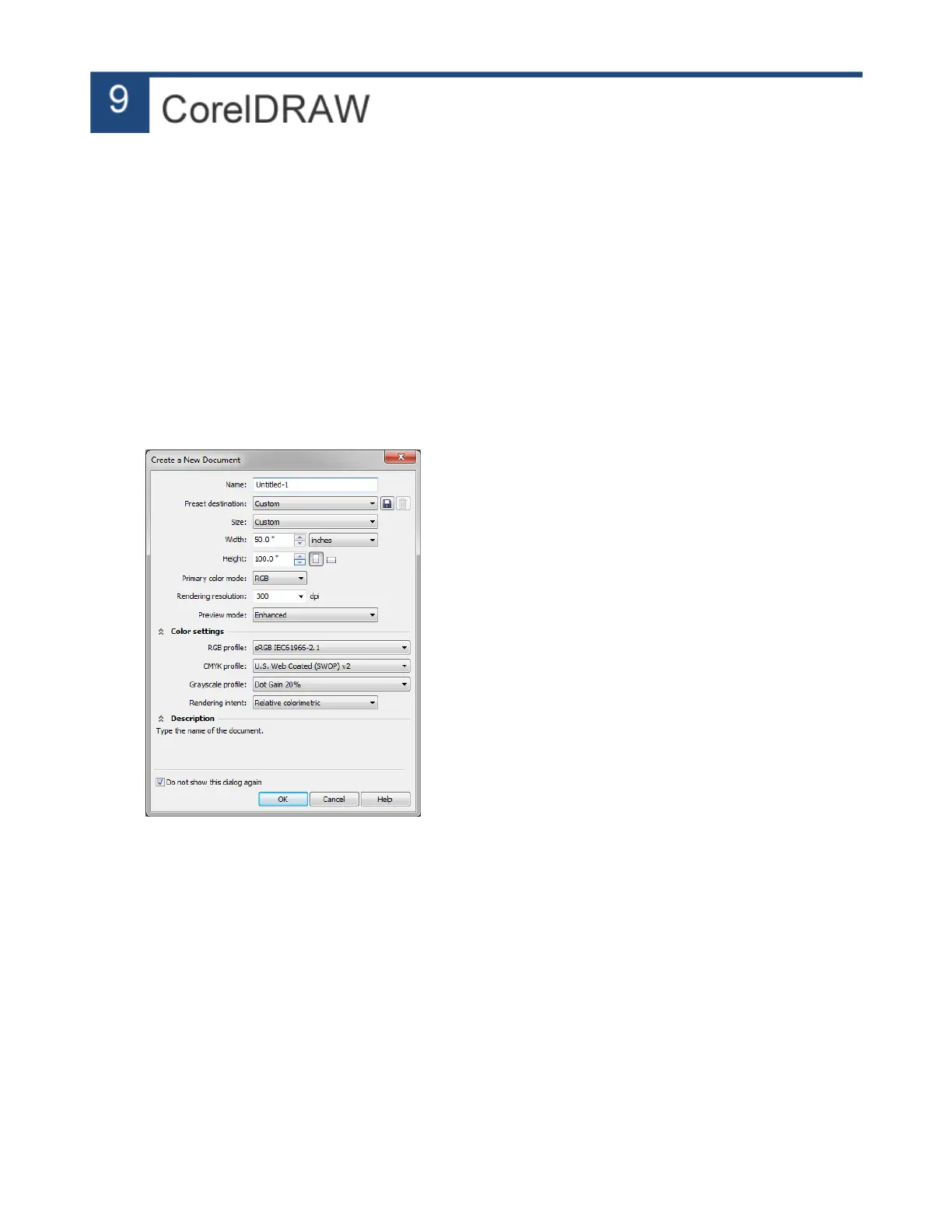

Create a New Document
5. Windows > Color Pallets > Select RGB Pallet.
6. Windows > Color Pallets > Unselect Default Pallet.
7. Tools > Color Management > Default Settings > Presets > Simulate Color Management Off
8. Click Tools > Options > Global > Printing > Driver Compatibility
9. Select the Kern EMF Printer and check the box Send Beziers and paths to driver.
10. Click OK.
11. Set Pen outline to Hairline > Tools > Save Settings as Default.
12. Close Document, Open new Document, Set Pen outline to Hairline > Tools > Save Settings as
Default. (Takes two times to apply)
13. Delete any objects from your screen, Tools > Save Settings as Default.
Kern EMF Printer Driver
The printer driver will be preinstalled on your machine and ready for use. If for any reason the
printer driver is not installed follow these steps to install the Kern EMF Printer Driver.
