20
EN
2.1 Description of the product
Viper Led is an electromechanical irreversible gear motor, suitable
to automate up and over doors up to 13 m
2
and sectional doors up
to 16 m
2
.
Viper has a built-in encoder, control unit and receiver.
The receiver has the possibility to select x or rolling code.
The rail is chain driven, pre-assembled in one or three pieces.
2 - PRODUCT OVERVIEW

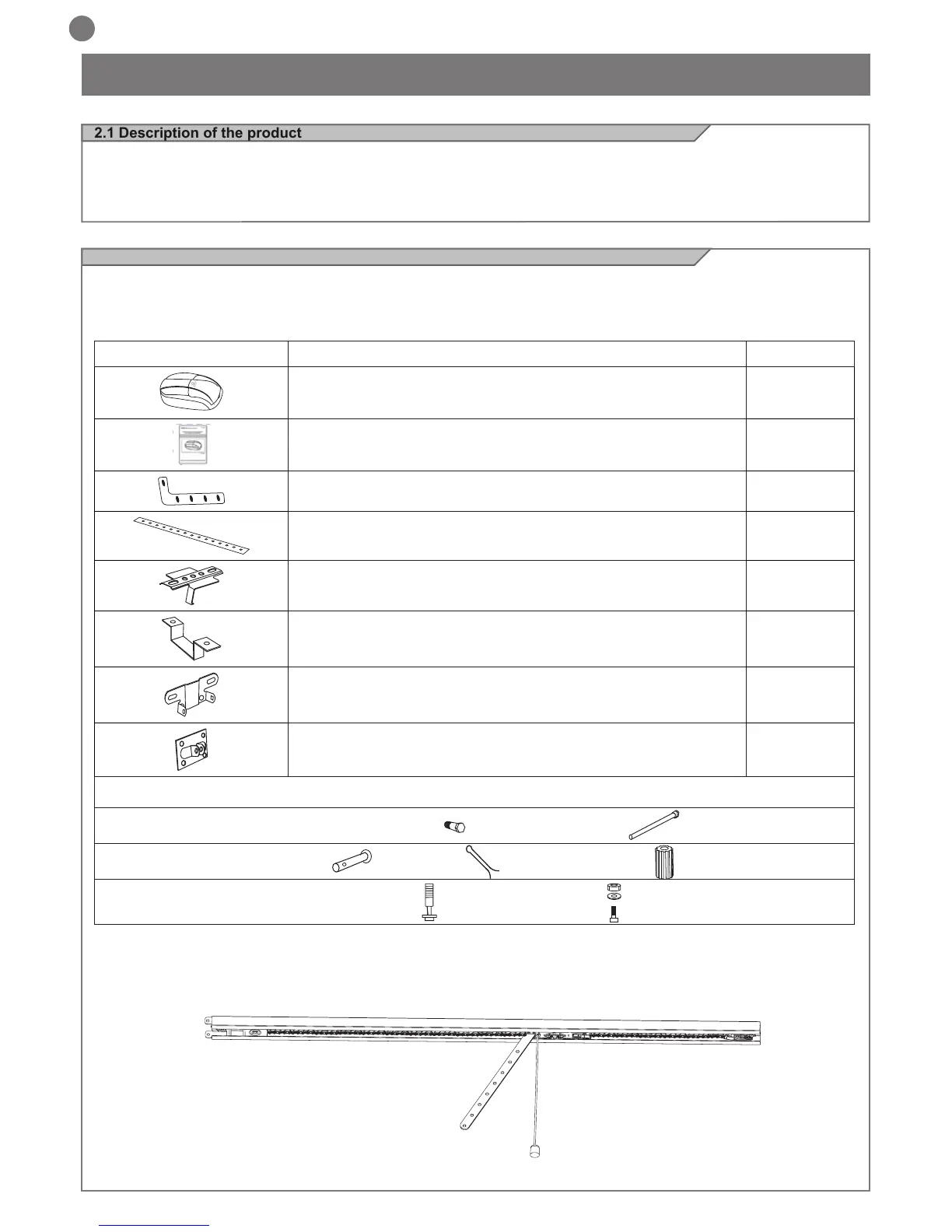

2.2 Composition
The system for garage door automation is composed of two boxes. One contains the package of the automation system; the other contains
the guide assembly, as shown in the illustration below.
Automation system package
Characteristic Name Quantity
Automation system 1
Manual 1
Curved arm for door 1
Mounting clamp 2
Support 1
U bracket 3
Support bracket 1
Door bracket 1
Package of various fastening devices
6x15 hex-head self-tapping screw (8x) 6x80 Screw with hex nut (1x)
8x25 Hinge pin (1x) 3x20 Split pin (1x) Lateral movement ring (1x)
6x80 Expansion plug (6x) 8x20 Screw with hex nut (4x)
Guide package
Pre-assembled guide
Guide (1 x) Straight arm for door (1 x)
Chain (1 x) Emergency cord (1 x)
Carriage (1 x)
